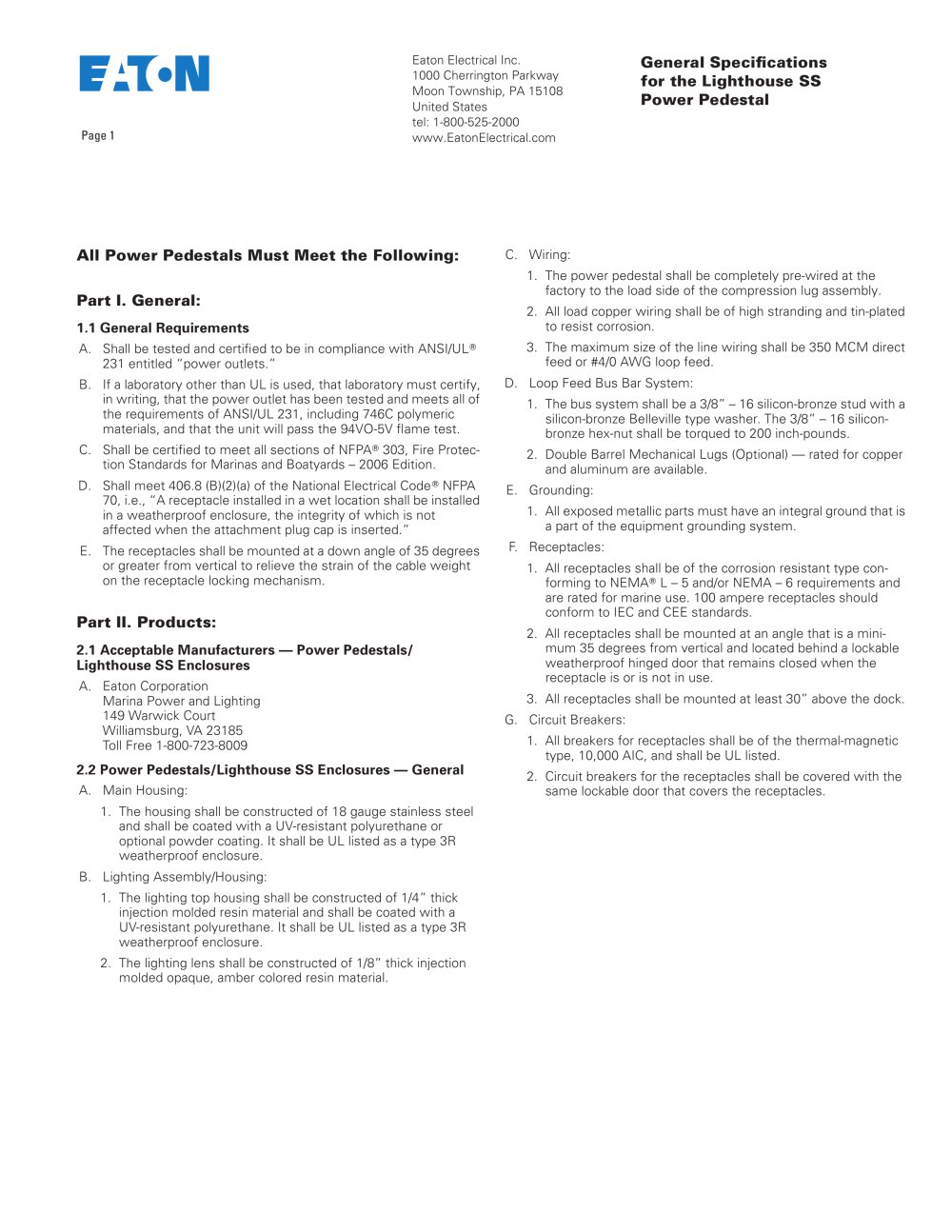

United States General Specifications Power Pedestal All Power Pedestals Must Meet the Following: A. Shall be tested and certified to be in compliance with ANSI/UL® 231 entitled "power outlets." B. If a laboratory other than UL is used, that laboratory must certify, in writing, that the power outlet has been tested and meets all of the requirements of ANSI/UL 231, including 746C polymeric materials, and that the unit will pass the 94VO-5V flame test. C. Shall be certified to meet all sections of NFPA® 303, Fire Protec- tion Standards for Marinas and Boatyards - 2006 Edition. D. Shall meet 406.8 (B)(2)(a) of the National Electrical Code® NFPA 70, i.e., "A receptacle installed in a wet location shall be installed in a weatherproof enclosure, the integrity of which is not affected when the attachment plug cap is inserted." E. The receptacles shall be mounted at a down angle of 35 degrees or greater from vertical to relieve the strain of the cable weight on the receptacle locking mechanism. 2.1 Acceptable Manufacturers — Power Pedestals/ Marina Power and Lighting 2.2 Power Pedestals/Lighthouse SS Enclosures — General 1. The housing shall be constructed of 18 gauge stainless steel and shall be coated with a UV-resistant polyurethane or optional powder coating. It shall be UL listed as a type 3R weatherproof enclosure. 1. The power pedestal shall be completely pre-wired at the factory to the load side of the compression lug assembly. 2. All load copper wiring shall be of high stranding and tin-plated 3. The maximum size of the line wiring shall be 350 MCM direct feed or #4/0 AW G loop feed. D. Loop Feed Bus Bar System: 1. The bus system shall be a 3/8" - 16 silicon-bronze stud with a silicon-bronze Belleville type washer. The 3/8" - 16 silicon- bronze hex-nut shall be torqued to 200 inch-pounds. 2. Double Barrel Mechanical Lugs (Optional) — rated for copper 1. All exposed metallic parts must have an integral ground that is a part of the equipment grounding system. 1. All receptacles shall be of the corrosion resistant type con- forming to NEMA® L - 5 and/or NEMA - 6 requirements and are rated for marine use. 100 ampere receptacles should 2. All receptacles shall be mounted at an angle that is a mini- mum 35 degrees from vertical and located behind a lockable weatherproof hinged door that remains closed when the 3. All receptacles shall be mounted at least 30" above the dock. 1. All breakers for receptacles shall be of the thermal-magnetic type, 10,000 AIC, and shall be UL listed. 2. Circuit breakers for the receptacles shall be covered with the same lockable door that covers the receptacles. 1. The lighting top housing shall be constructed of 1/4" thick njection molded resin material and shall be coated with a UV-resistant polyurethane. It shall be UL listed as a type 3R weatherproof enclosure. 2. The lighting lens shall be constructed of 1/8" thick injection molded opaque, amber colored resin material.

Open the catalog to page 1
Lighthouse SS specifications - 2

Eaton Electrical ine General Specifications 1000 Chemngton Parkway f th Lighthouse SS united states Power Pedestal 1. Each pedestal shall have brackets capable of holding a 50' length of 5/8" water hose or 50' of 50 amp 4 conductor boat 1. Receptacles for boat users shall be a locking and grounding type, either single-phase, 125 volt 30 amp and/or 50 amps, and 125/250 volt 50 and/or 100 amps. Three-phase 120/208 volt 100 amp, or three-phase 480 delta or wye 100 amps. 1. Each pedestal shall be equipped with a non-metered light. The light shall be a 13 watt fluorescent biaxial light that is...
