This document provides an overview of marine engine cooling systems, focusing on water-cooled marine petrol and diesel engines. It discusses the limitations of direct cooling and keel cooling, and highlights the advantages of heat exchanger cooling.
There are three primary methods for cooling marine engines: direct cooling, heat exchanger cooling, and keel cooling. Direct cooling with seawater is discouraged due to potential engine damage. Keel cooling is suitable for small boats but has limitations due to external pipework. Heat exchanger cooling is the most effective, isolating seawater in corrosion-resistant components.
Bowman heat exchangers are high-quality products with advanced materials and features. The tube stack is fully floating to minimize thermal stresses and can be easily removed for cleaning. The design ensures the system is self-venting and prevents aeration of the engine water circuit.
In marine engines, components in the seawater circuit are typically arranged in series. The gearbox-oil and engine-oil coolers are on the suction side of the seawater pump, while the heat exchanger and any seawater-cooled exhaust manifolds are on the discharge side. For turbocharged engines, the charge air cooler should receive seawater first to achieve the lowest possible air temperature.
A water-jacketed exhaust manifold is necessary to reduce engine-room air temperature. Bowman offers a combined water-jacketed exhaust manifold with a heat exchanger and header tank, suitable for small series-produced engines.
When converting automotive engines for marine use, the existing centrifugal pump should be retained for the freshwater circuit, and an additional pump should be fitted for the seawater circuit. The seawater pipe bore should be selected to maintain appropriate flow velocities.
Ensure the seawater outlet from the heat exchanger is from the upper connection to keep the tube stack full of water. The gearbox cooler size depends on the transmission type but is usually smaller than the engine-oil cooler. Freshwater-cooled oil coolers can be used but require larger sizes due to higher water temperatures.
Bowman provides comprehensive solutions for marine engine cooling, emphasizing the importance of proper installation and maintenance to ensure optimal performance and longevity of marine engines.
The document provides detailed specifications for various Bowman standard heat exchangers and charge air coolers, suitable for different engine types and capacities. It includes technical specifications, dimensions, and compatibility details for each model.
The document outlines standard dimensions and specifications for Bowman heat exchangers and charge air coolers, ensuring compatibility with various engine types, including British Leyland and Cummins engines.
The document suggests suitable models for specific engine capacities, ensuring optimal performance and compatibility.
A comprehensive list of global distributors is provided, including contact details for companies in various countries.
The document highlights specific models designed for British Leyland and Cummins engines, as well as other manufacturers like Ford, General Motors, Perkins, Peugeot, Mercedes, VW, Mitsubishi, and New Holland.
This document serves as a technical guide for selecting appropriate cooling systems for specific engine models, emphasizing the importance of tailored solutions for optimal engine performance.
Catalog excerpts

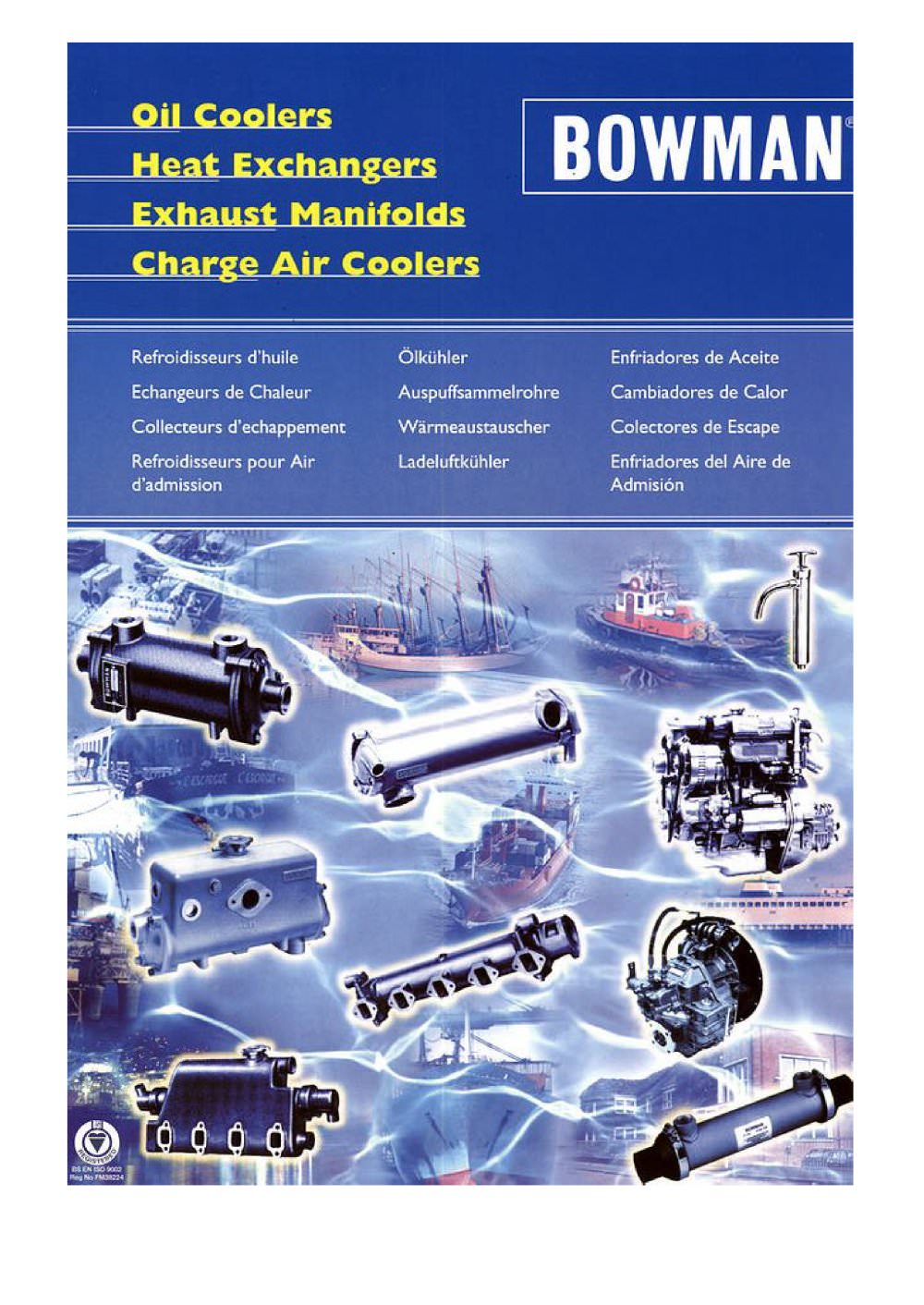

Refroidisseurs d'huile Qlkühler Echangeurs de Chaleur Auspuflsammelrohre Collecteurs d'échappement Warmeaustauscher Refroidisseurs pour Air Ladelufckühler
Open the catalog to page 1
Bowman index Page Introduction 2 Systems 1,2,3 6 Marine Engines 7 Bowman Standard Oil Coolers 10 Bowman Standard Heat Exchangers 12 Bowman Charge Air Coolers 14 Bowman Marine Stockists 15 British Leyland Rover 16 Cummins 17 Ford 18 General Motors 20 Perkins & Peugeot 21 Mercedes & VW 22 Mitsubishi/New Holland/ Genesis 23 Heat Exchanger Selection Charts 24 E. J. Bowman (Birmingham) Ltd Chester Street, Birmingham B6 4AP, England Tel: +44 (0) 121 359 5401 Fax: +44 (0) 121 359 7495 E-mail: [email protected] Web site: www.ejbowman.co.uk _____________________________________________________________________________________________________...
Open the catalog to page 2
Bowman Marine Engine Cooling There are three methods employed for water-cooled marine petrol and diesel engines: direct, heat exchanger and keel cooling. Direct cooling of the cylinders and heads by seawater is unsatisfactory, because the engine – which was probably originally designed for radiator cooling – will run too cold and the sea-water will eventually ruin the cylinder block and heads. Keel cooling is suitable for small boats operating in shallow weedy water, but the need for pipework external to the hull is a severe limitation. Heat exchanger cooling is the most common method, the seawater...
Open the catalog to page 3
Bowman Le Refroidissement des Moteurs Marins Le refroidissement des moteurs marins – à essence ou à diesel – étudiés pour être refroidis par eau s’effectue de trois manières: par circulation directe, par échangeur de chaleur ou par la quille. Le refroidissement des cylindres et culasses par circulation directe d’eau de mer est déconseillé du fait qu’il tend à refroidir excessivement les moteurs prévus pour refroidissement par radiateur, qui marchent alors à une température trop basse, et que l’eau de mer finira par attaquer et endommager le bloc-cylindres et la culasse. Le refroidissement par...
Open the catalog to page 4
Bowman Kühlung von Schiffsmotoren Zur Kühlung von wassergekühlten Schiffsmotoren werden drei Methoden angewendet: 1. direkte Kühlung 2. Wärmetauscher- und 3. Kielkühlung. muß eine kleine Beipassöffnung im Thermostaten vorgesehen sein, damit jederzeit etwas Wasser durch das Sammelrohr zirkulieren kann. Eine interessante E. J. Bowman Entwicklung kombiniert ein wassergekühltes Auspuffsammelrohr sowie den Motorwasserwärmetauscher und das Ausdehnungsgefäß; zu einem Kombikühler. Diese Anordnung eignet sich besonders für kleine, serienmäßig hergestellte Motoren. Bei diesem System wird das Sammelrohr...
Open the catalog to page 5
Bowman La refrigeración de los Motores Marinos Hay tres métodos que se emplean para los motores marinos En los motores marinos es necesario que haya un colector de gasolina y diesel refrigerados por agua: el directo, el de de escape con camisa de agua para reducir la temperatura intercambiador de calor y el de refrigeración por la quilla. del aire de la cámera de máquinas y la del tubo de escape. La refrigeración directa de los cilindros y culatas Si el colector de escape está en el circuito del agua de mar empleando el aqua del mar es insatisfactoria, pues el motor, debe instalarse con la entrada...
Open the catalog to page 6
Bowman SYSTEM 1 A typical arrangement showing the position of the heat exchanger, sea water cooled exhaust manifold and oil coolers on a marine engine. Disposition sur un moteur marin indiquant la position de l’échangeur de chaleur et du collecteur d’échappement à refroidissement par eau de mer et des refroidisseurs d’huile. Seawater Eau de mer Seewasser Agua de mar Oil Huile Öl Aceite Freshwater Eau douce Süsswasser Agua dulce Diese typische Einrichtung zeigt die Stellung des Wärmeaustauschers, des seewassergekühlten Auspuffsammelrohrs und der Ölkühler bei einem Schiffsmotor. Configuración típica,...
Open the catalog to page 7
Bowman A Perkins 4-108 marine engine fitted with a combined heat exchanger, header tank and water cooled exhaust manifold type PE180-3483. Moteur marin PERKINS 4-108 équipé d’un ensemble échangeur de chaleur, nourrice et collecteur d’échappement refroidi par eau type PE-180-3483. Ein PERKINS-4-108-Schiffs motor mit einer Spezialbaugruppe aus Wärmeaustauscher, Wasserkasten und wassergekühltem Auspuffsammelrohr Typ PE180-3483. Un motor marino PERKINS 4-108 con una combinación de intercambiador de calor, tanque elevado y colector de escape refrigerado por a gua, tipo PE180-3483. __________________________________________________________________________________________...
Open the catalog to page 8
Bowman (Below) A typical OIL COOLER showing the method of assembly. (Ci-dessous) Vue d’un refroidisseur d’huile montrant le mode d’assemblage. (Unten) Typischer Ölkühler mit Darstellung der Montage. (Abajo) Un enfriador de aceite típico mostrando el método de montaje. A MERCEDES BENZ OM314 marine engine fitted with a combined heat exchanger, header tank and water cooled exhaust manifold type MB380-3180. Moteur marin MERCEDES BENZ OM314 équipé d’un échangeur de chaleur, d’une nourrice et d’un collecteur d’échappement refroidi par eau combinés type MB3803180. Ein MERCEDES BENZ-Schiffsmotor OM314...
Open the catalog to page 9
Bowman A PERKINS 6-3544 marine engine fitted with combined heat exchanger, header tank and water cooled exhaust manifold type PE580-3676. Moteur marin PERKINS 6-3544 équipé d’un ensemble échangeur de chaleur, nourrice et collecteur d’échappement refroidi par eau type PE580-3676. Ein PERKINS-6-3544-Schiffsmotor mit einer Spezialbaugruppe aus Wärmeaustauscher, Wasserkasten und wassergekühltem Auspuffsammelrohr Typ PE580-3676. Un motor marino PERKINS 6-3544 con una combinación de intercambiador de calor tanque elevado y colector de escape refridgerado por agua, tipo PE580-3676. ______________________________________________________________________________________________________...
