DYNAWATT 5000
DYNAWATT 5000
- Output Voltage: 230 V AC +/- 5%, 1-Phase
- Output Frequency: 50 Hz +/- 0.5%
- Output Waveform: Sine wave
- Output Power: 5000 VA intermittent at 6000 rpm on generator, 4500 VA continuous
- Current: 22 A continuous, 64 A (2ms) surge
- Excitation: Internal, self-regulating
- Generator Speed: 13,000 rpm continuous, 15,000 rpm intermittent
- Weight: Control unit - 9 kg, Generator - 7.5 kg
- Protection Circuits: Over voltage, overload, over temperature, short circuit
- Intermittent power output is limited to 10 minutes per hour.
- Remote control with indicators and 7.5m cable
- Automatic power transfer switch
- Installation kits
Catalog excerpts

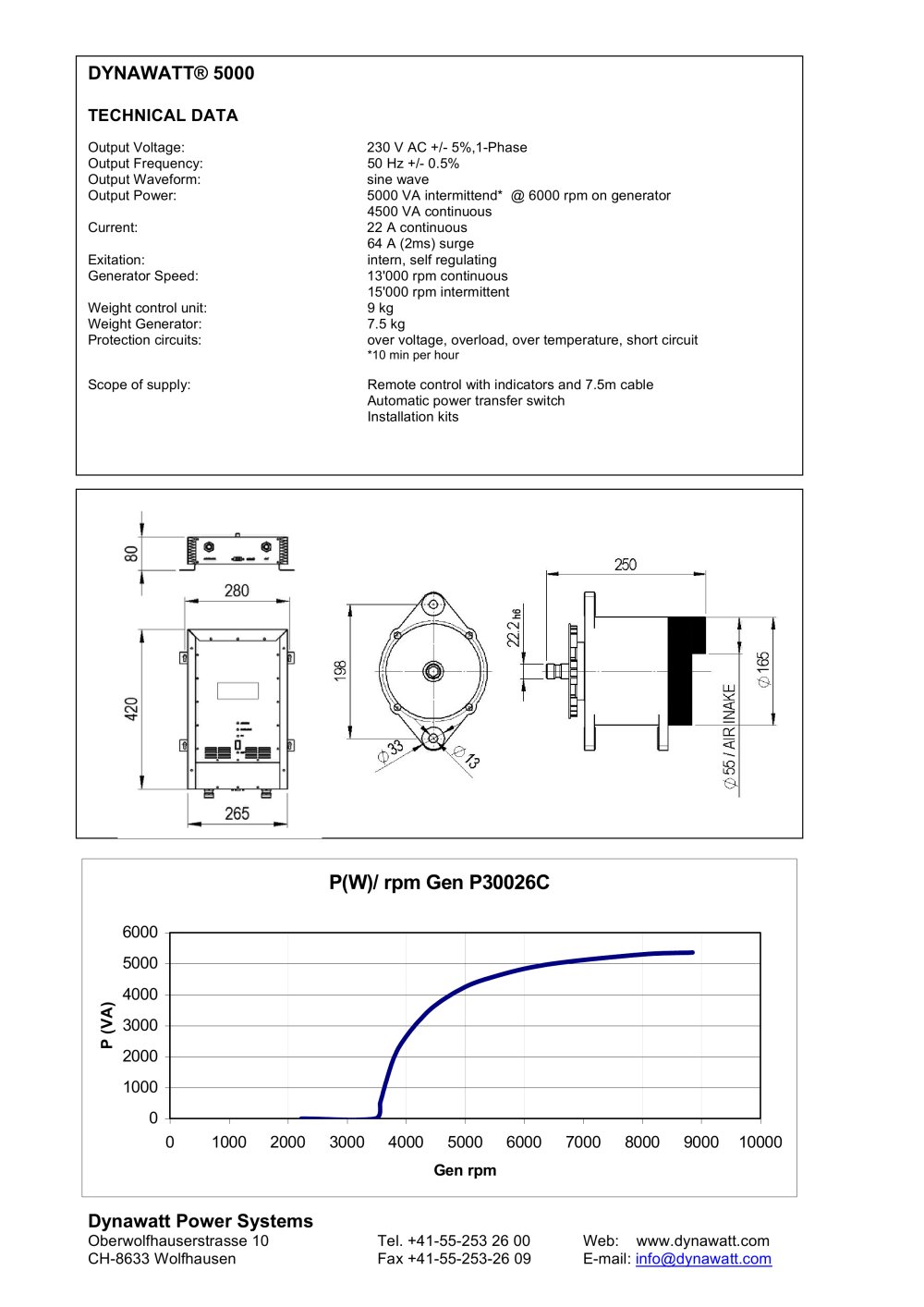

DYNAWATT® 5000 TECHNICAL DATA Output Voltage: Output Frequency: Output Waveform: Output Power: 230 V AC +/- 5%,1-Phase 50 Hz +/- 0.5% sine wave 5000 VA intermittend* @ 6000 rpm on generator 4500 VA continuous 22 A continuous 64 A (2ms) surge intern, self regulating 13'000 rpm continuous 15'000 rpm intermittent 9 kg 7.5 kg over voltage, overload, over temperature, short circuit Current: Exitation: Generator Speed: Weight control unit: Weight Generator: Protection circuits: *10 min per hour Scope of supply: Remote control with indicators and 7.5m cable Automatic power transfer switch Installation kits P(W)/ rpm Gen P30026C 6000 P (VA) 5000 4000 3000 2000 1000 0 0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 Gen rpm Dynawatt Power Systems Oberwolfhauserstrasse 10 CH-8633 Wolfhausen Tel. +41-55-253 26 00 Fax +41-55-253-26 09 Web: www.dynawatt.com E-mail: [email protected]
