DYNAWATT 4000
DYNAWATT 4000
- Output Voltage: 230V +/-5%, Single Phase
- Output Frequency: 50 Hz +/- 0.5%
- Output Waveform: Sine Wave
- Output Power: 4000 VA intermittent at 6000 rpm, 3500 VA continuous
- Current: 23 A continuous
- Excitation: Self-regulating
- Generator Speed: 15,000 rpm continuous, 18,000 rpm intermittent
- Weight: Control unit 7.8 kg, Generator 7.2 kg
- Protection Circuits: Overvoltage, Overload, Overtemperature, Short Circuit
- Intermittent operation is limited to 15 minutes per hour.
- Remote control with 7.5m cable
- Soft start feature
- Automatic switch to shore power
The output power graph indicates the relationship between generator speed (rpm) and output power, showing a range from 2500 to 7500 rpm with corresponding power outputs.
Contact Information:Dynawatt Power Systems, Oberwolfhauserstrasse 10, CH-8633 Wolfhausen, Tel. +41-55-253 26 00, Fax +41-55-253-26 09, Web: www.dynawatt.com, E-mail: [email protected]
Catalog excerpts

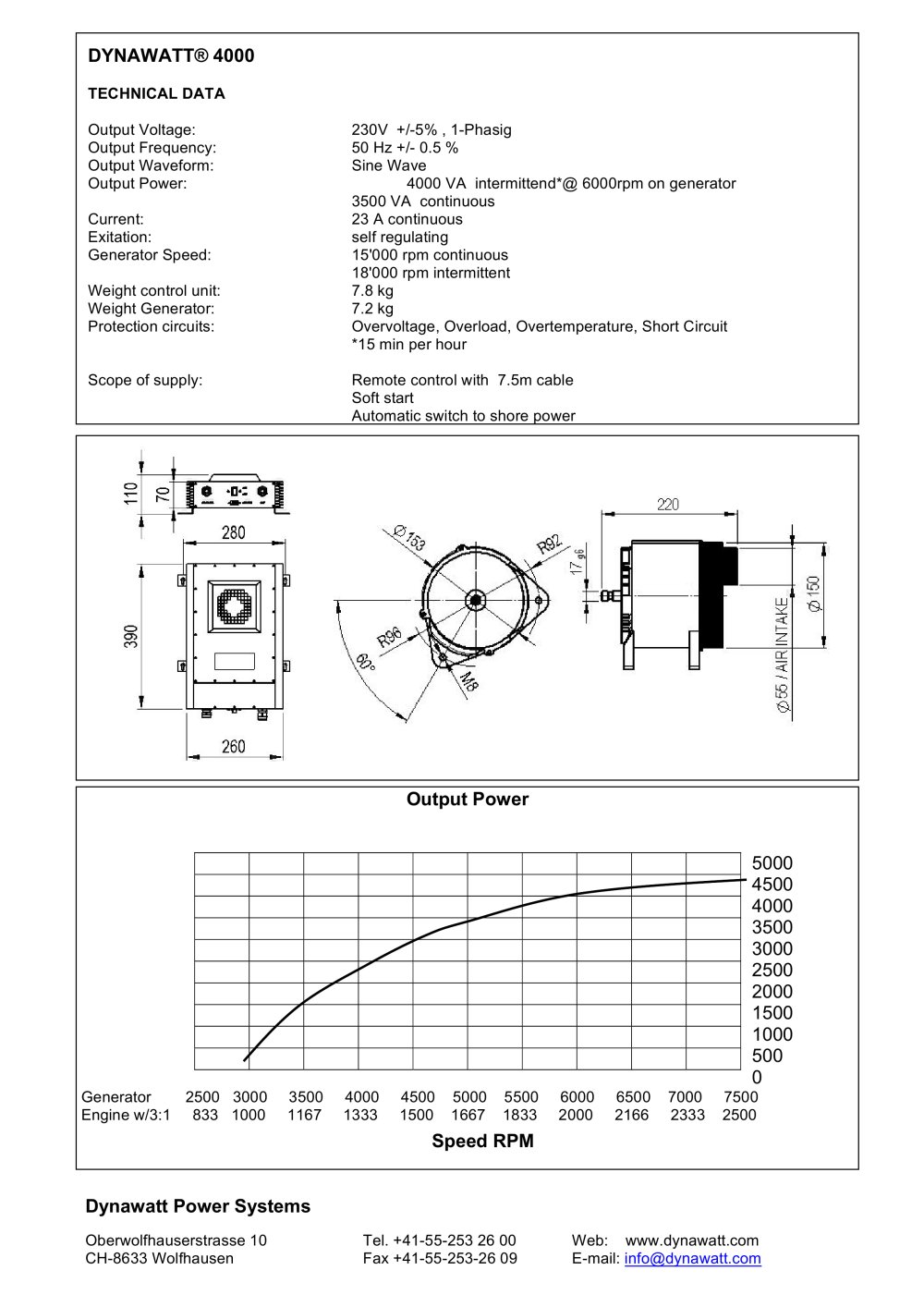

DYNAWATT® 4000 TECHNICAL DATA Output Voltage: Output Frequency: Output Waveform: Output Power: 230V +/-5% , 1-Phasig 50 Hz +/- 0.5 % Sine Wave 4000 VA intermittend*@ 6000rpm on generator 3500 VA continuous 23 A continuous self regulating 15'000 rpm continuous 18'000 rpm intermittent 7.8 kg 7.2 kg Overvoltage, Overload, Overtemperature, Short Circuit *15 min per hour Current: Exitation: Generator Speed: Weight control unit: Weight Generator: Protection circuits: Scope of supply: Remote control with 7.5m cable Soft start Automatic switch to shore power Output Power Power Watt 5000 4500 4000 3500 3000 2500 2000 1500 1000 500 0 Generator 2500 3000 Engine w/3:1 833 1000 3500 1167 4000 1333 4500 5000 5500 1500 1667 1833 6000 2000 6500 2166 7000 2333 7500 2500 Speed RPM Dynawatt Power Systems Oberwolfhauserstrasse 10 CH-8633 Wolfhausen Tel. +41-55-253 26 00 Fax +41-55-253-26 09 Web: www.dynawatt.com E-mail: [email protected]
