DYNAWATT 2000
DYNAWATT 2000
The DYNAWATT® 2000 Power System is designed to generate precise electrical power from an engine, independent of RPM. It is suitable for use with various electronic devices and appliances, including sophisticated electronic equipment, digital controls, power tools, TVs, video systems, on-board electric cookers, microwave cookers, small air conditioning units, and battery chargers.
The system includes an engine-mounted belt-driven generator, a solid-state A.C. power unit, and all necessary cabling. It features remote control capabilities and comes with a 2-meter connecting cable. Notably, the system does not require additional battery power.
- High power output at low engine RPM
- High-quality AC output
- Frequency independent of engine RPM
- High reliability
- Compact and lightweight (15 kg)
- Safe with galvanic separation
- Easy installation and operation
- Maintenance-free and silent operation
The performance curve indicates high output at low engine RPM, with specific power outputs at various RPM levels.
- Output Voltage: 230V +/-5%, single phase
- Output Frequency: 50 Hz +/- 0.5%
- Output Waveform: Sine wave
- Output Power: 2300 VA intermittent at 4200 RPM, 2100 VA continuous
- Current: 9 A continuous
- Excitation: Self-regulating
- Generator Speed: 15,000 RPM continuous, 18,000 RPM intermittent
- Weight: Control unit 7.0 kg, Generator 7.2 kg
- Protection Circuits: Over voltage, overload, over temperature, short circuit
The package includes a control unit, generator with a 4-meter connecting cable and pulley, and a remote control with a 2-meter RJ45 cable.
DYNAWATT Power Systems, Oberwolfhauserstrasse 10, CH-8633 Wolfhausen, Tel. +41-55-253 26 00, Fax +41-55-253-26 09, Web: www.dynawatt.com, E-mail: [email protected]
Catalog excerpts

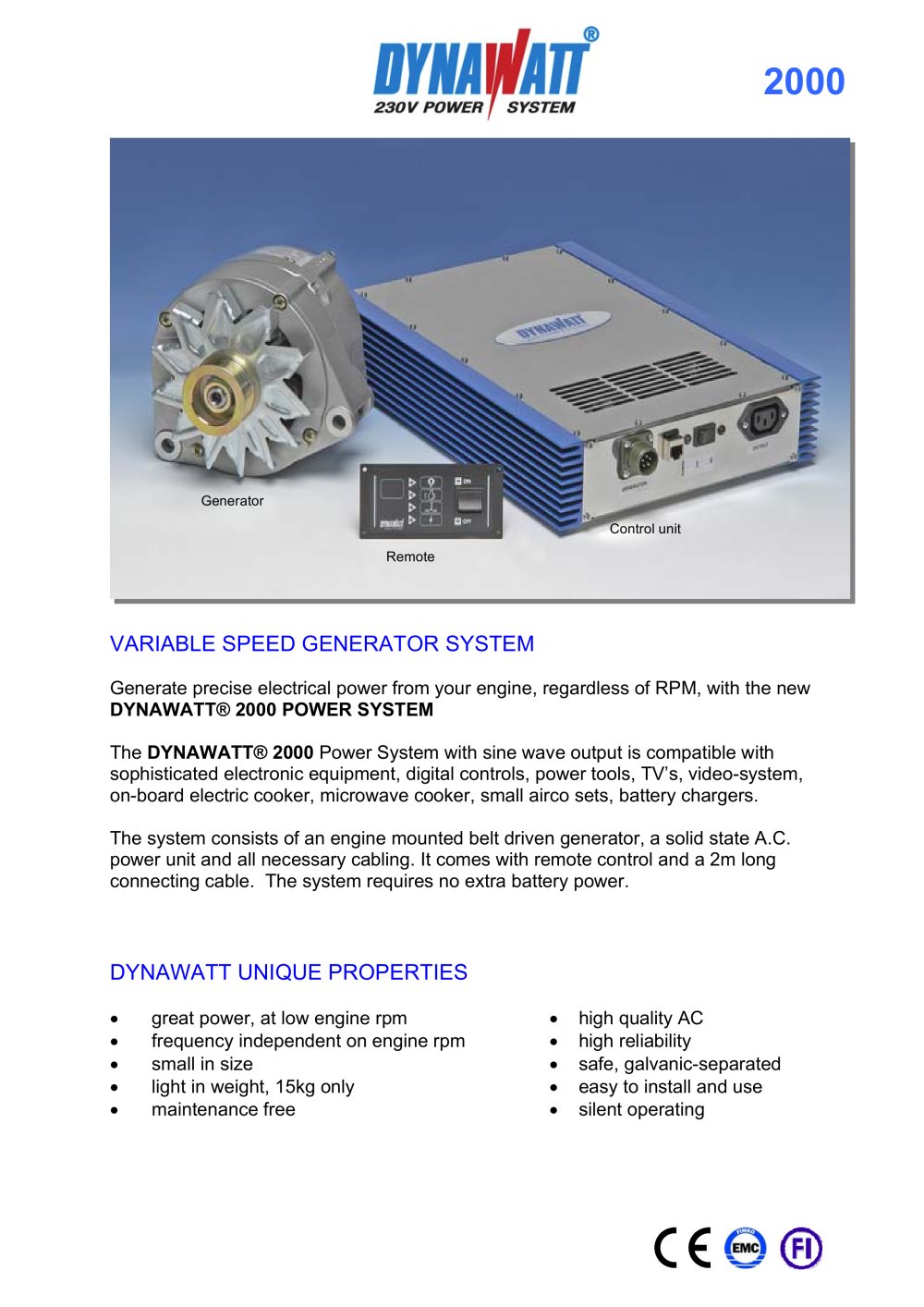

2000 Generator Control unit Remote VARIABLE SPEED GENERATOR SYSTEM Generate precise electrical power from your engine, regardless of RPM, with the new DYNAWATT® 2000 POWER SYSTEM The DYNAWATT® 2000 Power System with sine wave output is compatible with sophisticated electronic equipment, digital controls, power tools, TV’s, video-system, on-board electric cooker, microwave cooker, small airco sets, battery chargers. The system consists of an engine mounted belt driven generator, a solid state A.C. power unit and all necessary cabling. It comes with remote control and a 2m long connecting cable. The system requires no extra battery power. DYNAWATT UNIQUE PROPERTIES • • • • • great power, at low engine rpm frequency independent on engine rpm small in size light in weight, 15kg only maintenance free • • • • • high quality AC high reliability safe, galvanic-separated easy to install and use silent operating
