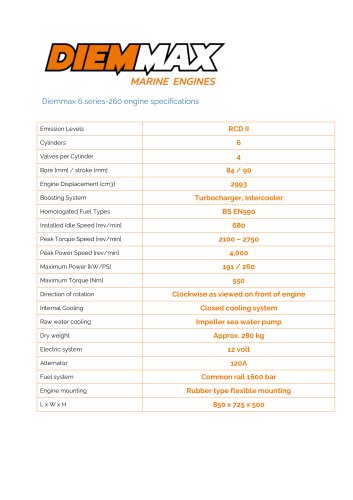

Diemmax 6 series-260 engine specifications

Product catalog summary
Engine Specifications:
  • Emission Levels: RCD II
  • Cylinders: 6
  • Valves per Cylinder: 4
  • Bore/Stroke: 84 mm / 90 mm
  • Engine Displacement: 2993 cm3
  • Boosting System: Turbocharger, Intercooler
  • Homologated Fuel Types: BS EN590
  • Installed Idle Speed: 680 rev/min
  • Peak Torque Speed: 2100 – 2750 rev/min
  • Peak Power Speed: 4000 rev/min
  • Maximum Power: 191 kW / 260 PS
  • Maximum Torque: 550 Nm
  • Direction of Rotation: Clockwise as viewed on front of engine
  • Internal Cooling: Closed cooling system
  • Raw Water Cooling: Impeller sea water pump
  • Dry Weight: Approx. 280 kg
  • Electric System: 12 volt
  • Alternator: 120A
  • Fuel System: Common rail 1600 bar
  • Engine Mounting: Rubber type flexible mounting
  • Dimensions (L x W x H): 850 x 725 x 500 mm
See more

All Diemmax marine catalogs and brochures

  1. Diemmax 6 series-220 engine specifications
    Diemmax 6 series-220 engine specifications

    1  Page

  2. Diemmax 6 series-180 engine specifications
    Diemmax 6 series-180 engine specifications

    1  Page

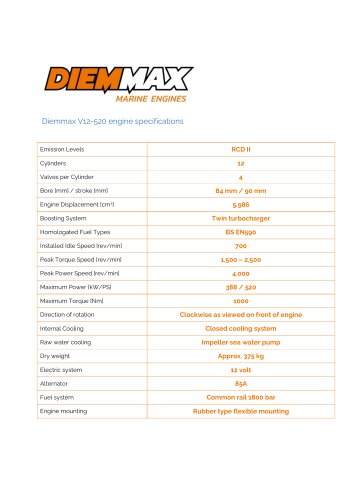

  3. Diemmax V12-520 engine specifications
