DSB 5.1SR

DSB 5.1SR

Product catalog summary
Specifications:
  • Length Overall: 5.10 meters
  • Length Inside: 4.08 meters
  • Beam Overall: 2.05 meters
  • Beam Inside: 1.15 meters
  • Weight: 250 kg
  • Capacity: 13 persons
  • Payload: 1300 kg
  • Tube Diameter: 45 cm
  • Air Compartments: 5
  • Material: Hypalon/Neoprene and Aluminium
  • Max Motorization: 73.5 kW / 100 PS
  • Engine Type: Long shaft engines
Construction and Features:
  • The boat features a heavy-duty, seawater-resistant aluminium hull with a frame and stringer construction.
  • The deck is made of anti-skid aluminium, ensuring safety and durability.
  • The buoyancy tube is crafted from UV-resistant Hypalon/Neoprene, with independent air compartments for enhanced safety.
  • Valves are integrated flush into the tube to minimize injury risk.
  • Customization options are available for accessories such as reinforcements, handles, and rope sets.
  • The interior design is spacious, with an additional front section of the buoyancy tube for improved utility.
  • Various customization options are available for different equipment configurations.
See more

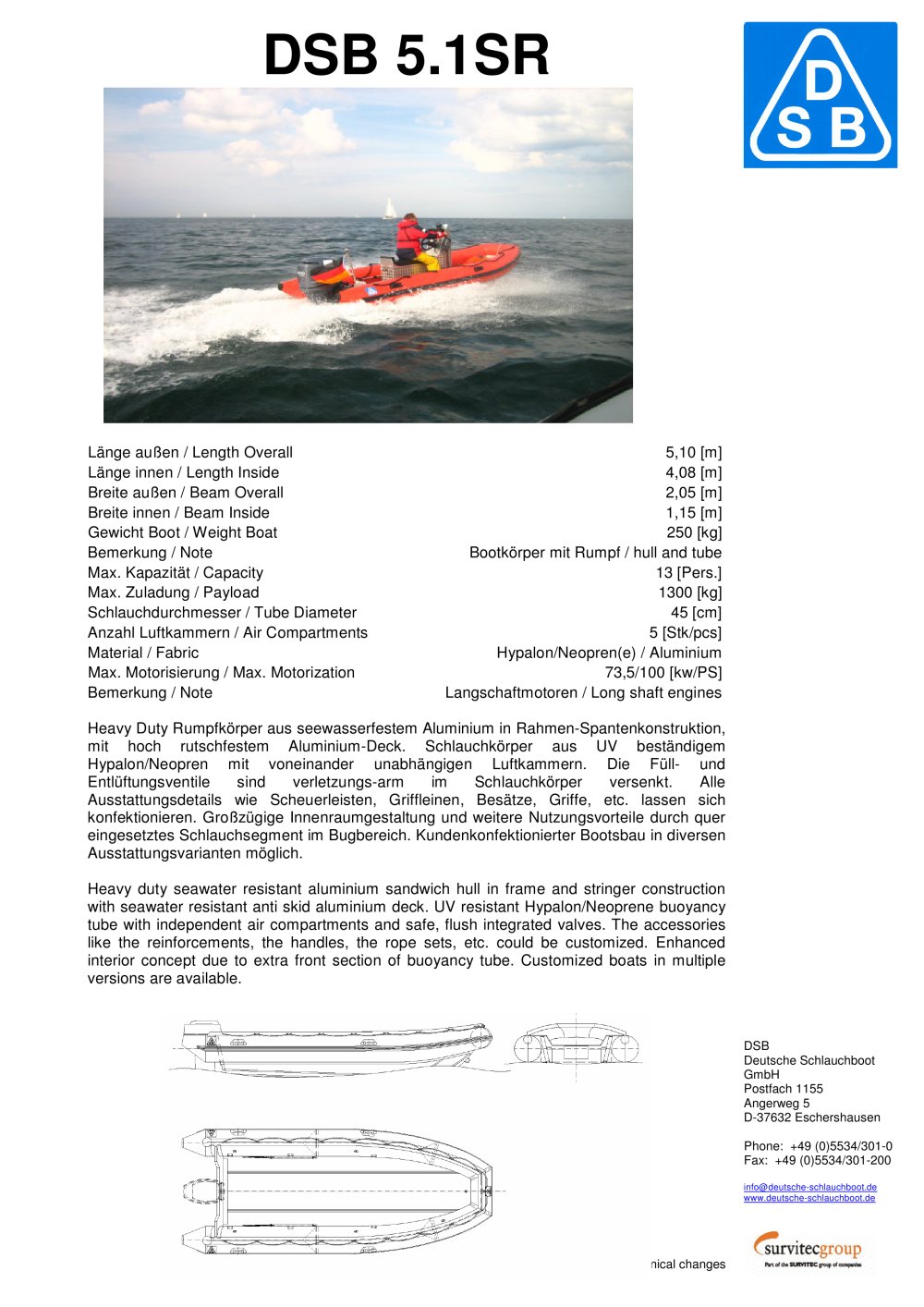

Catalog excerpts

DSB 5.1SR-1

Lange au Ben / Length Overall Lange innen / Length Inside Breite au Ben / Beam Overall Breite innen / Beam Inside Gewicht Boot / Weight Boat Bemerkung / Note Schlauchdurchmesser / Tube Diameter Anzahl Luftkammern / Air Compartments Material / Fabric Bemerkung / Note Bootkörper mit Rumpf / hull and tube Hypalon/Neopren(e) / Aluminium Langschaftmotoren / Long shaft engines Heavy Duty Rumpfkörper aus seewasserfestem Aluminium in Rahmen-Spantenkonstruktion, mit hoch rutschfestem Aluminium-Deck. Schlauchkörper aus UV bestandigem Hypalon/Neopren mit voneinander unabhàngigen Luftkammern. Die Füll- und Entlüftungsventile sind verletzungs-arm im Schlauchkörper versenkt. Alle Ausstattungsdetails wie Scheuerleisten, Griffleinen, Besàtze, Griffe, etc. lassen sich konfektionieren. GroBzügige Innenraumgestaltung und weitere Nutzungsvorteile durch quer eingesetztes Schlauchsegment im Bugbereich. Kundenkonfektionierter Bootsbau in diversen Ausstattungsvarianten möglich. Heavy duty seawater resistant aluminium sandwich hull in frame and stringer construction with seawater resistant anti skid aluminium deck. UV resistant Hypalon/Neoprene buoyancy tube with independent air compartments and safe, flush integrated valves. The accessories like the reinforcements, the handles, the rope sets, etc. could be customized. Enhanced interior concept due to extra front section of buoyancy tube. Customized boats in multiple nical changes Deutsche Schlauchboot

 Open the catalog to page 1
