DSB 420GP

Product catalog summary

Specifications:

Length Overall: 4.20 m
Length Inside: 2.93 m
Beam Overall: 1.80 m
Beam Inside: 0.89 m
Weight: 43 kg
Dimensions Stowed Boat: 130x60x35 cm
Dimensions Stowed Standard Equipment: 115x70x20 cm
Max Capacity: 7 persons
Max Payload: 900 kg
Tube Diameter: 46 cm
Air Compartments: 3 pcs
Fabric: Hypalon
Max Motorization: 37/50 kw/PS
General Note: Inflatable Keel

Features:

Constructed from UV-resistant Hypalon with independent air compartments.
Flush integrated valves for safety.
Customizable accessories including reinforcements, handles, and rope sets.
Enhanced interior design with an additional front buoyancy tube section.
Available in versions with wooden or aluminium floorboards.
Customizable in various configurations.

General Description:

The DSB 420 GP is a robust and heavy-duty inflatable boat designed for multifunctional use. It features a durable construction with a UV-resistant Hypalon skin and independent air compartments for safety. The boat's design includes customizable elements such as reinforcements and handles, and it offers an enhanced interior layout due to an additional front buoyancy tube section. Available in different sizes and variations, the boat can be equipped with either wooden or aluminium floorboards, and it supports customization to meet specific customer needs.

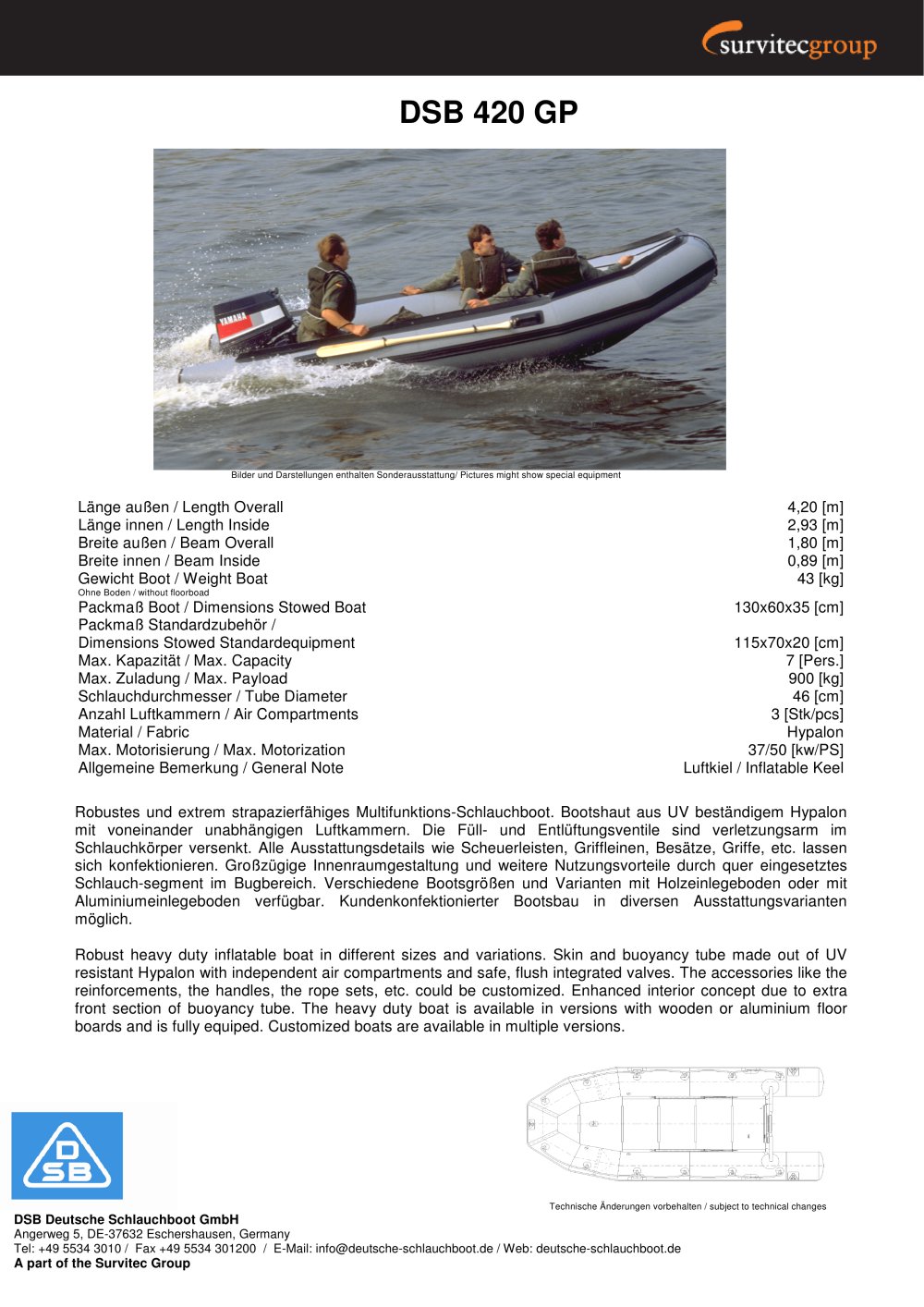

Catalog excerpts

Bilder und Darstellungen enthalten Sonderausstattung/ Pictures might show special equipment Länge außen / Length Overall Länge innen / Length Inside Breite außen / Beam Overall Breite innen / Beam Inside Gewicht Boot / Weight Boat Ohne Boden / without floorboad Packmaß Boot / Dimensions Stowed Boat Packmaß Standardzubehör / Dimensions Stowed Standardequipment Max. Kapazität / Max. Capacity Max. Zuladung / Max. Payload Schlauchdurchmesser / Tube Diameter Anzahl Luftkammern / Air Compartments Material / Fabric Max. Motorisierung / Max. Motorization Allgemeine Bemerkung / General Note 130x60x35 [cm] 115x70x20 [cm] 7 [Pers.] 900 [kg] 46 [cm] 3 [Stk/pcs] Hypalon 37/50 [kw/PS] Luftkiel / Inflatable Keel Robustes und extrem strapazierfähiges Multifunktions-Schlauchboot. Bootshaut aus UV beständigem Hypalon mit voneinander unabhängigen Luftkammern. Die Füll- und Entlüftungsventile sind verletzungsarm im Schlauchkörper versenkt. Alle Ausstattungsdetails wie Scheuerleisten, Griffleinen, Besätze, Griffe, etc. lassen sich konfektionieren. Großzügige Innenraumgestaltung und weitere Nutzungsvorteile durch quer eingesetztes Schlauch-segment im Bugbereich. Verschiedene Bootsgrößen und Varianten mit Holzeinlegeboden oder mit Aluminiumeinlegeboden verfügbar. Kundenkonfektionierter Bootsbau in diversen Ausstattungsvarianten möglich. Robust heavy duty inflatable boat in different sizes and variations. Skin and buoyancy tube made out of UV resistant Hypalon with independent air compartments and safe, flush integrated valves. The accessories like the reinforcements, the handles, the rope sets, etc. could be customized. Enhanced interior concept due to extra front section of buoyancy tube. The heavy duty boat is available in versions with wooden or aluminium floor boards and is fully equiped. Customized boats are available in multiple versions. Technische Änderungen vorbehalten / subject to technical changes DSB Deutsche Schlauchboot GmbH Angerweg 5, DE-37632 Eschershausen, Germany Tel: +49 5534 3010 / Fax +49 5534 301200 / E-Mail: [email protected] / Web: deutsche-schlauchboot.de A part of the Survitec Group
