DUS CV compact USV platform

Product catalog summary

Overview
The DUS CV compact USV platform is designed for professional data acquisition in challenging aquatic environments such as shallow, confined, and hard-to-access waters. It features autonomous navigation and flexible payload integration, making it suitable for hydrographic, environmental, and asset management data collection.

Design and Specifications
The platform has a shallow-draft, low-profile 1.90 m hull made from HDPE and marine-grade aluminum. It is equipped with a patented Dynamic Positioning system for precise control in confined waters and a rugged design inspired by military-grade flight cases.

Key Features

Impact-resistant single-lid HDPE hull
Central access to payload and vessel systems
Standardized vessel architecture for modular payload capability

Dimensions and Performance

Length Overall (L.O.A.): 1.90 m
Breadth: 0.60 m
Height: 0.75 m
Max Speed: 4.5 knots
Endurance: Up to 43 km or 10 hours at 2.3 knots
Seaworthiness: Sea state 3

Power and Propulsion

Bow Thruster: 1x 3 kW direct rim driven
Main Thrusters: 2x 3 kW direct rim driven
Power: 1x 3.5 kWh lithium battery
Fast Charger: 1700 W, charges in under 2 hours

Communication and Navigation

Data Links: Dual 4/5 G LTE modems, Wi-Fi 6
Navigation: GNSS INS Dual antenna, ENC interface
Situational Awareness: AIS Class B, 360° Daylight camera, 32 line LiDAR

Payloads and Integration

Powerbocks and network switch for third-party integrations
Moonpool for various sensor/robotic system payloads

Remote Operations and Safety Systems

Wireless control unit and ROC boxes for remote operations
Emergency stop systems and redundant safety features

Software

Demcon Uncrewed Mission Software for mission planning and execution
Advanced Control & Navigation System for manual and autonomous navigation
Safety System for emergency handling and obstacle avoidance
Logging & Monitoring Software for data logging and diagnostics

Contact Information
For more information, contact [email protected] or call +31 (0)88 1152000.

Catalog excerpts

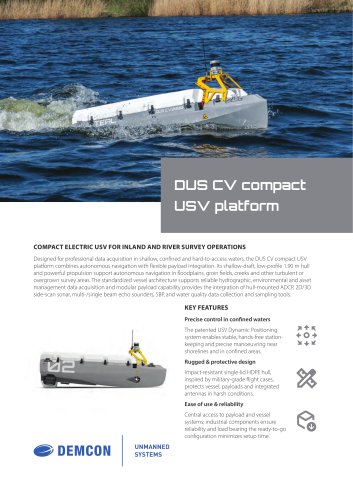

DUS CV compact USV platform COMPACT ELECTRIC USV FOR INLAND AND RIVER SURVEY OPERATIONS Designed for professional data acquisition in shallow, confined and hard-to-access waters, the DUS CV compact USV platform combines autonomous navigation with flexible payload integration. Its shallow-draft, low-profile 1.90 m hull and powerful propulsion support autonomous navigation in floodplains, groin fields, creeks and other turbulent or overgrown survey areas. The standardized vessel architecture supports reliable hydrographic, environmental and asset management data acquisition and modular payload capability provides the integration of hull-mounted ADCP, 2D/3D side-scan sonar, multi-/single beam echo sounders, SBP, and water quality data collection and sampling tools. KEY FEATURES Precise control in confined waters The patented USV Dynamic Positioning system enables stable, hands-free stationkeeping and precise manoeuvring near shorelines and in confined areas. Rugged & protective design Impact-resistant single-lid HDPE hull, inspired by military-grade flight cases, protects vessel, payloads and integrated antennas in harsh conditions. Ease of use & reliability Central access to payload and vessel systems; industrial components ensure reliability and load bearing the ready-to-go configuration minimizes setup time.

Open the catalog to page 1

1x 3.5 kWh lithium battery 1700 W (230 V), 0-100% in <2 hours Primary GNSS INS Dual antenna (0.015° Roll&Pitch 0.05° Heading), ENC interface (ADMIRALTY Vector Chart Service Online) Masthead (white), sidelights (green/red) AIS Class B, 360° Daylight camera (4 sensors), 32 line LiDAR Cellular: 2 x dual 4/5 G LTE modems, LOS: Wi-Fi 6 AIS Class B/A (VDES), VHF/UHF radio (VOIP), 1x WAN (Auto) load balancing, 1x Ethernet network, Cyber security Moonpool: Moonpool size: Winch: MAIN PARTICULARS Hull material: HDPE & Aluminium (marine grade) Structural design & Load bearing hull (no cradle needed), layout:...
