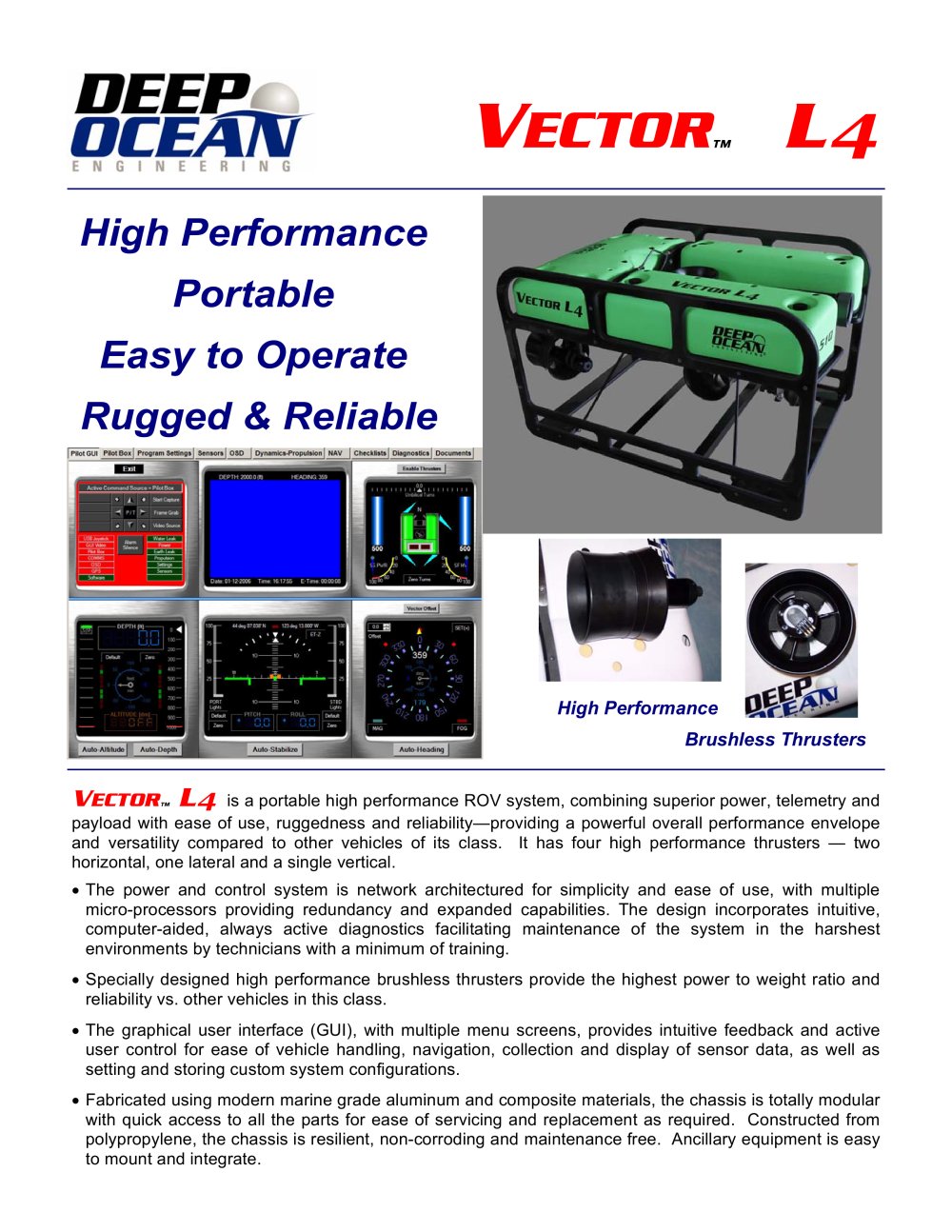

Vector L4 Brochure - 1

High Performance Rugged & Reliable I Pilai GUI Pio*BoxI Progni «»gi| a*raort| o BP [ Dynrtci^ropuniM] HAV | cnnnaj pugna—| Docnwn| Brushless Thrusters Í/ECTOR,, i-4 ¡s 3 portable high performance ROV system, combining superior power, telemetry and payload with ease of use, ruggedness and reliability—providing a powerful overall performance envelope and versatility compared to other vehicles of its class. It has four high performance thrusters — two horizontal, one lateral and a single vertical. • The power and control system is network architectured for simplicity and ease of use, with multiple micro-processors providing redundancy and expanded capabilities. The design incorporates intuitive, computer-aided, always active diagnostics facilitating maintenance of the system in the harshest environments by technicians with a minimum of training. • Specially designed high performance brushless thrusters provide the highest power to weight ratio and reliability vs. other vehicles in this class. • The graphical user interface (GUI), with multiple menu screens, provides intuitive feedback and active user control for ease of vehicle handling, navigation, collection and display of sensor data, as well as setting and storing custom system configurations. • Fabricated using modern marine grade aluminum and composite materials, the chassis is totally modular with quick access to all the parts for ease of servicing and replacement as required. Constructed from polypropylene, the chassis is resilient, non-corroding and maintenance free. Ancillary equipment is easy

Open the catalog to page 1
Vector L4 Brochure - 2

Standard working depth: Vehicle Length: Vehicle Width: Vehicle Height: Thrust Forward: Thrust Lateral: Thrust Vertical: Chassis: A modular chassis manufactured from polypropylene. This extremely rugged material is maintenance free, self-supporting in water and non-corroding — providing the vehicle with an energy absorbing protective framework. Ancillary equipment are easily mounted on the frames and bottom panel. Propulsion: Fully pressure compensated, high performance DC brushless thrusters. The high torque, gearless thruster design is highly robust and quiet. A hydrodynamic nozzle...

Open the catalog to page 2
