Phantom DHD2+2

Product catalog summary

Overview: The Phantom® DHD2+2 is a robust Remotely Operated Vehicle (ROV) designed for deep and strong current environments, capable of operating at depths up to 600 meters (2000 feet). It is suitable for a variety of applications including inspections, surveys, and recovery operations.

Applications: The ROV is versatile, supporting tasks such as outfall/intake inspections, mooring and anchor chain monitoring, telecommunication cable inspection, mine countermeasures, body and evidence recovery, oceanographic surveys, fisheries research, environmental surveys, and marine archaeology.

Specifications: The vehicle weighs 132 kg (285 lb) and measures 1400 mm in length, 686 mm in width, and 673 mm in height. It offers forward thrust capabilities of 68 kg (normal) and 91 kg (full), with lateral and vertical thrusts of 7 kg each. The payload capacity is 5 kg with a lateral thruster fitted.

Power and Instrumentation: The ROV requires an input voltage of 100-250 VAC and a power rating of 6 kVA. It features tungsten-halogen lights, a high-resolution color camera with 18:1 optical zoom, and various instrumentation including a fluid-gimbaled fluxgate compass and electronic depth gauge.

Features: The Phantom® DHD2+2 boasts superb video quality with a ±90° camera tilt, a hardwired control system for easy troubleshooting, and a shock-mounted stainless steel crash frame for durability. It also offers enhanced stability with a low center of gravity and torque-balanced horizontal thrusters.

Options and Customization: The ROV can be equipped with additional components such as sonar, navigation and tracking systems, extra cameras and lights, and customized buoyancy. It also supports interchangeable components with DOE Phantom Spectrum vehicles.

Company Background: Deep Ocean has over 25 years of experience in the ROV industry, having delivered over 500 systems to clients in more than 30 countries. The company is known for its strong, resilient system designs and dedicated customer service.

Catalog excerpts

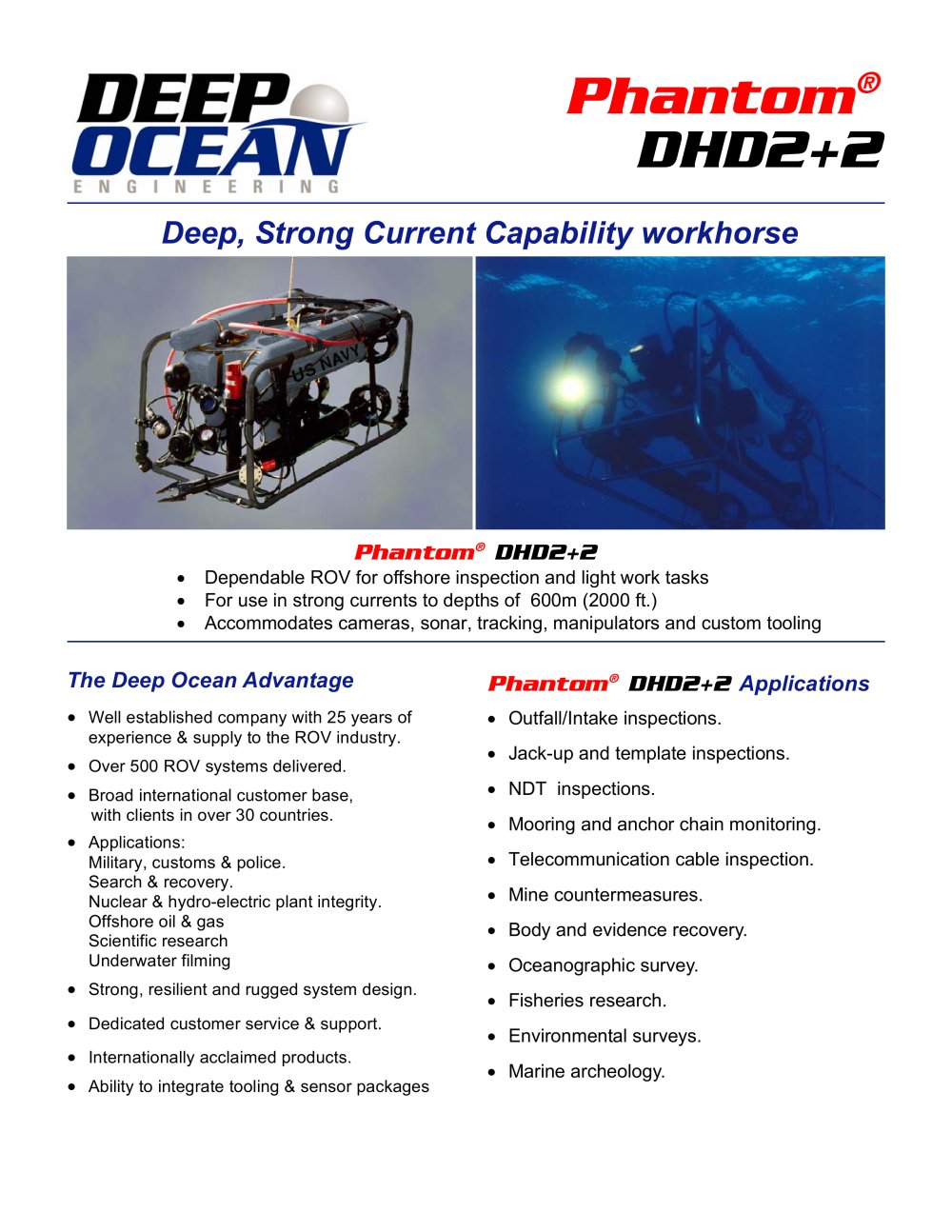

Deep, Strong Current Capability workhorse Phantom® DHDB+B • Dependable ROV for offshore inspection and light work tasks • For use in strong currents to depths of 600m (2000 ft.) • Accommodates cameras, sonar, tracking, manipulators and custom tooling The Deep Ocean Advantage • Well established company with 25 years of experience & supply to the ROV industry. • Over 500 ROV systems delivered. • Broad international customer base, with clients in over 30 countries. Military, customs & police. Search & recovery. Nuclear & hydro-electric plant integrity. Scientific research Underwater filming • Strong, resilient and rugged system design. • Dedicated customer service & support. • Internationally acclaimed products. • Ability to integrate tooling & sensor packages Phantom® DHDB+B Applications Outfall/Intake inspections. Jack-up and template inspections. Mooring and anchor chain monitoring. Telecommunication cable inspection. Mine countermeasures. Body and evidence recovery. Océanographie survey. Fisheries research. Environmental surveys. Marine archeology.

Open the catalog to page 1

Vehicle weight: Operating depth: Overall length: Overall width: Maximum height: Performance - forward thrust: Lateral thrust: Vertical thrust: Payload (with lateral thruster fitted) Power requirements: Input Voltage: Power Rating: User Power Available Auxiliary Power: Standard Umbilical Tether: Weight in fresh water: Neutral Cable reels and slip-ring units available. Navigation and tracking systems Additional cameras & lights. Set additional buoyancy. +3kg/6.6lb payload. Customized versions available. DOE single function manipulator. Sensor packages. Additional components on request • Superb...

Open the catalog to page 2

Phantom DHD2+2

Phantom DHD2+2
