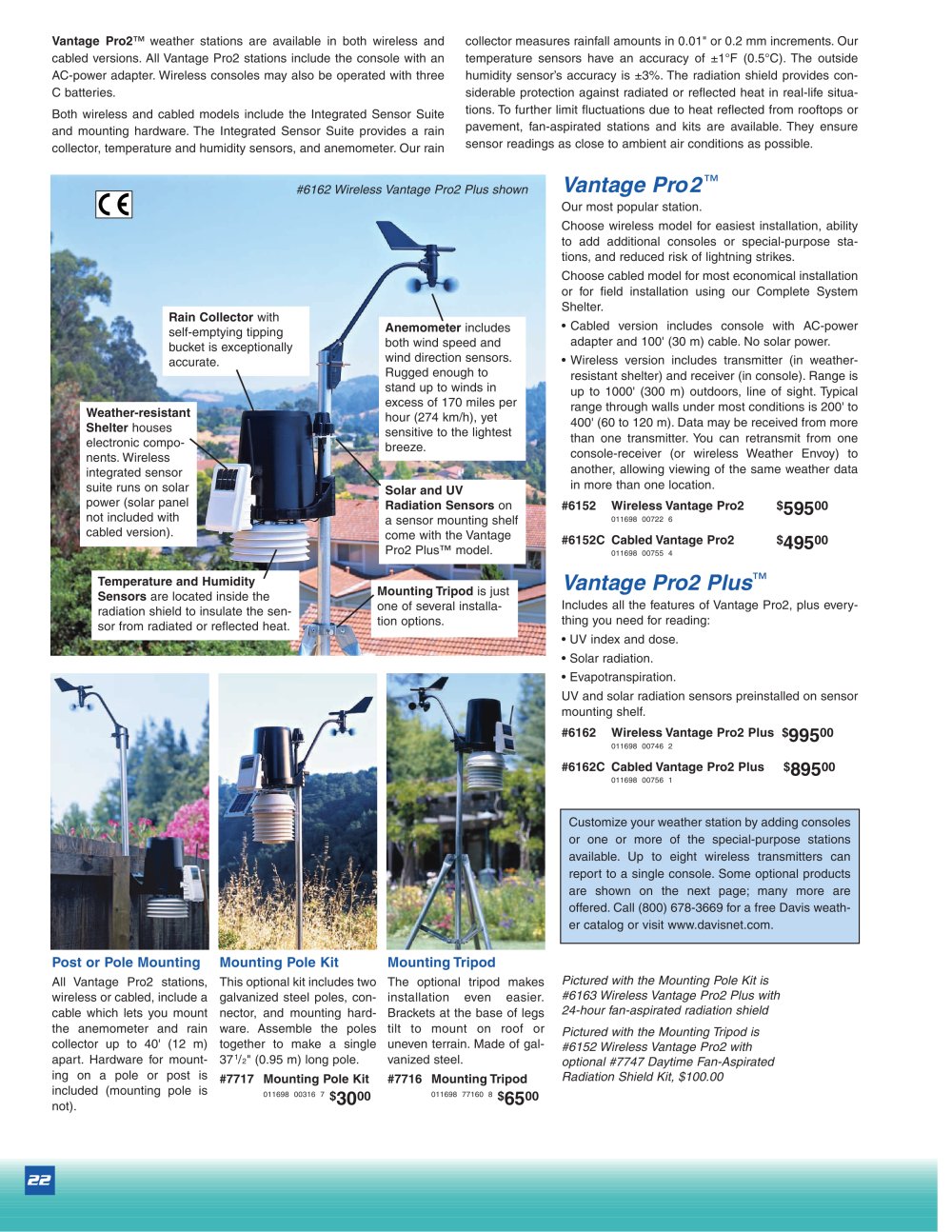

Vantage Pro2™ weather stations are available in both wireless and cabled versions. All Vantage Pro2 stations include the console with an AC-power adapter. Wireless consoles may also be operated with three C batteries. Both wireless and cabled models include the Integrated Sensor Suite and mounting hardware. The Integrated Sensor Suite provides a rain collector, temperature and humidity sensors, and anemometer. Our rain collector measures rainfall amounts in 0.01" or 0.2 mm increments. Our temperature sensors have an accuracy of ±1°F (0.5°C). The outside humidity sensor’s accuracy is ±3%. The radiation shield provides considerable protection against radiated or reflected heat in real-life situations. To further limit fluctuations due to heat reflected from rooftops or pavement, fan-aspirated stations and kits are available. They ensure sensor readings as close to ambient air conditions as possible. #6162 Wireless Vantage Pro2 Plus shown Vantage Pro2 ™ Our most popular station. Choose wireless model for easiest installation, ability to add additional consoles or special-purpose stations, and reduced risk of lightning strikes. Rain Collector with self-emptying tipping bucket is exceptionally accurate. Weather-resistant Shelter houses electronic components. Wireless integrated sensor suite runs on solar power (solar panel not included with cabled version). Choose cabled model for most economical installation or for field installation using our Complete System Shelter. Anemometer includes both wind speed and wind direction sensors. Rugged enough to stand up to winds in excess of 170 miles per hour (274 km/h), yet sensitive to the lightest breeze. Solar and UV Radiation Sensors on a sensor mounting shelf come with the Vantage Pro2 Plus™ model. Temperature and Humidity Sensors are located inside the radiation shield to insulate the sensor from radiated or reflected heat. Mounting Tripod is just one of several installation options. • Cabled version includes console with AC-power adapter and 100' (30 m) cable. No solar power. • Wireless version includes transmitter (in weatherresistant shelter) and receiver (in console). Range is up to 1000' (300 m) outdoors, line of sight. Typical range through walls under most conditions is 200' to 400' (60 to 120 m). Data may be received from more than one transmitter. You can retransmit from one console-receiver (or wireless Weather Envoy) to another, allowing viewing of the same weather data in more than one location. #6152 Wireless Vantage Pro2 011698 00722 6 #6152C Cabled Vantage Pro2 011698 00755 4 $59500 $49500 Vantage Pro2 Plus™ Includes all the features of Vantage Pro2, plus everything you need for reading: • UV index and dose. • Solar radiation. • Evapotranspiration. UV and solar radiation sensors preinstalled on sensor mounting shelf. #6162 Wireless Vantage Pro2 Plus $99500 011698 00746 2 #6162C Cabled Vantage Pro2 Plus 011698 00756 1 $89500 Customize your weather station by adding consoles or one or more of the special-purpose stations available. Up to eight wireless transmitters can report to a single console. Some optional products are shown on the next page; many more are offered. Call (800) 678-3669 for a free Davis weather catalog or visit www.davisnet.com. Post or Pole Mounting 22 Mounting Pole Kit Mounting Tripod All Vantage Pro2 stations, wireless or cabled, include a cable which lets you mount the anemometer and rain collector up to 40' (12 m) apart. Hardware for mounting on a pole or post is included (mounting pole is not). This optional kit includes two galvanized steel poles, connector, and mounting hardware. Assemble the poles together to make a single 37 1/ 2" (0.95 m) long pole. The optional tripod makes installation even easier. Brackets at the base of legs tilt to mount on roof or uneven terrain. Made of galvanized steel. #7717 Mounting Pole Kit 011698 00316 7 $ 3000 #7716 Mounting Tripod 011698 77160 8 $ 6500 Pictured with the Mounting Pole Kit is #6163 Wireless Vantage Pro2 Plus with 24-hour fan-aspirated radiation shield Pictured with the Mounting Tripod is #6152 Wireless Vantage Pro2 with optional #7747 Daytime Fan-Aspirated Radiation Shield Kit, $100.00

WeatherLink® Data Logger & Software Package For the ultimate in weather monitoring, add WeatherLink to any of our weather stations. The data logger fits neatly into the weather station console or Weather Envoy, storing weather data even when it's not connected to your PC. Later, download the data and use the software for detailed analysis and graphing. • See current conditions at a glance on the instant weather bulletin. • Graph data on a daily, weekly, monthly, or yearly basis. • Generate Weather Watcher reports in National Climatic Data Center format. • Track multiple stations on the same...

on Most Mastheads Around the World... Windex offers a wide range of masthead wind indicators well suited for racers and cruisers from 15' (4.6 meters) to well over 100' (30 meters). The newest member of the family, the WindeXL, features a 23" (58.4 cm) vane that is 50% longer than our famous Windex 15 vane— and WindeXL is just a few ounces heavier. All Windex vanes feature a sapphire jewel sus- pension bearing, large fin/low inertia vane and easy-to-read, fully adjustable tacking tab sys- tem. Reflector tape on the vane and tacking tabs make Windex easy to see at night. Windex is the...

For Mounting to Most Whip Antennas Windex AV™ installs onto most whip antennas, including Metz™ and Shakespeare™ brands, with a whip diameter less than 1/8" (3 mm). Combine two installations into one to reduce masthead clutter, weight and windage aloft. Rides on low-friction Teflon™ bearings. Complete with 15" (38 cm) vane, reflective tacking arms, hardware and instruc- tions for easy installation. Antenna not included. #3161 Spare Vane only For Boats over 40 Feet (12 m) The biggest Windex yet! WindeXL features a sapphire suspension bearing, 23" vane (58.4 cm) and adjustable tacking arms...
