Product catalog summary
Overview: The document provides detailed information about Daniamant's liferaft lighting systems, focusing on the RL5 model and other related products. These systems are designed to meet international safety standards and offer enhanced performance and reliability.
Specifications:
  • The RL5 liferaft light system is fully MED and IMO SOLAS approved, with a five-year lifespan and built-in test facility.
  • The system includes an external flashing LED light and an internal steady light powered by a single battery.
  • The external light provides a minimum light output of 4.3cd over 180 degrees and is connected to the internal light via a 60 cm lead.
  • The internal light and battery unit controls the entire system and can be replaced after five years.
Procedures:
  • The RL5 system is activated by pulling a styled pull tag, which operates both the internal and external lights.
  • Both lights can be switched separately to conserve battery power.
Standards and Approvals:
  • The RL5 meets or exceeds all applicable international standards and is approved by USCG, Transport Canada, with MLIT Japanese approval pending.
Additional Products:
  • The RL/RB system, which includes the RB2 battery pack, remains available and offers easy service and replacement.
  • Rescue Dan R.EXT and R.INT1 lights provide more than 4.3cd light output for a minimum of 12 hours and are designed for easy battery replacement after five years.
  • Rescue Master series offers customizable lead lengths and automatic activation during liferaft inflation.
Recommendations:
  • For further technical information and approvals, visit Daniamant's website.
  • Contact Daniamant for specific requirements and additional products like Lifebuoy Lights and Lifejacket Lights.
See more

Catalog excerpts

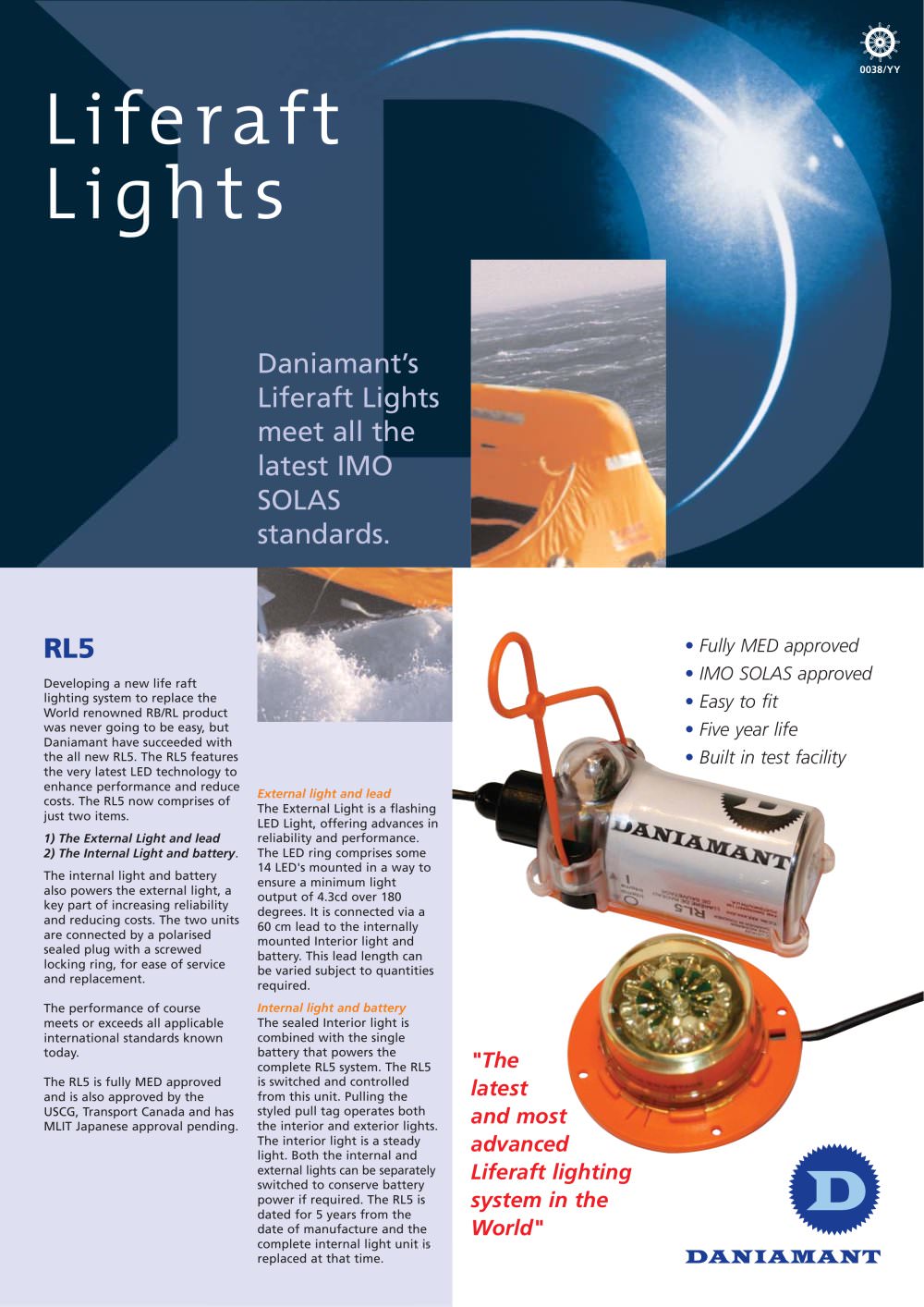

Liferaft Lights-1

Liferaft Lights Developing a new life raft lighting system to replace the World renowned RB/RL product was never going to be easy, but Daniamant have succeeded with the very latest LED technology to enhance performance and reduce 1) The External Light and lead 2) The Internal Light and battery. The internal light and battery also powers the external light, a key part of increasing reliability and reducing costs. The two units sealed plug with a screwed locking ring, for ease of service meets or exceeds all applicable international standards known USCG, Transport Canada and has MLIT Japanese approval pending. Five year life • Built in test facility External light and lead The External Light is a flashing LED Light, offering advances in The LED ring comprises some ensure a minimum light mounted Interior light and battery. This lead length can be varied subject to quantities Internal light and battery The sealed Interior light is combined with the single battery that powers the from this unit. Pulling the styled pull tag operates both the interior and exterior lights. The interior light is a steady light. Both the internal and external lights can be separately switched to conserve battery dated for 5 years from the complete internal light unit is replaced at that time. Liferaft lighting

 Open the catalog to page 1
Liferaft Lights-2

Liferaft Lights offer: • A full range to suit Light output^ Light duration RL/RB System The well established RL/RB system pack, which is fitted to the RL1 Internal Light, or the RL4 External battery is connected to the lead by a polarised sealed plug. This is fixed in place by a screwed locking ring. This enables easy An internal light made in two parts, a battery and lamp, which can be supplied separately. The lead length activated by pulling the activation pin out during inflation of the liferaft. An external light made in two parts, a battery and lamp, which can be supplied separately. The...

 Open the catalog to page 2
