Product catalog summary
Overview of RL5 Liferaft Lighting System
The RL5 is an advanced liferaft lighting system featuring the latest LED technology to enhance performance and reduce costs. It consists of two main components: the External Light and Lead, and the Internal Light and Battery. The system is designed to meet IMO SOLAS standards, is fully MED approved, and also approved by the USCG.
External Light and Lead
The External Light is a flashing LED light with a minimum output of 4.3cd over 180 degrees. It is connected to the Internal Light and Battery via a 60 cm lead, which can be adjusted based on requirements.
Internal Light and Battery
The Internal Light is a steady light powered by a single battery that also powers the External Light. The system is controlled from this unit, and both lights can be switched separately to conserve battery power. The unit is dated for 5 years from manufacture, after which it is replaced.
Quality and Compliance
Daniamant designs and manufactures products in line with ISO standards and international directives, ensuring world-class performance and safety. The company offers a range of products including Lifejacket Lights, Liferaft Lights, Lifebuoy Lights, Intrinsically Safe Lights, and Special Lights.
Additional Products
  • RL/RB System: Includes the RB2 battery pack and RL1 Internal Light or RL4 External Light.
  • Rescue Dan R.INT2: A small internal light unit with a 12-hour duration and automatic activation during liferaft inflation.
  • Rescue Dan R.EXT: A cost-effective external light providing over 4.3 cd for 12 hours.
  • Rescue Master Series: Includes internal and external lights with customizable lead lengths and automatic activation features.
Key Features
  • Full range to suit all applications
  • External Light with minimum 4.3 cd output
  • Internal Light with minimum 0.5 cd output
  • Minimum 12-hour light duration
  • Fully MED and IMO SOLAS approved
See more

Catalog excerpts

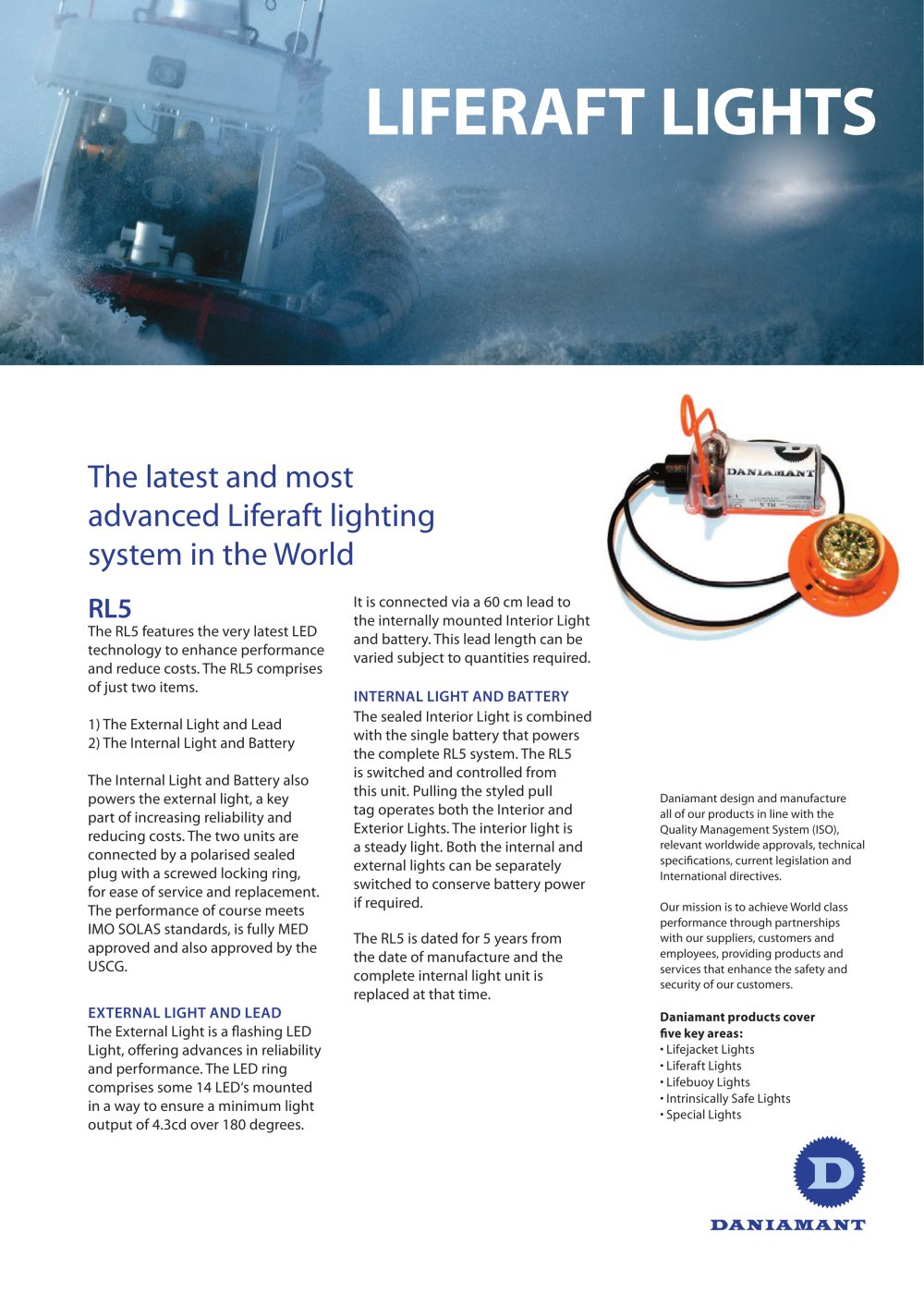

LIFERAFT LIGHTS II-1

advanced Liferaft lighting The RL5 features the very latest LED technology to enhance performance and reduce costs. The RL5 comprises 1)The External Light and Lead 2) The Internal Light and Battery The Internal Light and Battery also powers the external light, a key part of increasing reliability and reducing costs. The two units are connected by a polarised sealed plug with a screwed locking ring, for ease of service and replacement. The performance of course meets IMO SOLAS standards, is fully MED approved and also approved by the EXTERNAL LIGHT AND LEAD The External Light is a flashing LED Light, offering advances in reliability comprises some 14 LED's mounted in a way to ensure a minimum light output of 4.3cd over 180 degrees. the internally mounted Interior Light and battery. This lead length can be varied subject to quantities required. INTERNAL LIGHT AND BATTERY The sealed Interior Light is combined with the single battery that powers is switched and controlled from this unit. Pulling the styled pull tag operates both the Interior and Exterior Lights. The interior light is a steady light. Both the internal and external lights can be separately switched to conserve battery power The RL5 is dated for 5 years from complete internal light unit is replaced at that time. Daniamant design and manufacture all of our products in line with the Quality Management System (ISO), relevant worldwide approvals, technical specifications, current legislation and International directives. Our mission is to achieve World class performance through partnerships with our suppliers, customers and employees, providing products and services that enhance the safety and Daniamant products cover • Lifejacket Lights • Liferaft Lights • Lifebuoy Lights • Intrinsically Safe Lights • Special Lights

 Open the catalog to page 1
LIFERAFT LIGHTS II-2

Liferaft Lights •A full range to suit • External Light light output. • Internal Light light output light duration RL/RB System The well established RL/RB system continues to be available. It comprises of the RB2 battery pack, which is fitted to the RL1 Internal Light, or the RL4 External Light (requires 2 x RB2's).The battery is connected to the lead by a polarised sealed plug. This is fixed in place by a screwed locking ring.This enables easy service and replacement. This is a small, single light unit supplied complete with battery and lamp. As an internal light, it provides sufficient light...

 Open the catalog to page 2
