Surface Comparison Guide

Product catalog summary

Overview: The document provides a detailed comparison and application guide for the Cygnus range of ultrasonic thickness gauges, specifically models Cygnus 4, Cygnus 2+, Cygnus 4+, and Cygnus 6+.

Specifications: The devices are designed for use on coated and uncoated metals, capable of measuring through coatings up to 20mm (3/4”). They are suitable for extreme corrosion environments.

Industry Applications:

Cygnus 4: General purpose use in plant maintenance, civil engineering, and ship surveys.
Cygnus 2+ Hands Free: Ideal for ship surveys and rope access.
Cygnus 4+ and Cygnus 6+ Pro: Suitable for a wide range of applications including plant maintenance, civil engineering, marine structures, oil and gas facilities, renewable energy structures, storage tanks, ship inspections, high temperature assets, specific geometry, attenuative materials, and materials like plastics, cast metals, and composites.

Features Comparison: The document includes a comparison guide highlighting features such as Multiple Echo Mode, Deep Coat capability, Single Echo Mode, Echo-Echo Mode, compatibility with Single and Twin Crystal Probes, display types, manual gain control, calibration options, material velocity table, USB port, echo strength indicator, vibrate alert, limits and alarms, measurement stability indicator (MSI™), automatic probe detection, data logging capabilities, and connectivity options like Bluetooth™.

Additional Features: The Cygnus range offers features like A-Scan and B-Scan displays, comprehensive data logging upgrades, SD card for data storage, and temperature compensation. The document also mentions the availability of CygLink Software for data transfer and radial points for further investigation upgrades.

Contact Information: For more information, the document provides a contact number and a website link for Cygnus Instruments.

Catalog excerpts

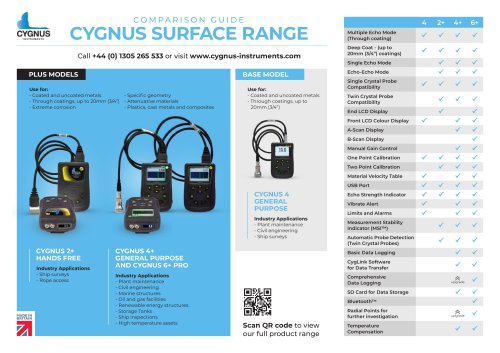

COMPARISON GUIDE PLUS MODELS BASE MODEL - Coated and uncoated metals - Specific geometry - Through coatings, up to 20mm (3/4”) - Attenuative materials - Extreme corrosion - Plastics, cast metals and composites GENERAL PURPOSE AND CYGNUS 6+ PRO - Coated and uncoated metals Deep Coat - (up to 20mm (3/4”) coatings) Single Echo Mode Echo-Echo Mode Single Crystal Probe ^ Twin Crystal Probe Compatibility Front LCD Colour Display A-Scan Display B-Scan Display Manual Gain Control Industry Applications - Plant maintenance - Civil engineering - Ship surveys Material Velocity Table >/ Echo Strength Indicator •</ Measurement Stability Indicator (MSI™) Automatic Probe Detection (Twin Crystal Probes) Basic Data Logging CygLink Software for Data Transfer Industry Applications - Plant maintenance - Civil engineering - Marine structures - Renewable energy structures - Storage Tanks - Ship inspections - High temperature assets Scan QR code to view our full product range Data Logging upgracie SD Card for Data Storage V further investigation upgracie

Open the catalog to page 1
