Swivelling-Davits

Product catalog summary

Overview: The document provides detailed specifications and features of the Ultimate Swivelling Davits, designed for across-boat stowage. The range includes three models: LSD 125, LSD 75, and LSD 50, each with varying load capacities and mounting options.

Specifications:

LSD 125: Supports up to 125kg per pair. Available in slider deck mount (LSD125D), transom mount (LSD125T), and flush mount (LSD125F).
LSD 75: Supports up to 75kg per pair. Available in slider deck mount (LSD75SD), transom mount (LSD75ST), and flush mount (LSD75SF).
LSD 50: Supports up to 50kg per pair. Available in deck mount (LSD50D) and transom mount (LSD50T).

Features:

All models are made from polished 316 stainless steel.
Designed to rotate when not in use for convenience.
Equipped with a sliding arm to secure dinghies.
Custom and standard transom brackets are available.
Hand winch operation is included for ease of use.

Additional Information: The document includes diagrams detailing the dimensions and mounting options for each model. Contact information for Cooney Marine International Limited is provided for further inquiries.

Catalog excerpts

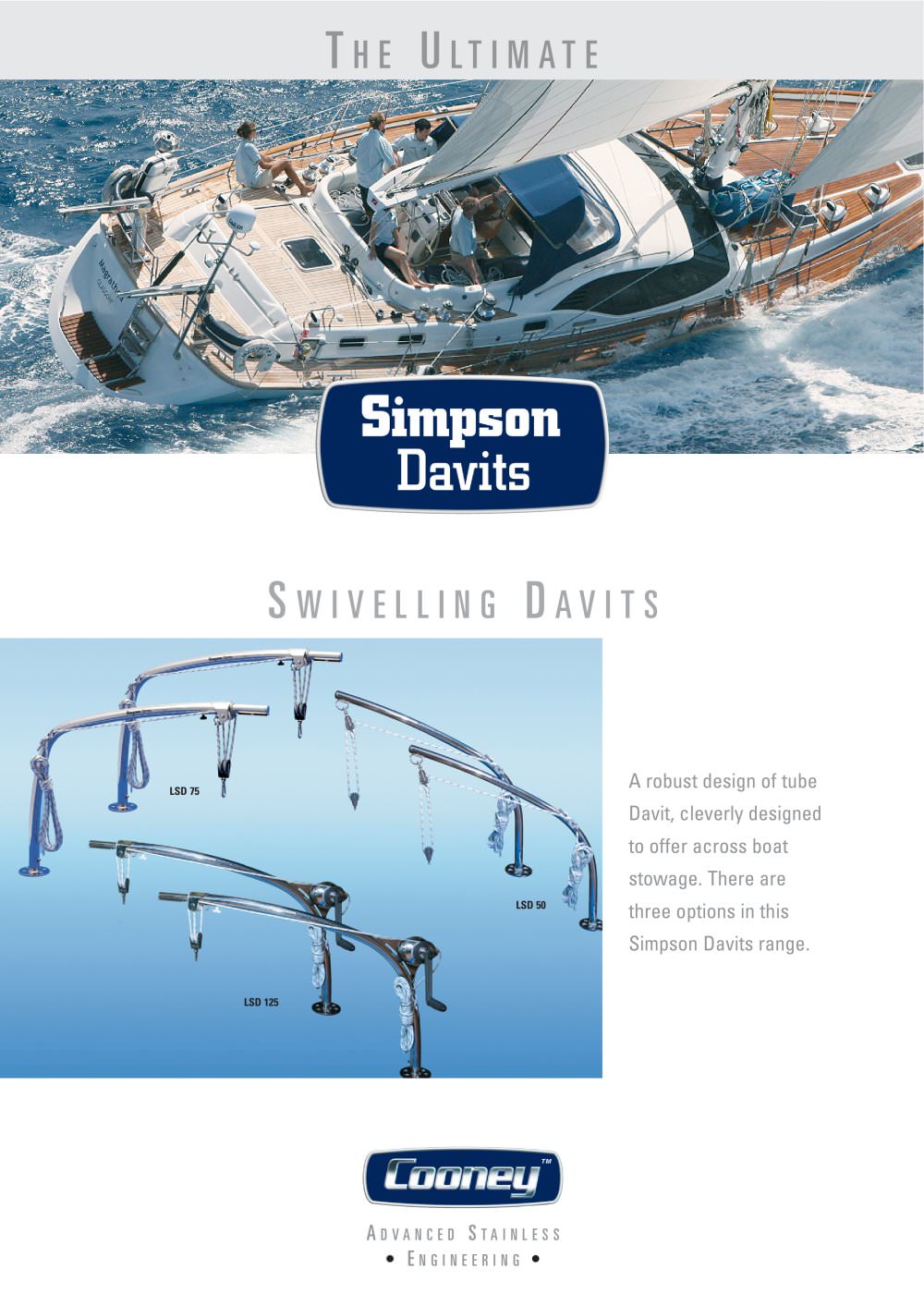

T H E U LT I M AT E S W I V E L L I N G DAV I T S A robust design of tube LSD 75 Davit, cleverly designed to offer across boat stowage. There are LSD 50 three options in this Simpson Davits range. LSD 125 TM A DVA N C E D S TA I N L E S S • ENGINEERING •

Open the catalog to page 1

S P E C I F I C AT I O N S S W I V E L L I N G DAV I T S 1 2 5 K G LSD125 A robust design of tube davit made with across-boat stowage in mind. FEATURES • Rotate when not in use • Capacity 125kg per pair, according to model • Sliding arm to hold dinghy secure • Simply removed • Made from polished 316 stainless steel • Custom and standard transom brackets available • Can be deck mounted • Hand winch operation 846 974 DECK MOUNT LSD 75 / 125 ø13 Boat angle 100 FLUSH DECK MOUNT TRANSOM MOUNT DESCRIPTION 125kg 125kg 125kg Slider, deck mount Slider, transom mount Slider, flush mount LSDCAP LSDFCAP...

Open the catalog to page 2

S W I V E L L I N G DAV I T S 7 5 K G LSD75 A robust design of tube davit made with across-boat stowage in mind. DETAIL SCALE ÿ 12 .5 C 0.500 FEATURES • Rotate when not in use • Capacity 75kg per pair, according to model • Sliding arm to hold dinghy secure • Simply removed • Made from polished 316 stainless steel 100.5 • Custom and standard transom brackets available • Can be deck mounted 846 ÿ 150 100 100 974 DECK MOUNT ÿ 13 LSD 75 / 125 Boat angle ø13 100 FLUSH DECK MOUNT TRANSOM MOUNT DESCRIPTION 75kg 75kg 75kg Slider, deck mount Slider, transom mount Slider, flush mount LSDCAP LSDFCAP Base...

Open the catalog to page 3

S P E C I F I C AT I O N S S W I V E L L I N G DAV I T S 5 0 K G LSD50 A robust design of tube davit made with across-boat stowage in mind. FEATURES • Rotate when not in use • Capacity 50kg per pair, according to model • Simply removed • Made from polished 316 stainless steel • Custom and standard transom brackets available • Can be deck mounted 838 782 Boat angle LSD 50 SDW per pair DESCRIPTION LSD50D LSD50T 50kg 50kg Deck mount Transom mount B 100 MODEL Boat angle 30 125 120 80 200 ø13 TRANSOM MOUNT 170 DECK MOUNT 60 LSDCAP Base Cover Cap 100 TM Cooney Marine International Limited Telford Way...

Open the catalog to page 4
