LAUNCH / CATALINA 2009

LAUNCH / CATALINA 2009
1 / 25 PagesView full catalog

LAUNCH / CATALINA 2009

Product catalog summary
Overview of Chris-Craft Launch Series: The Chris-Craft Launch series includes the Launch 22, Launch 25, and Launch 28 models, designed for family use with a focus on performance, comfort, and style. Each model offers unique features and specifications to cater to different boating needs.
Launch 22:
  • Design: A mid-size bowrider with engine options up to 375 hp, known for its agility and swift acceleration.
  • Features: Includes a stainless steel windshield, custom dash, U-shaped seating, and ample storage.
  • Specifications: Length of 23’5”, beam of 8’3”, fuel capacity of 58 gallons, and a top speed of 56.4 mph.
  • Performance: Offers stable handling with a cruising range of 204 miles.
Launch 25:
  • Design: Features a spacious cockpit and bow seating, suitable for long trips with a standard V-8 engine.
  • Features: Includes an enclosed head, U-shaped aft seating, and a 3-Year Chris-Care Protection Plan.
  • Specifications: Length of 27’2” with swim platform, beam of 8’6”, fuel capacity of 85 gallons, and a top speed of 59.3 mph.
  • Performance: Provides a cruising range of 258 miles.
Launch 28:
  • Design: Offers a wide beam and forward seating for comfort, with optional twin-engine packages.
  • Features: Includes a wet bar, U-shaped aft seating, and a pressure fresh water system.
  • Specifications: Length of 28’ with swim platform, beam of 10’, fuel capacity of 150 gallons, and a top speed of 55 mph.
  • Performance: Designed for longer cruising with a range of 235 miles.
Common Features: All models feature stainless steel fittings, navigation lighting, and meet ABYC and USCG standards. Luxury trim and various engine packages are available as options.
Conclusion: The Chris-Craft Launch series offers versatile and stylish options for family boating, with each model providing specific features to enhance the boating experience.
Technical Specifications: The document details specifications for Chris-Craft boat models, focusing on materials, design features, and compliance with standards. Key features include stainless steel and teak inlays, hydraulic trim tabs, and international navigation lighting. The boats meet ABYC, USCG standards, and have NMMA Yacht Certification.
Cockpit Features: Designed for comfort and functionality, featuring bow seating, stainless steel drink holders, LED lighting, and an entertainment center with a wet bar. Helm and companion seats are adjustable, with ample storage including a ski storage locker.
Helm Specifications: Includes a custom Chris-Craft gauge package, mahogany steering wheel, and Kenwood marine stereo system, with a tilting steering helm and accessory outlets.
Technical Features: Highlight automatic bilge pumps, electric hydraulic hatch, and power steering. Equipped with a pressure fresh water system and electronic controls for twin engines.
Options and Accessories: Include air compressors, safety packages, battery chargers, and various electronic packages. The Heritage Edition offers teak enhancements, while the Luxury Trim Edition provides premium upholstery options.
Engine Packages: Options include various Volvo and Mercury models, with features like high altitude drives and selectable exhausts.
Catalina Models: The Catalina 23 and 26 models are noted for spacious cockpits, self-bailing features, and fish boxes, designed for fishing and family water sports.
Performance Data: Includes top speeds, cruise speeds, and range at cruise, tested with Yamaha engines.
Hull and Deck Features: Designed with a deep-V hull and flared bow for a smooth ride, featuring stainless steel fittings, teak accents, and heavy-duty PVC rub rails.
Cockpit and Helm Features: Include self-bailing features, LED lighting, and multiple rod holders. The helm is equipped with a stainless steel steering wheel, Kenwood stereo system, and teak storage areas.
Conclusion: Chris-Craft boats focus on luxury, performance, and versatility, offering a range of options and features to suit different needs and preferences.
Overview of Chris-Craft Catalina 29 Series: The Catalina 29 series includes the Catalina 29, Catalina 29 Express, and Catalina 29 Sun Tender, designed for fishing, family excursions, and luxury sunbathing, blending functionality with classic Chris-Craft style.
Specifications: Length overall of 29’ 5” and a beam of 10’ 2”. Fuel capacities range from 205 to 220 gallons, with water capacities around 30 to 31 gallons. The hull features a deep-V design with a 21-degree deadrise.
Performance: Equipped with twin Yamaha F250 TXR engines, achieving top speeds of 50-53 mph and cruise speeds of 29-31 mph, with a range of 327 to 386 miles at cruise speed.
Features: Include a spacious cockpit, self-bailing design, stainless steel thru-hull fittings, and integrated fiberglass structural liner. Optional features include a TECMA head system and Raymarine Electronics Package.
Technical Specifications: Equipped with Lenco electric trim tabs, automatic bilge pumps, hydraulic steering, and a fresh water system. Meet ABYC & USCG standards.
Options/Accessories: Include different paint schemes, canvas covers, T-Top configurations, and entertainment packages. Engine options include Yamaha Twin F-250 and Mercury Verado Twin 250 hp.
Conclusion: The Catalina 29 series offers versatile and stylish options for boating enthusiasts, focusing on comfort, performance, and customization.
See more

Catalog excerpts

LAUNCH / CATALINA 2009-1

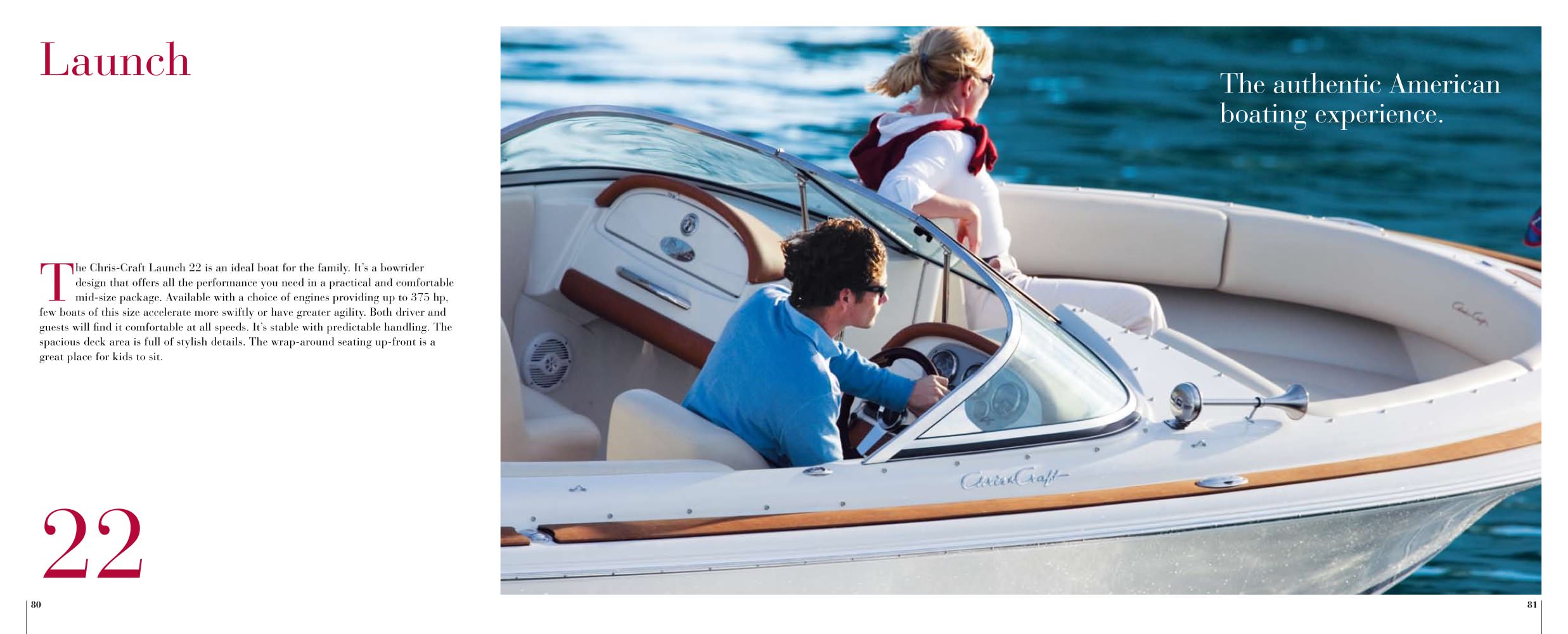

he Chris-Graft Launch 22 is an ideal boat for the family. It's a bowrider design that offers all the performance you need in a practical and comfortable mid-size package. Available with a choice of engines providing up to 375 hp, few boats of this size accelerate more swiftly or have greater agility. Both driver and guests will find it comfortable at all speeds. It's stable with predictable handling. The spacious deck area is full of stylish details. The wrap-around seating up-front is a great place for kids to sit. boating experience.

 Open the catalog to page 1
LAUNCH / CATALINA 2009-3

TECHNICAL SPECIFICATIONS • Stainless steel windshield frame • Perforated custom dash with custom Chris-Craft gauges • Stainless steel thru-hull fittings • Optional pressure water system with 9-gallon capacity • Full aft U-shaped seating ♦ More than 13 cubic feet of overall storage space ♦ 3-Year Chris-Care Protection Plan • Length Overall: • Fuel Capacity: • Water Capacity: • Bridge Clearance: PERFORMANCE DATA • Engine Tested: • Cruise Speed: • Range @ Cruise: HULL & DECK Stainless steel walk-thru windshield frame with tempered glass Anchor hatch with teak & stainless steel inlay Bimini top with...

 Open the catalog to page 3
LAUNCH / CATALINA 2009-4

Y I I ^he Launch 25 is an ideal mid-size day boat for the family. It offers a i 5~ì 1 J I I I] spacious main cockpit and bow seating area. A more generous seating 1 area, including full aft U-shaped seating, makes this bowrider well- suited to long trips and excursions.While the Launch 25 is versatile and comfortable, it is easy to drive. It comes with a standard single V-8 engine with 280 hp. Alternatively, you can specify a range of Volvo or Mercruiser engines with up to 425 hp.With this much power at your fingertips, getting away from it all is effortless. A mid-range sport boat

 Open the catalog to page 4
LAUNCH / CATALINA 2009-5

TECHNICAL SPECIFICATIONS • Custom stainless steel windshield • Dash with custom Chris-Craft gauges • Stainless steel thru-hull fittings • Port console enclosed head • Self-draining cockpit • Spacious U-shaped aft seating ♦ Trademark Chris-Craft Tumblehome aft ♦ 3-Year Chris-Care Protection Plan • Length Overall: Centerllne Length: Waterllne Length: Hull Length: Beam Maximum: Beam Transom: Design Displacement: Fuel Capacity: Water Capacity: Transom Angle: Draft (prop raised) Draft (prop lowered): Freeboard Forward: Freeboard at Half Length: Height Overall: Bridge Clearance: Maximum Persons: PERFORMANCE...

 Open the catalog to page 5
LAUNCH / CATALINA 2009-6

full days entertaining The Launch 28 is an uncompromising all-day family runabout that offers the best of all worlds. The combination of a wide 10' beam and larger forward seating area provides exceptional levels of comfort with ample space for family and friends. The deep-V hull construction and optional twin-engine packages offer greater levels of performance, while an increased fuel capacity allows for a longer cruising range. It's a boat made for more adventurous excursions and entertaining. Whatever you choose to do, it will provide both driver and guests with equal satisfaction and pleasure....

 Open the catalog to page 6
LAUNCH / CATALINA 2009-7

TECHNICAL SPECIFICATIONS Forward seating area Custom stainless steel windshield Perforated custom dash with custom Chris-Craft gauges Stainless steel thru-hull fittings Portable head Available with single or dual power options Entertainment consoles with wet bar and storage Pressure fresh water system Spacious U-shaped aft seating Trademark Chris-Craft Tumblehome aft 3-Year Chris-Care Protection Plan • Length Overall: Centerline Length: Waterline Length: Hull Length: Beam Maximum: Beam Transom: Beam Waterline: Design Displacement: Trailerable Weight: Fuel Capacity: Water Capacity: Holding Tank:...

 Open the catalog to page 7
LAUNCH / CATALINA 2009-8

hris-CrafVs most recent ntry into the center console market with a stylish fish boat not only for serious fishermen, but also as a water sports boat for the family. It bears all of the beautiful and traditional design features of Chris-Craft's other models. This Catalina has an overall length of 23 feet 6 inches and a beam of more than eight feet and can comfortably accommodate eight people. Boasting recognizable features, the deep-V hull and flared bow, passengers can be assured of a smooth, dry ride while aboard.

 Open the catalog to page 8
LAUNCH / CATALINA 2009-9

TECHNICAL SPECIFICATIONS • Spacious cockpit and bow seating area • Self-bailing cockpit • Fish boxes on both port and starboard • Powder coated aluminum T-Top with canvas (optional) • 15' Radial Outriggers (optional) • Flip-up seat reveals concealed porta potti • 22.5-gallon bait well located at helm seat module • Open cell upholstery for convenient drying • 3-Year Chris-Care Protection Plan • Length Overall: With T-Top: • Fuel Capacity: • Water Capacity: • Hull Draft: Without T-Top: With T-Top: • Bridge Clearance: PERFORMANCE DATA • Engine Tested: • Cruise Speed: • Range @ Cruise: HULL & DECK...

 Open the catalog to page 9
LAUNCH / CATALINA 2009-10

Just because you left the dock before dawn to catch that big fish doesn't mean you have to rough it. As with every Chris-Craft, the Catalina 26 uses premium finishes throughout. It boasts an array of features that were created with the serious fisherman in mind including upholstery which is durable yet very comfortable. This Catalina, with an overall length of 26 feet 6 inches and beam of 8 feet 8 inches, allows for comfort and ease during either a relaxing day of fishing with the family or

 Open the catalog to page 10
LAUNCH / CATALINA 2009-11

Catalina 26 100 The definition of a high-style fish boat which also serves as a comfortable sports boat for the entire family. 101

 Open the catalog to page 11
LAUNCH / CATALINA 2009-12

TECHNICAL SPECIFICATIONS • Spacious cockpit and bow seating area • Self-bailing cockpit • Stainless steel thru-hull fittings • Fish boxes on both port and starboard • Powder coated aluminim T-Top with canvas (option) • Radial Outriggers (optional) • Flip-up seat reveals concealed TECMA head (optional) • 24-gallon bait well located at helm seat module • 3-Year Chris-Care Protection Plan • Length Overall: • Fuel Capacity: • Water Capacity: • Hull Draft: • Bridge Clearance: PERFORMANCE DATA • Engine Tested: • Cruise Speed: • Range @ Cruise: • Engine Tested: • Cruise Speed: • Range @ Cruise: HULL...

 Open the catalog to page 12
