YB-Hydrogen

Product catalog summary

Technical Specifications

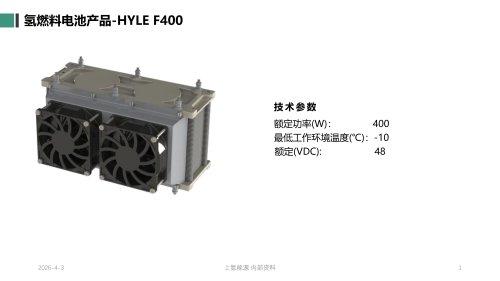

HYLE F400: Rated power of 400W, minimum operating temperature of -10°C, and rated voltage of 48VDC.
HYLE S30: Rated power between 10-30kW, minimum operating temperature of -30°C, operating voltage of 96-101VDC, and a design life of 10,000 hours.
HYLE S60: Dimensions of 1120x800x530mm, rated power of 60.2kW, minimum operating temperature of -20°C, power density of 320W/kg, operating voltage of 450-750VDC, and a design life of 10,000 hours.
HYLE S120: Dimensions of 875x770x728mm, rated power of 120.5kW, minimum operating temperature of -30°C, power density of 511W/kg, operating voltage of 450-750VDC, and a design life of 15,000 hours.
HYLE S200: Dimensions of 1125x610x840mm, rated power between 180-260kW, minimum operating temperature of -30°C, power density between 900-1000W/kg, operating voltage of 450-750VDC, and a design life of 20,000 hours.

Extended Applications

Combined Heat and Power (CHP): Model HYLE W120~2000 offers power between 120-2000kW, with a system power efficiency of ≥42% and total CHP efficiency of ≥85%. It operates in temperatures from -30 to 45°C and starts within 15 seconds above 0°C.
Fixed and Mobile Power Generation: Model HYLE P120 provides 120kW power, with modular solid-state hydrogen storage, noise level ≤80dB(A), and operates in temperatures from -30 to 45°C. It supports island and grid-connected modes.
Marine Power Generation: Model HYLE M60~600 offers power between 60-600kW, with noise level ≤85dB(A), and operates in temperatures from -30 to 45°C. It is suitable for ports, ferries, and long-distance shipping due to its high energy density and fast refueling.

Catalog excerpts

技术参数额定功率(W)： 400 最低工作环境温

Open the catalog to page 1

技术参数额定功率(kW)： 10~30 最低工作环境温度(℃)： -30

Open the catalog to page 3

氢燃料电池产品-HYLE S60 技术参数额定功率(kW)： 60.2 最低工作环境温度(℃)： -20 质量功率密度(W/kg)： 320 工作电压(VD

Open the catalog to page 5

氢燃料电池产品-HYLE S120 技术参数额定功率(kW)： 120.5 最低工作环境温度(℃)：-30 质量功率密度(W/kg)： 511 工作电压(V

Open the catalog to page 7

技术参数额定功率(kW)： 180~260 最低工作环境温度(℃)： -30 质量功率密度(W/kg)： 900~1000 工作电压(VD

Open the catalog to page 9
