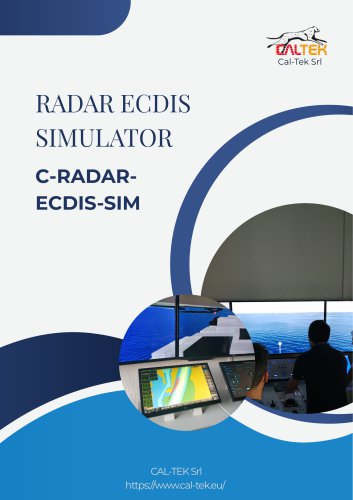

RADAR ECDIS SIMULATOR C-RADARECDIS-SIM

SEAMLESS AUGMENT YOUR SKILLS & CAPABILITIES C-RADAR-ECDIS-SIM is our advanced simulation solution for training in the use of RADAR and ECDIS systems. The system features a student workstation equipped with a simulated RADAR and a real ECDIS (EGlobe G2), fully integrated with an Instructor Station that combines cuttingedge digital technologies with traditional navigation tools. This setup ensures a realistic training experience fully compliant with international STCW standard, making it ideal for modern maritime training institutions. C-RADAR-ECDIS-SIM can also be seamlessly integrated into our...

ADVANCED MARITIME TRAINING advanced simulator designed to train maritime operators in the use of ECDIS and RADAR systems. The system provides an accurate representation of radar data, chart information, and navigation details, simulating a variety of realistic scenarios that a trainee may encounter while navigating. The simulator consists of two main components: • Instructor Workstation, which allows for the creation, management, and monitoring of training scenarios. Workstation, each equipped with a real ECDIS and a simulated RADAR. The ECDIS allows for the visualization of nautical charts and...

TO MANAGE REALISTIC SCENARIOS been designed, developed, and implemented to provide a wide range of functionalities and to offer comprehensive control over training scenarios and student performance. Both the own ship and the target vessels can be customized to recreate all the situations the trainee may encounter on board real ships. Multiple instances of C-RADAR-ECDIS-SIM can be controlled from a single Instructor Station. • Creation of training scenarios including up to 100 vessels, selectable from various models (e.g., cargo, containership, bulk carrier, passenger, cruise) • Real-time management...

THE RADAR: ADVANCED EXERCISE GENERATION The ARPA Radar console is equipped with a simulator that faithfully replicates a real radar system, providing all the necessary functionalities to meet the STCW training requirements for radar operators. • Selection of display modes: head-up, course-up, stabilized head-up, north-up, north-up TM • Range scale selection • Antenna gain control • EBL (Electronic Bearing Line) / VRM (Variable Range Marker) • Clutter suppression • Interference rejection • Watch alert • Acquisition zones • Manual and automatic target acquisition • CPA/TCPA alerts • Target list...

A REAL-TYPE ECDIS INTEGRATED INTO THE C-RADAR-ECDIS-SIM SIMULATOR The ECDIS console is equipped with the eGlobe G2 type-approved ECDIS, certified by DNV and fully compliant with international maritime System compliance 52 edition 6.1.1 (IHO Presentation Library version 4.0.2), S-64 • IMO: SOLAS 74 and amendments, Regulations

A REAL-TYPE ECDIS INTEGRATED INTO THE C-RADAR-ECDIS-SIM SIMULATOR • Navigation data display (SOG, COG, depth, etc.) • Route planning • Route monitoring and checking • Anti-Grounding settings • Split-screen functionality • Nautical chart management (S-57, S-63, ARCS) • Watch handover checklist • Target data display • Head-up / North-up • Own Ship (OS) symbol display • Predictor function • Past track display • CPA/TCPA settings • User chart definition • Alarms and warnings management • User profile management • UTC / Local time display • Display screenshot capture • Report generation • Pick object...

WHERE RESEARCH & DEVELOPMENT MAKE THE DIFFERENCE STRONG COOPERATION WITH INTERNATIONAL UNIVERSITIES C-RADAR-ECDIS-SIM is developed in collaboration with the University of Calabria, home to our Research and Innovation activities, and is part of a broader scientific cooperation framework with universities and research centers worldwide. Our company boasts over 200 scientific publications in international journals and conferences, demonstrating a strong commitment to transferring innovation from academic research to applied practice. The technological solutions implemented in our Simulators originate...

AFTER-SALES SUPPORT SERVICES We offer comprehensive support both during the warranty period and throughout the entire lifecycle of the simulation system, through customized assistance packages. Our support program is tailored to meet the specific needs of each client and may include: • Regular software updates • Extended warranty options • Ongoing staff training o Remote and online assistance ° On-site interventions

SPEED UP YOUR BUSINESS! CONTACT US – CAL-TEK Srl, Main Contact Points: Phone: +39 0984 494891 Sales: [email protected] Support: [email protected]
