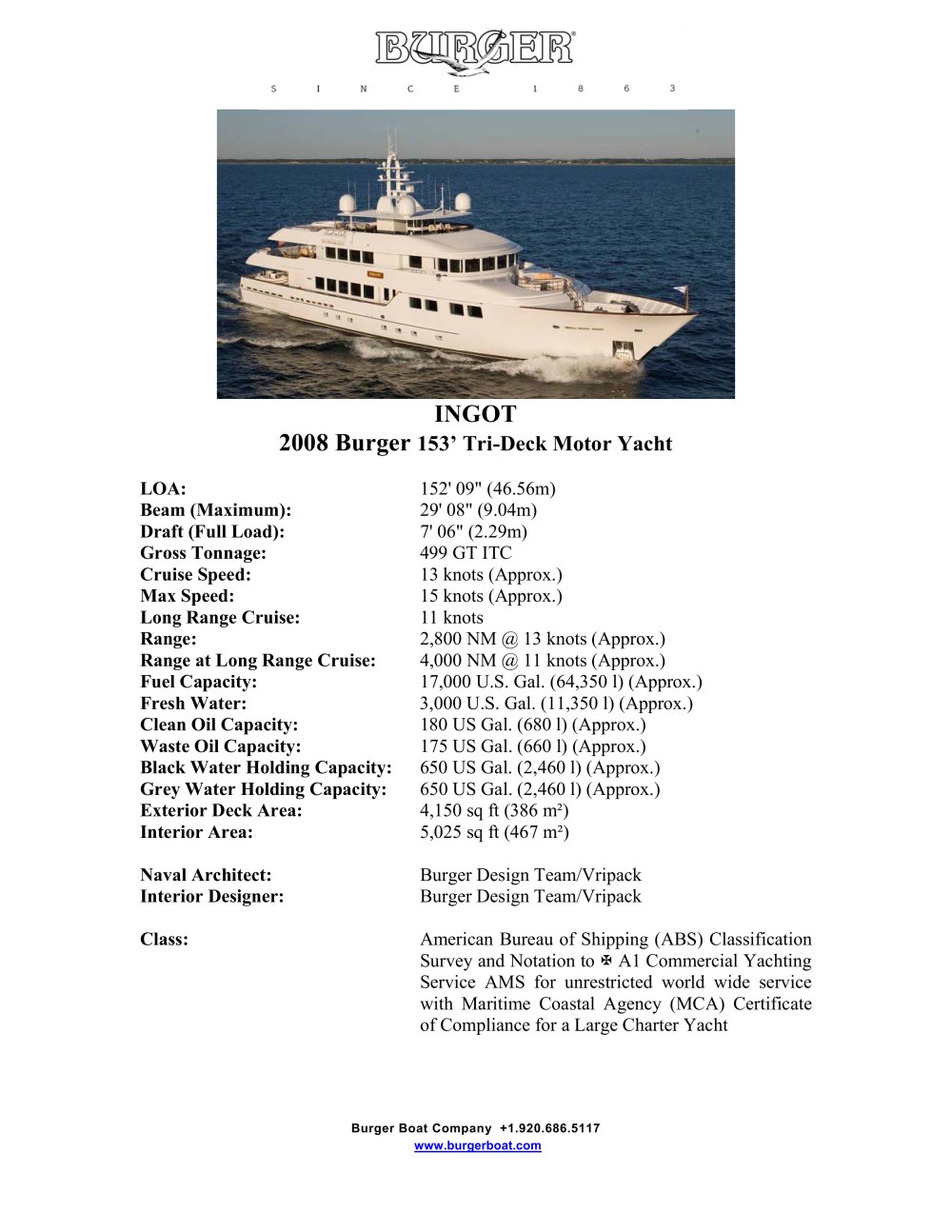

INGOT 2008 Burger 153’ Tri-Deck Motor Yacht LOA: Beam (Maximum): Draft (Full Load): Gross Tonnage: Cruise Speed: Max Speed: Long Range Cruise: Range: Range at Long Range Cruise: Fuel Capacity: Fresh Water: Clean Oil Capacity: Waste Oil Capacity: Black Water Holding Capacity: Grey Water Holding Capacity: Exterior Deck Area: Interior Area: 152' 09" (46.56m) 29' 08" (9.04m) 7' 06" (2.29m) 499 GT ITC 13 knots (Approx.) 15 knots (Approx.) 11 knots 2,800 NM @ 13 knots (Approx.) 4,000 NM @ 11 knots (Approx.) 17,000 U.S. Gal. (64,350 l) (Approx.) 3,000 U.S. Gal. (11,350 l) (Approx.) 180 US Gal. (680 l) (Approx.) 175 US Gal. (660 l) (Approx.) 650 US Gal. (2,460 l) (Approx.) 650 US Gal. (2,460 l) (Approx.) 4,150 sq ft (386 m²) 5,025 sq ft (467 m²) Naval Architect: Interior Designer: Burger Design Team/Vripack Burger Design Team/Vripack Class: American Bureau of Shipping (ABS) Classification Survey and Notation to A1 Commercial Yachting Service AMS for unrestricted world wide service with Maritime Coastal Agency (MCA) Certificate of Compliance for a Large Charter Yacht Burger Boat Company +1.920.686.5117 www.burgerboat.com

Construction The vessel consists of an all welded aluminum construction using 5000 series marine grade aluminum alloy and is sub-divided into six (6) water tight compartments. Mechanical Features Main Engines: Two (2) Caterpillar 3508B Series II developing 1000 BHP at 1600 rpm. Raw water cooled. Generators: Two (2) Northern Lights, 130 kW, 60 Hz, 208 V three phase 1,800 rpm. Raw water cooled. Electrical Systems AC Power System: The electrical installation is 208VAC 60Hz three phase wye, four-wire system with grounded neutral. The system has automatic paralleling capability using governors,...

Shore Supply: An ASEA Shore Power Converter is installed. The shore power input of 190-550VAC 50/60Hz, with an output of 208VAC, 3ph, 60 Hz, with seamless transfer capability, from shore power to generator and vice versa. Load Bank: A SEPHCO 30kW, salt water cooled load bank, controlled by the load management system is installed. Power Management System: The power management system in the switchboard allows for a selectable “lead” generator which can be manually selected at will or automatically selected based on running time. The system will also automatically select an alternate or...

Alarm and Monitoring System Alarm System: A Simon™ monitoring system is installed. The main control panel/computer for the alarm system is installed in the control room using a flat screen display. There is a flat screen alarm indication panel in the engine room, the Pilothouse and the crew mess. The alarm system is switched so that the alarm can sound either in all stations or in selected stations. If, after a pre-determined amount of time, an alarm is not accepted when the alarm is directed to one location, then the alarm shall sound at all positions. Fire Detection System: A Notifier...

Bilge Oil/Water Separator: A Heli-Sep model 500 bilge oil/water separator with OCD oil content meter is installed in compliance with USCG/MARPOL. The separator discharges clean water overboard and sludge to the sludge tank. Fresh Water System: Two Grundfos Boosterpaq variable speed pumps supply the fresh water system. Hot water is provided by two Nibe SP-300 80 gallon water heaters. The fresh water distribution system is controlled by a series of local zone valves to allow repair work to be carried out in specific areas without interrupting the entire system throughout yacht Watermakers:...

hauling up speed of between 10 and 20 meters per minute, via a proportional valve. Mooring Capstans: There are (2) Muir Model VC6000 tall drum capstans, (1) installed on either side of the aft deck. Tenders: The following tenders are included with the vessel: One (1) Nautica RIB 15 Deluxe Rescue Boat / 60hp Yamaha 4-stroke Outboard One (1) Nautica RIB Custom Two (2) 2008 Yamaha VX Cruiser Waverunner 3-person watercraft Cranes: The overhead above the Aft Deck portion of the Main Deck level is fitted with a dual overhead beam crane system (3000 lb lift ea. 6000 lb total) manufactured by...

Accommodations The interior design and computer-generated renderings by Vripack, depict a “Neo” Classical motif enriched by a traditionally-designed, book-matched, raised panel Honduras mahogany. Accented by 104 round Honduras mahogany and Maple burl inlayed pillars throughout the vessel the interior features curved, molded and radiused joiner details throughout. 7

The lower accommodations feature walls of raised panel mahogany, king sized berths and en suite baths with heated floors with rare onyx, marbles and granites. The crew accommodations are finished in Anigre. The interior and exterior stairways on this yacht include an exterior glass-surrounded spiral staircase on the sky deck. The interior central staircase adjacent to the elevator includes a mahogany, recessed wood railing and wrought iron accents on the main deck and sky deck levels. A full-sized, wheelchair accessible elevator with wood inlays provides accessibility to all four deck...

The salon and dining area feature two large separate, back lit ceiling panels of “white” onyx; one directly over the dining table and the other over the seating area in the main salon. A room divider was created to section off these two spaces. Specifically, the divider is a concave mahogany base cabinet with a form matching soffit above which integrates recessed lighting. The stainless steel and Mahogany finished galley is completely “professional” with only commercial quality equipment and appliances. A separate and discrete service stairway provides service work flow between the deck...

Crew Mess/Lounge: A large, L-shaped vinyl upholstered seating banquette with a Corian® table and flat screen TV is located in the Crew’s Area. Opposite the seating is a full laundry room. Adjacent to the lounge is a walk-up kitchenette with sink, undercounter refrigerator, microwave and storage. Built-in Refrigerator/Freezer: A built-in stainless steel lined freezer and refrigeration compartment is fitted in the crew’s quarters and is located forward of the laundry room. Crew Laundry: A laundry room is installed in the crew’s quarters complete with two (2) stacked washer/dryers, stainless...
