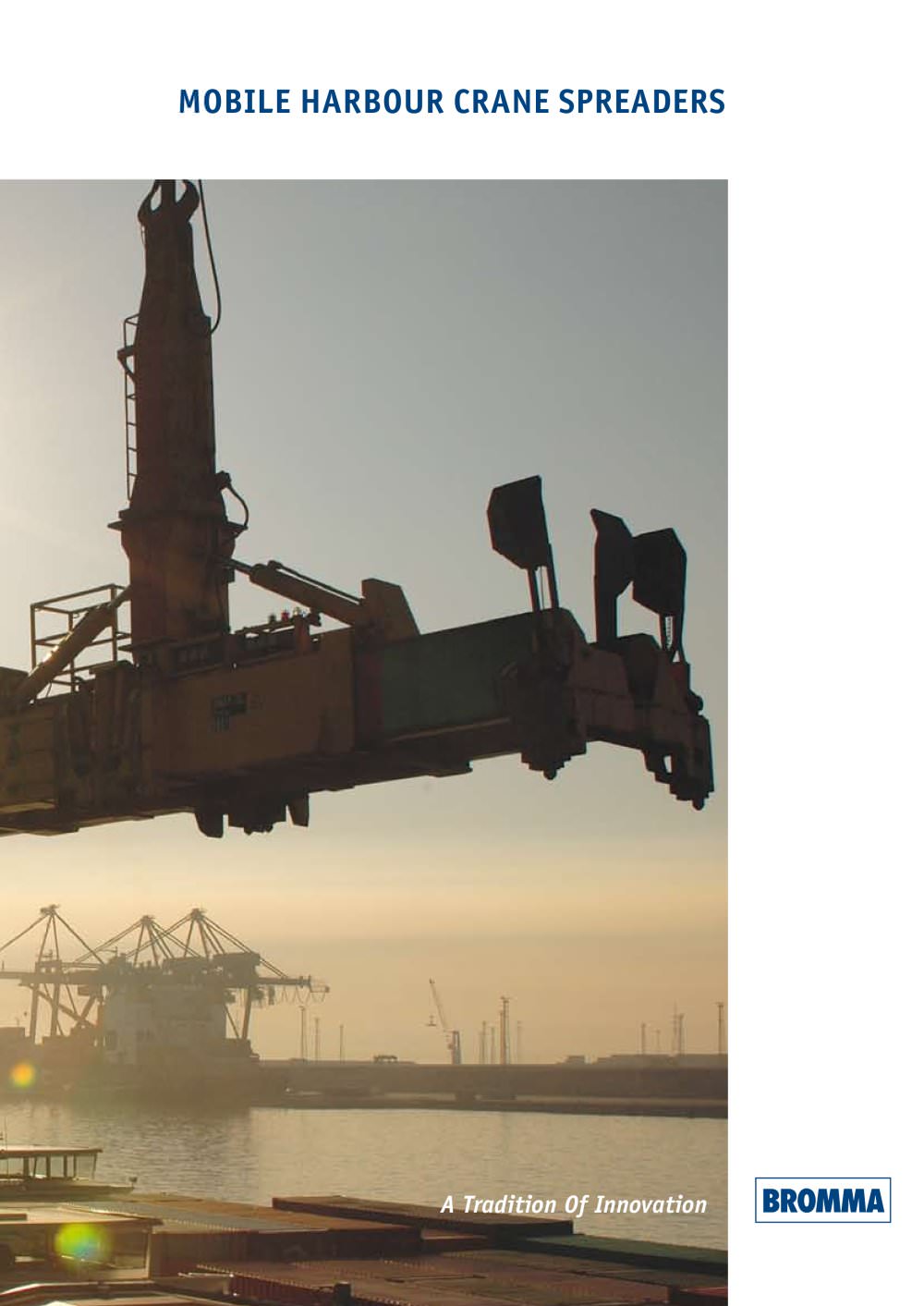

MOBILE HARBOUR CRANE SPREADERS A Tradition Of Innovation
Open the catalog to page 1Mobile Harbour Crane Spreaders Wherever mobile or jib cranes are found, Bromma spreaders can usually be found there as well. Container terminals throughout the world, whether in fast growing emerging economies, or high- throughput developed economies, have common goals when it comes to equipment selection: reliability, efficiency, and productivity. This is why Bromma for many decades has been the world leader in spreaders, and why Bromma mobile harbor crane spreaders are the spreader of choice, with a global market share of approximately 70%. Bromma's partnerships with the leading mobile...
Open the catalog to page 2spreaders this has led to feature-rich design. Bromma MHC spreaders offer tower and gravity point adjustment, so that unevenly loaded containers can be picked up horizontally, which is especially important when loading or unloading in the guides of the ship's cells. A sliding assembly allows the gravity lifting point to be adjusted by 1.2 metres in both directions. When a container is released the tower automatically returns to the centre position. Spreaders can also be equipped with a leveling device which prevents the crane operator from moving the tower in the wrong direction when...
Open the catalog to page 3under conditions that are never ideal. Yet Bromma spreaders are designed for the terrain of the terminal, and remain productive, reliable and durable under conditions that are never ideal. Core commitments at Bromma, such as design simplicity, quality control, manufacturing integrity, and leading technology, are at the heart of minimizing spreader downtime, and helping terminals achieve faster ship turns and the fullest possible utilization of terminal berth capacity. ISO floating twist locks have a floating capacity of 6 mm and both electrical interlock and mechanical blockading. The...
Open the catalog to page 4EH5U, 20 -40' Single Lift Spreader Tower design with ±1.2 m gravity point adjustment High lifting capacity, 41 ton- nes, with low tare weight floating twistlock Proximity switches for posi- tioning of telescopic motion Flipper installation for better Shock absorption between telescopic beam and main Fulfils design criteria among The Bromma EH5U spreader is a single lift mobile harbour crane spreader with high lifting capacity of 41 tonnes combined with low weight. This means better performance with no impact on the load curve The EH5U comes with the Bromma standard ISO floating twistlocks...
Open the catalog to page 5Container combinations with MSX45 MSX45, 20 -45' Single Lift Spreader Tower design with ±1.25 m gravity point adjustment High lifting capacity, 41 tonnes, with low tare weight floating twistlock telescopic motion Flipper installation for better Shock absorption between telescopic beam and main Fulfils design criteria among The Bromma MSX45 spreader is a single lift mobile harbour crane spreader with high lifting capacity of 41 tonnes combined with low weight. This means better performance with no impact on the load curve The MSX45 extends from 20 foot to 45 foot with an intermediate stop at...
Open the catalog to page 6Container combinations with MTR45 can be lifted without chang- Gravity point adjustment of 2.1 meters, to adjust eccent- rically loaded containers into horizontal position Advanced communications system reduces downtime Fast trouble shooting Fulfils the design criteria I The Bromma MTR45 telescopic twinlift mobile har- bour crane spreader offers the loading and unloading speed of twin-lift spreaders, with the added flexibility to perform singlelift container handling as well. 30' (option), 40' or 45' position, or twin-lift two fully loaded 32.5 tonne containers, or twin-lift two contai-...
Open the catalog to page 7Container combinations with MTS45 (Separating twinlift) MTS45, 20 -45' Separating Twin Spreader can be lifted without changing Gravity point adjustment of 2.1 meters, to adjust eccentri- cally loaded containers into horizontal position moved apart from 0 to 1.6 meters (0' 5') under full load Advanced communications system reduces downtime Fast trouble shooting Fulfils the design criteria The Bromma MTS45 telescopic twinlift mobile har- bour crane spreader offers the loading and unloading speed of twin-lift spreaders, with the added flexibility to perform singlelift container handling as...
Open the catalog to page 8Information in this brochure is subject to alteration without prior notice. bromma conquip ab Box 1133 SE-164 22 Kista Sweden Visiting address: Malaxgatan 7, Kista phone: +46 8 620 0900 +46 8 739 3786 e-mail: sales@bromma.com www.bromma.com PRINTED SEPTEMBER 2008 fax:
