Battery boxes

Product catalog summary

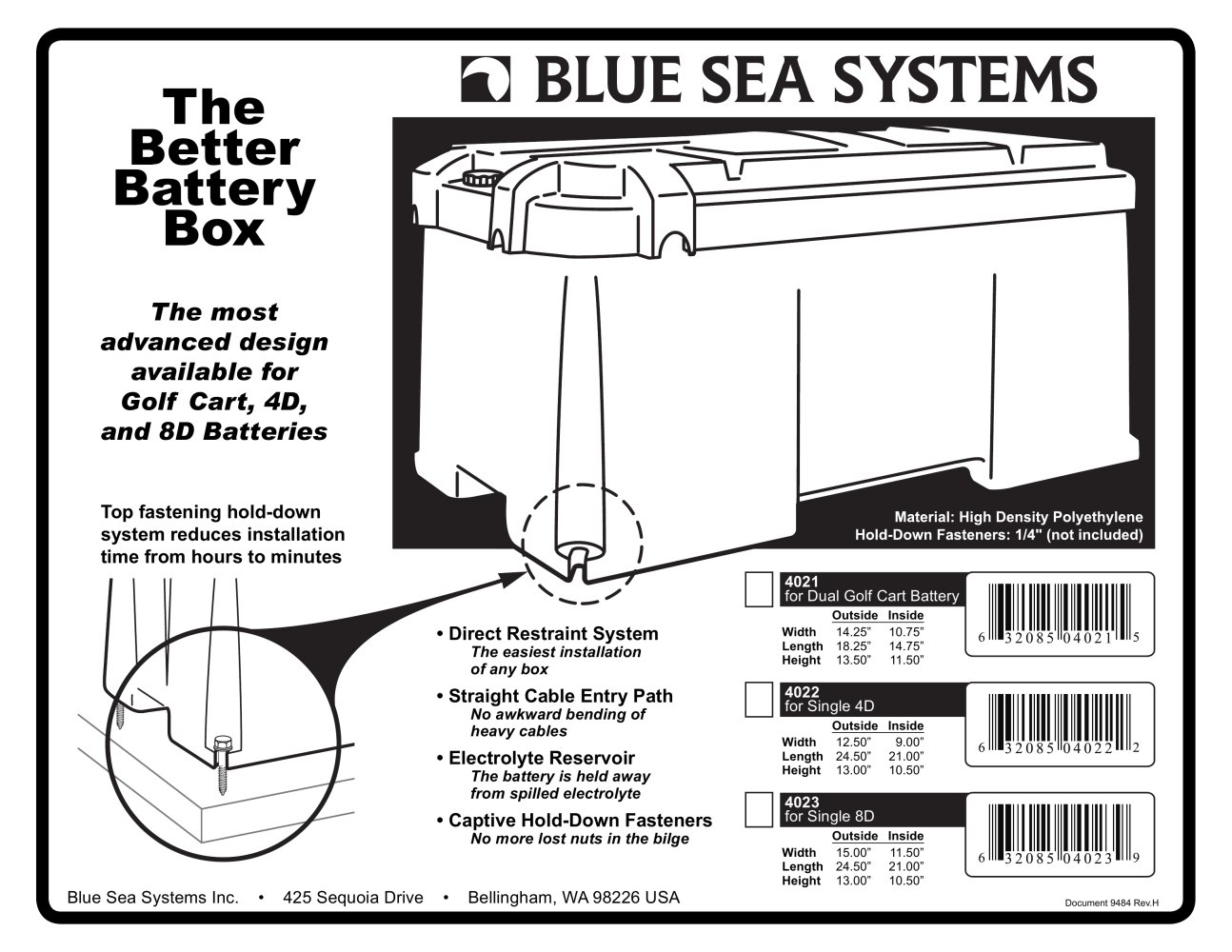

Overview: The document describes the Better Battery Box by Blue Sea Systems, designed for Golf Cart, 4D, and 8D batteries. It highlights the advanced design features that facilitate easy installation and secure battery storage.

Key Features:

Top Fastening Hold-Down System: Reduces installation time significantly.
Direct Restraint System: Simplifies installation.
Straight Cable Entry Path: Prevents awkward bending of cables.
Electrolyte Reservoir: Keeps the battery away from spilled electrolyte.
Captive Hold-Down Fasteners: Prevents loss of nuts.

Specifications:

Model 4021: Dual Golf Cart Battery - Outside: 14.25” x 18.25” x 13.50”, Inside: 10.75” x 14.75” x 11.50”.
Model 4022: Single 4D - Outside: 15.00” x 24.50” x 13.00”, Inside: 11.50” x 21.00” x 10.50”.
Model 4023: Single 8D - Outside: 12.50” x 24.50” x 13.00”, Inside: 9.00” x 21.00” x 10.50”.

Installation Guidelines: The battery box is designed for easy installation with mounting flanges that accept 1/4” fasteners. It complies with the American Boat and Yacht Council (ABYC) Standards for battery installation.

ABYC Standard E-10.6:

Batteries must be secured against shifting and not move more than one inch under specified forces.
Protection against accidental contact with ungrounded terminals is required.
Metallic fuel lines near the battery must be shielded with dielectric material.
Batteries should not be installed directly above or below fuel tanks or fittings.
A vent system must be provided to discharge hydrogen gas.
Materials resistant to electrolyte damage should be used for mounting surfaces.
Fasteners should be isolated from areas collecting spilled electrolyte.

Contact Information: Blue Sea Systems Inc., 425 Sequoia Drive, Bellingham, WA 98226 USA. Phone: (360)738-8230, Fax: (360)734-4195, Email: [email protected], Website: www.bluesea.com

Catalog excerpts

advanced design system reduces installation time from hours to minutes Material: High Density Polyethylene Hold-Down Fasteners: 1/4" (not included) Blue Sea Systems Inc. • 425 Sequoia Drive • Direct Restraint System • Straight Cable Entry Path heavy cables • Electrolyte Reservoir The battery is held away from spilled electrolyte • Captive Hold-Down Fasteners Aio more lost nuts in the bilge for Dual Golf Cart Battery Outside Inside Outside Inside Outside Inside
