BFD-530

BFD-530
1 / 1 PageView full catalog

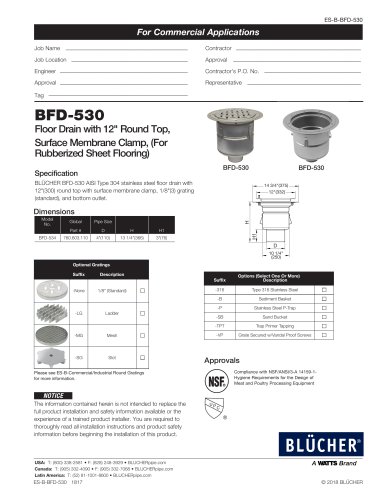

BFD-530

Product catalog summary
Specification: The BLÜCHER BFD-530 is a floor drain made from AISI Type 304 stainless steel, featuring a 12-inch round top with a surface membrane clamp suitable for rubberized sheet flooring. It includes a standard 1/8-inch grating and a bottom outlet.
Compliance: The product complies with NSF/ANSI/3-A 14159-1 hygiene requirements for meat and poultry processing equipment.
Dimensions: The floor drain has a height of 13 1/4 inches and a pipe size of 4 inches.
Optional Gratings: Available options include ladder, mesh, and slot gratings, in addition to the standard 1/8-inch grating.
Additional Options: Customers can select from Type 316 stainless steel, sediment basket, stainless steel P-trap, sand bucket, trap primer tapping, and a grate secured with vandal-proof screws.
Notice: It is crucial to read all installation instructions and product safety information before installation. The document emphasizes that it does not replace the full product installation and safety information.
Contact Information: BLÜCHER provides contact numbers for the USA, Canada, and Latin America for further inquiries.
See more

Catalog excerpts

BFD-530-1

For Commercial Applications Job Name –––––––––––––––––––––––––––––––––––––––––––– Floor Drain with 12" Round Top, Surface Membrane Clamp, (For Rubberized Sheet Flooring) BFD-530 BLÜCHER BFD-530 AISI Type 304 stainless steel floor drain with 12"(300) round top with surface membrane clamp, 1/8"(3) grating (standard), and bottom outlet. Pipe Size Global Part # D 10D1 1/4" (250) Optional Gratings Suffix Description Suffix Please see ES-B-Commercial/Industrial Round Gratings for more information. Options (Select One Or More) Description Type 316 Stainless Steel

 Open the catalog to page 1

All BLUCHER catalogs and brochures

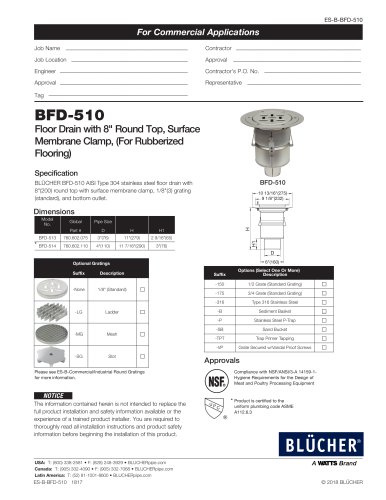

  1. BFD-510
    BFD-510

    1  Page

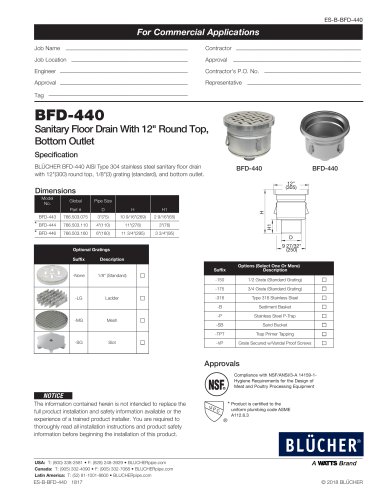

  2. BFD-440
    BFD-440

    1  Page

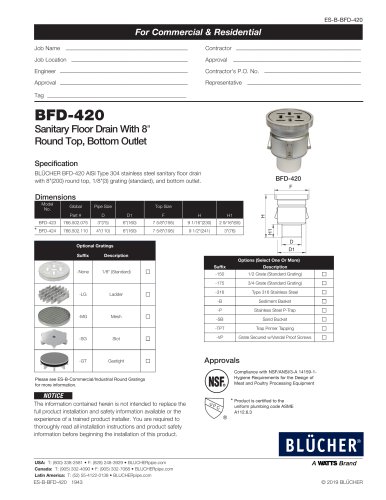

  3. BFD-420
    BFD-420

    1  Page

  4. BFD-410
    BFD-410

    1  Page

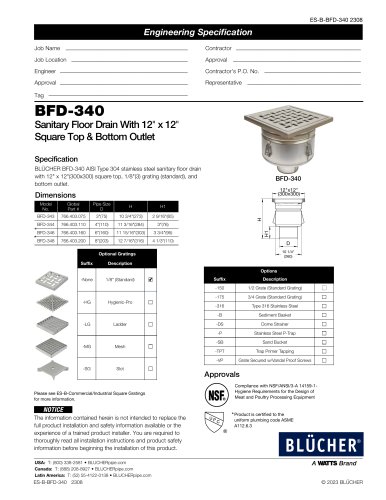

  5. BFD-340
    BFD-340

    1  Page

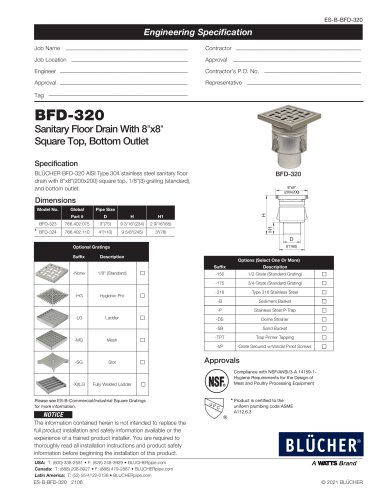

  6. BFD-320
    BFD-320

    1  Page

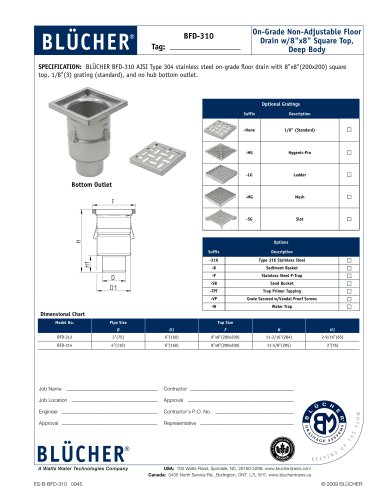

  7. BFD-310
    BFD-310

    1  Page

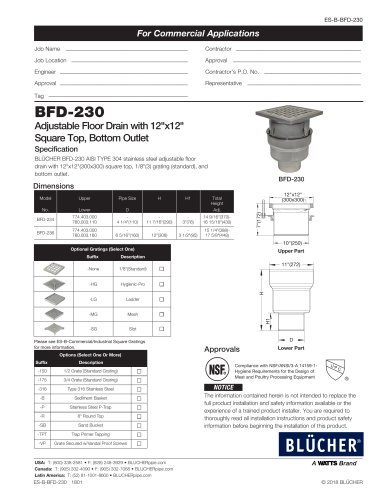

  8. BFD-230
    BFD-230

    1  Page

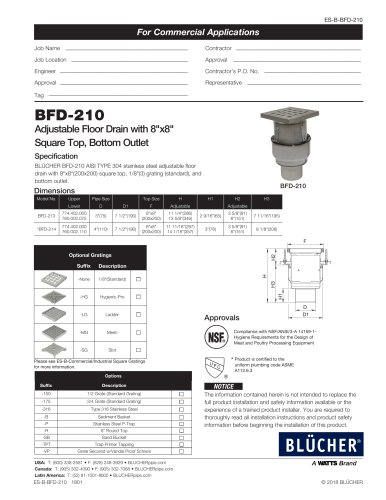

  9. BFD-210
    BFD-210

    1  Page

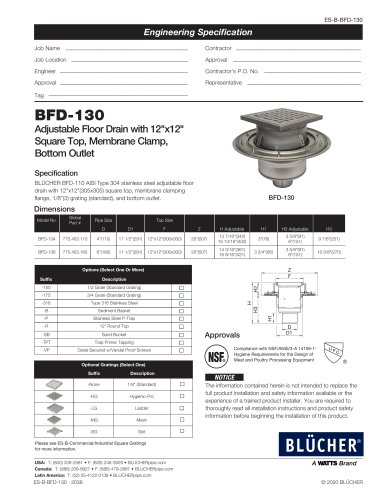

  10. BFD-130
    BFD-130

    1  Page

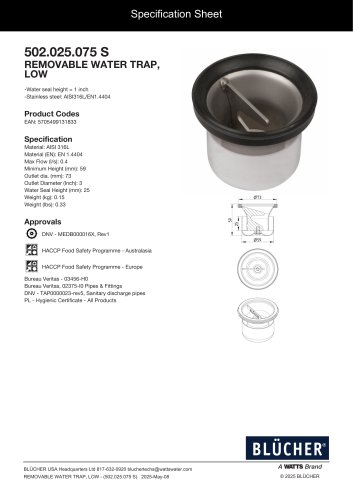

  11. 502.025.075 S
    502.025.075 S

    1  Page

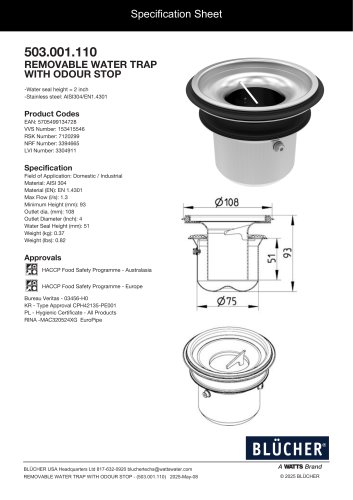

  12. 503.001.110
    503.001.110

    1  Page

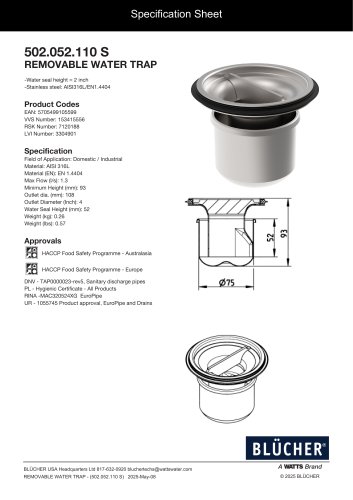

  13. 502.052.110 S
    502.052.110 S

    1  Page

  14. 502.052.110 CR
    502.052.110 CR

    1  Page

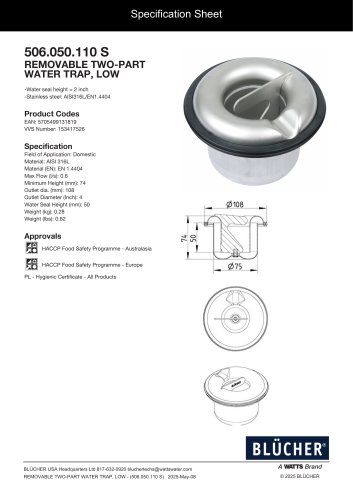

  15. 506.050.110 S
    506.050.110 S

    1  Page

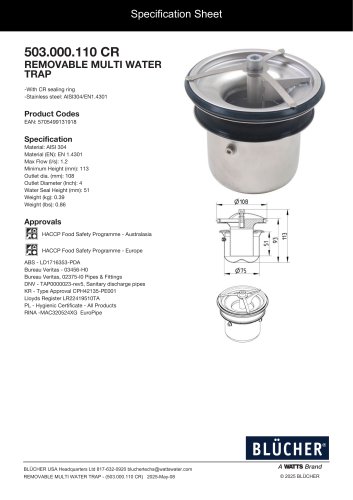

  16. 503.000.110 CR
    503.000.110 CR

    1  Page

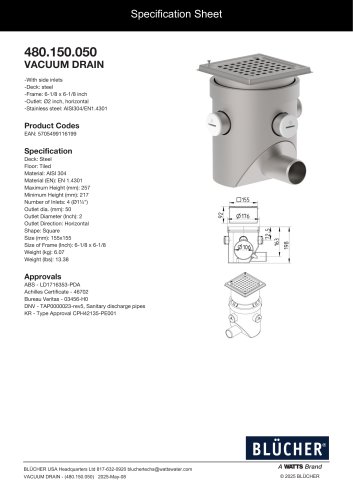

  17. 480.150.050 VACUUM DRAIN
    480.150.050 VACUUM DRAIN

    1  Page

  18. 491.200.050 VS
    491.200.050 VS

    1  Page

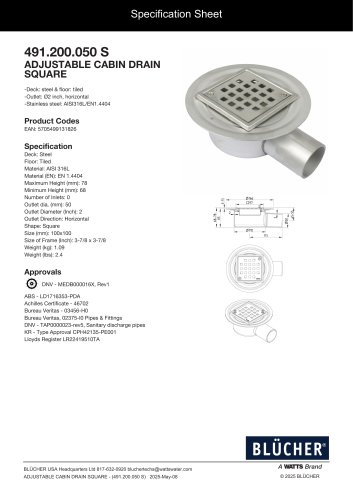

  19. 491.200.050 S ADJUSTABLE CABIN DRAIN SQUARE
