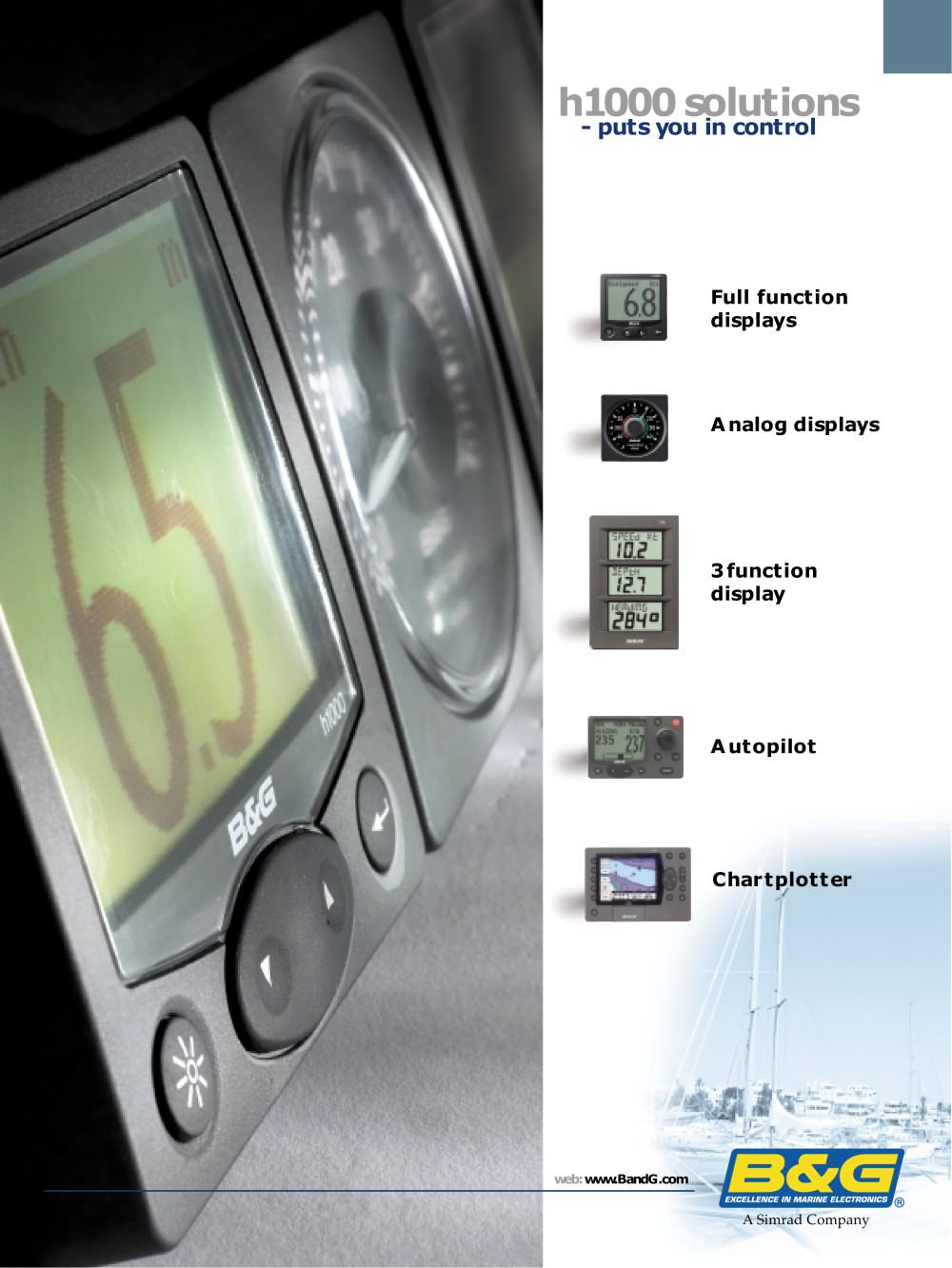

h1000 solutions - puts you in control Full function displays Analog displays 3 function display Autopilot Chartplotter web: www.BandG.com A Simrad Company

More than equipment - it´s insurance... h1000 puts you in control... Even though the technology we develop becomes more complex and sophisticated, at B&G we understand how important it is to maintain the functionality of our equipment. We understand that when you're out on the water you need equipment that's simple to use, easy to see and highly accurate. When we decided to develop h1000 we approached the experts - our customers. The philosophy behind h1000 is to put you firmly in control. It combines proven B&G experience with incredibly intuitive operation. It prompts you when scrolling through...

Self learning autopilot - an invaluable crew member Integrate the h1000 pilot with an h1000 system or with other manufacturers’ equipment via selectable NMEA. Hydraulic linear drive unit. h1000 pilot learns to steer your boat to the prevailing conditions. This is done automatically without you needing to make a user adjustment. The advanced computer unit can learn your boat characteristics and match this information with ever-changing sea conditions. This is a steering function on all our pilots. Our self-learning pilot only requires the minimum effort to steer your selected course. As a result,...

Customise your display a single display provides a wealth of information at your fingertips. Full function instrument - all the information you need in one display. Boat speed Main menu Select display format Select data Wind angle and speed Analogs - four crystal clear classic style instruments. Wind speed Compass Wind angle Magnified wind angle 3 function display - large digital display repeater Features: cruising Windvane h1000-dsp h1000-aws h1000-awa h1000-pdu plhh-acp h1000-csu mast foot club racing h1000-dsp h1000-dsp h1000-awa h1000-amw h1000-3fd • Easy to use: Just one display and three...

Functions and system requirements • Standard • Option Displayed Functions Speed Speed, kts, kph, mph: Velocity Made Good: Trip Log: Stored Log: sdi + snsrs csu PDU DSP • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • (1) • • • • • • • (1) • (1) • (1) • (1) • (1) • (1) • (1) • (1) • (1) • (1) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • (2) • (2) • (2) • (2) • (2) • (2) • (2) • (2) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • wdi + snsr uni + GPS • AWA AWS AMW ACS 3FD Temperature Sea...

Specifications h1000 acp pilot processor dimensions: 207 x 136 x 90mm (8.2 x 5.4 x 3.5") weight: 3.0Kgs (6.6lbs) case construction: zinc casing power supply (electronics): 12v dc nominal (10-16v) via Fastnet2 power supply (drive): 12-24v dc nominal (12-32v) power consumption (electronics): 100mA (approx) maximum current (drive): 25A operating temperature range: -10 to +55ºC (+14 to +130ºF) storage temperature range: -25 to +70ºC (-13 to +158ºF) humidity range: up to 95% rh compass safe distance: 100mm (3.9") Pilot drive unit - rams Type 0, 1, 2 type: electrically driven hydraulic ram with reversible...
