Underwater Lights

Product catalog summary

Introduction
Armstrong Nautical Products introduces new thru-hull underwater lights designed to enhance the boating experience for fishermen and divers by illuminating underwater areas and attracting bait fish.

Specifications

Illumination depth: Up to 25 feet
Mounting options: Flush or surface mount
Construction: Composite, corrosion-proof, and electrically neutral
Compatibility: Suitable for steel, aluminum, fiberglass, or wooden boats

Material and Coating

Filament wound composite housing
Ceramic-based coating that is bottom paint receptive and offers high surface lubricity
Designed for total immersion service in offshore oil, gas, and marine industries
Resistant to chemical exposure including hydrochloric acid, hydrofluoric acid, sulfuric acid, methanol, and sodium chloride

Electrical and Lighting Details

Direct wired with no relays or transformers
Power requirements: 12VDC at 4 amps or 24VDC at 2 amps
Lamp: 50 watt Halogen, 45,300 lux, 2,000-hour lamp life
Access: Front or rear lamp access
Installation: Requires a 3.25” diameter hole

Contact Information
Armstrong Nautical Products, a division of Vallery Industries, Inc., located at 3140 S. E. Dominica Terrace, Stuart, FL 34997. Phone: 800-226-7204 or 772-286-7204. Fax: 772-288-1339. Email: [email protected]

Catalog excerpts

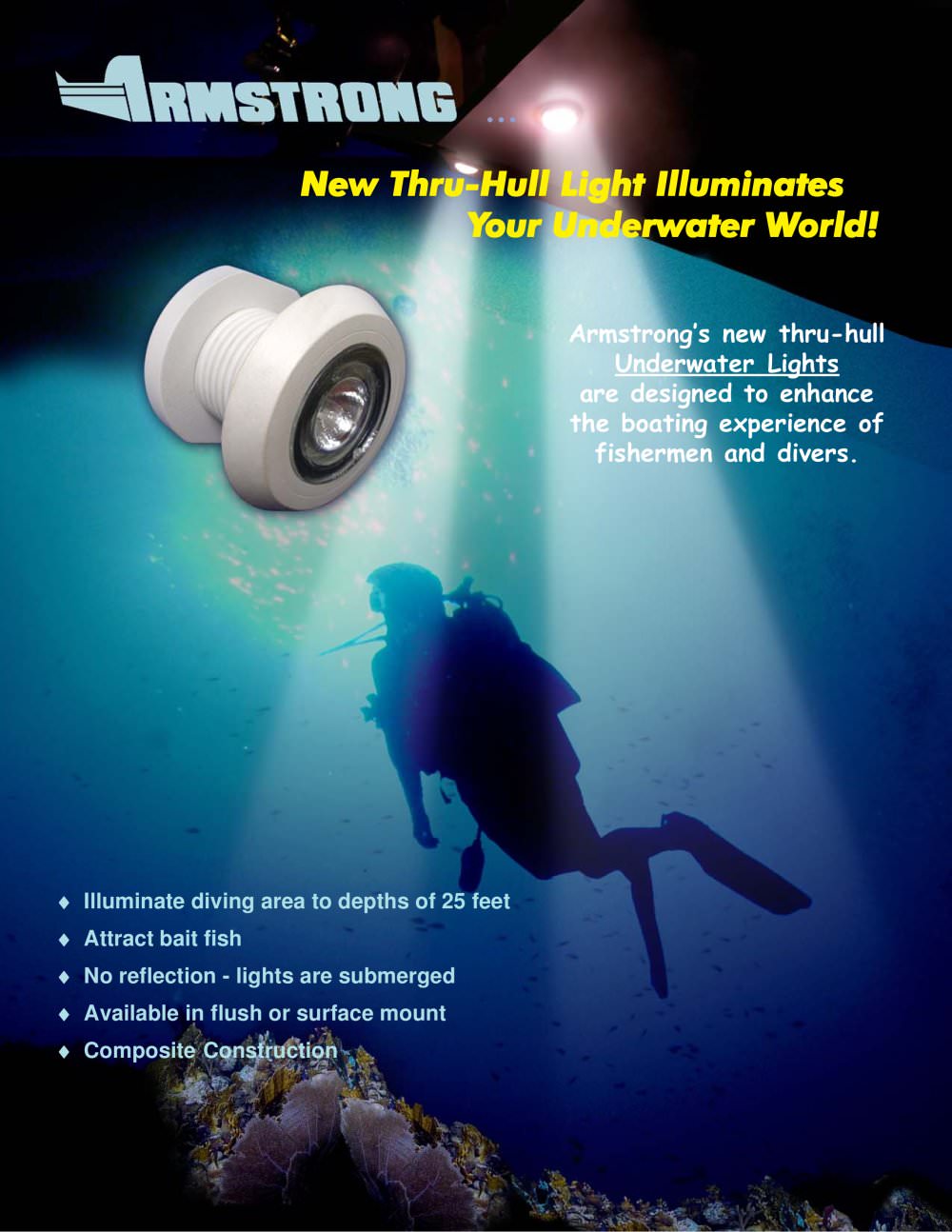

... New Thru-Hull Light Illuminates Your Underwater World! World! Armstrong’s new thru-hull Underwater Lights are designed to enhance the boating experience of fishermen and divers. ♦ Illuminate diving area to depths of 25 feet ♦ Attract bait fish ♦ No reflection - lights are submerged ♦ Available in flush or surface mount ♦ Composite Construction

Open the catalog to page 1

Filament Wound Composite Housing Use in steel, aluminum, fiberglass or wooden boats Ceramic based coating ♦ Bottom paint receptive ♦ High surface lubricity ... No chemical change when combination with sulfuric acid Direct wired: ♦ 2,000 hour lamp life Front or rear lamp access Available in surface mount and flush mount styles 3.25" diameter hole required

Open the catalog to page 2
