Access Hatches

Access Hatches
1 / 2 PagesView full catalog

Access Hatches

Product catalog summary
Product Overview: Armstrong Watertight Deckplates are designed to protect boats, equipment, and reputation by completely sealing against water intrusion. They are suitable for use behind bulkheads, radar arches, wireways, and motor wells.
Cost Efficiency: The deckplates are cost-effective due to the absence of a trim ring, fasteners, sealant, or caulking, which eliminates clean-up and the risk of lost, broken, or dirty parts. They offer easy installation and tool-free operation.
Specifications: The deckplates are available in black, cream, or white and are made in the USA. The dimensions for different models are as follows:
  • DP-6: 8 inches outside dimension, 6.75 inches deck opening size
  • DP-8: 10 inches outside dimension, 8.75 inches deck opening size
  • DP-10: 12 inches outside dimension, 10.75 inches deck opening size
  • DP-10x20: 11.25 x 21.25 inches outside dimension, 10 x 20 inches deck opening size with radius corners
Material and Performance: The deckplates are constructed from materials with the following mechanical properties:
  • Tensile Strength: 3,000 psi (21 MPa)
  • Flex Modulus: 200,000 psi (1,379 MPa)
  • Izod Impact: 1.7 ft-lbs/in (91 J/m)
They exhibit excellent to good resistance in various conditions such as oil, fuel, weather aging, oxidation, heat aging, water swell, and flame resistance.
Contact Information: Armstrong Nautical Products can be contacted at 3140 S. E. Dominica Terrace, Stuart, FL 34997, via phone at (800) 226-7204 or (772) 286-7204, and fax at (772) 288-1339. More information is available at www.armstrongnautical.com.
See more

Catalog excerpts

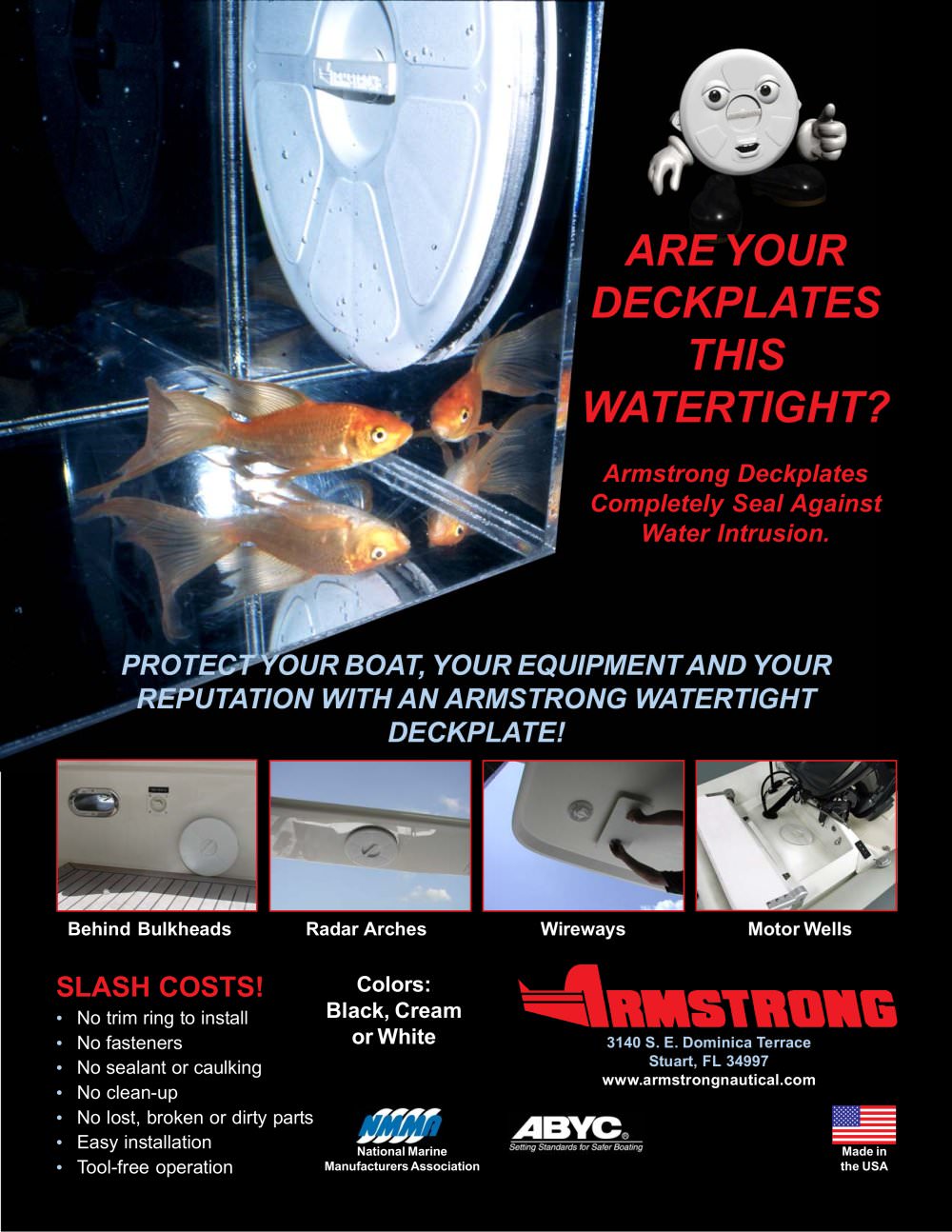

Access Hatches-1

Armstrong Deckplates Completely Seal Against Water Intrusion. PROTECT Y OUR BOAT, YOUR EQUIPMENT AND YOUR REPUTATION WITH AN ARMSTRONG WATERTIGHT Behind Bulkheads Radar Arches Motor Wells SLASH COSTS! • No trim ring to install • No lost, broken or dirty parts • Easy installation • Tool-free operation Black, Cream National Marine Manufacturers Association Setting Standards tor Sater Boating

 Open the catalog to page 1
Access Hatches-2

Deckplate Assembly View and Dimensions Deckplate Assembly View and Dimensions Watertight Seal Technical Data Deckplate Structural Material X = Excellent G = Good F = Fair P = Poor

 Open the catalog to page 2
