AQLBLTX Product Specification

AQLBLTX Product Specification

AQLBLTX Product Specification

Product catalog summary
Overview
The AQLBLTX Lifebuoy Light is certified by ATEX and IECEx, ensuring it is safe for use in hazardous marine environments. It is suitable for installation on lifebuoys in zones 0, 1, and 2, with a T4 Temperature Class rating for environments with gas auto ignition temperatures of ≥135℃.

Features and Benefits
  • Powerful white flashing LED light
  • Gravity sensor for floating LED lamp head
  • Water sensors for automatic activation
  • Compact and simple design
  • Easy installation with fixing clip
  • Maintenance-free with a five-year battery life
  • Tamper-proof design

Technical Specifications
  • Battery: Lithium Battery
  • Light Source: LED
  • Chromaticity: White
  • Function: Flashing type
  • Flash Frequency: 50 – 70 times/min
  • Luminous Intensity: ≥2.0cd
  • Operation Life: ≥20h over 2.0cd (15hrs at -1ºC)
  • Storing Temperature: -35ºC – +85ºC
  • Working Temperature: -1ºC – +30ºC
  • Expiry Date: 5 years
  • Weight: Light: 180g / Clip: 36g
  • Dimension: Main body: ø90 x 133mm
  • Activation: Automatic via gravity switch and water sensors
  • Performance: Fire-resistant, oil-resistant, mould-proof, corrosion-proof, water-proof, UV resistant
  • Environmental Performance: RoHS compliant and asbestos-free

Standards and Certifications
  • Standards: MSC.81(70) as amended, EN 60079-0:2018 / IEC 60079-0:2017, EN 60079-11:2012 / IEC 60079-11:2011, EN 60079-28:2015 / IEC 60079-28:2015
  • Certifications: MED & USCG; ATEX & IECEx
  • Ex Marking: II 1G Ex ia op is IIC T4 Ga -35ºC≤Ta≤85ºC (Zone 0,1,2)

Fitting Instructions
  • Compatible with all lifebuoys, avoid electrostatic charge conductive locations
  • Includes clip and rope for secure attachment
  • Automatically deploys with lifebuoy when thrown into water

Operation
  • Activated by gravity and water sensors
  • LED lamp floats above water, flashing white light with ≥2.0cd intensity for at least 20 hours
  • Automatically turns off when removed from water

Maintenance
  • Annual inspection for damage or corrosion
  • Test by immersing sensors in water
  • Clean with a damp cloth to avoid electrostatic discharge
  • Store in a clean, dry environment

Disposal
  • Replace after five years from manufacture date
  • Dispose according to local regulations

Safety Precautions
  • Handle Lithium battery with care
  • Do not dismantle, connect externally, recharge, or incinerate
  • Store between -35°C and +85°C
See more

Catalog excerpts

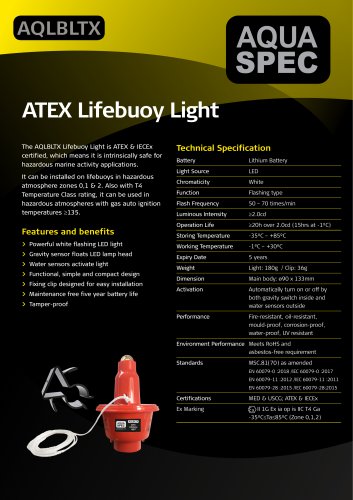

AQLBLTX Product Specification-1

ATEX Lifebuoy Light The AQLBLTX Lifebuoy Light is ATEX & lECEx certified, which means it is intrinsically safe for hazardous marine activity applications. It can be installed on lifebuoys in hazardous atmosphere zones 0,1 & 2. Also with T4 Temperature Class rating, it can be used in hazardous atmospheres with gas auto ignition temperatures >135. > Powerful white flashing LED light > Gravity sensor floats LED lamp head > Water sensors activate light > Functional, simple and compact design > Fixing clip designed for easy installation > Maintenance free five year battery life Battery Lithium Battery Chromaticity White Function Flashing type Flash Frequency 50 - 70 times/min Operation Life >20h over 2.0cd (15hrs at -1°C) Expiry Date 5 years Weight Light: 180g / Clip: 36g Dimension Main body: 090 x 133mm Activation Automatically turn on or off by both gravity switch inside and water sensors outside Performance Fire-resistant, oil-resistant, mould-proof, corrosion-proof, water-proof, UV resistant Environment Performance Meets RoHS and asbestos-free requirement Certifications MED & USCG; ATEX & lECEx

 Open the catalog to page 1
AQLBLTX Product Specification-2

> The lifebuoy light is suitable to be installed with all types of lifebuoys, but should not be installed in an electrostatic charge conductive location. The capacitance of unearthed conductive parts is 15pF. > It comes with a clip and rope. The clip should be mounted adjacent to the lifebuoy, and the light placed on the clip and firmly tied to the lifebuoy with the rope. > When the lifebuoy is thrown into the water, the light must be automatically pulled from the clip and thrown into the water with the lifebuoy. > The light was designed with a gravity sensor and water sensor double activation...

 Open the catalog to page 2
