Product catalog summary

Product Overview: The AL60LP-W is a polycarbonate lighting solution designed for versatile mounting surfaces. It features a robust construction suitable for underwater applications.

Specifications:

Bulb Type: Equipped with six white LEDs, each consuming 5 watts.
Lumens: Provides a brightness of 900 lumens.
Light Life: The LEDs have an approximate lifespan of over 20,000 hours.
Lens Type: Utilizes optics lenses.
Housing: Constructed with polycarbonate housing, bronze mounting hardware, and an aluminum insert.
Power Supply: Operates on a 12-volt system with a running current of 7 amps or a 24-volt system with a running current of 3 amps.

Installation Guidelines:

Depth: Can be installed between 6 inches to 48 inches below the waterline, with lenses tested to withstand depths of up to 300 feet.
Spacing: Recommended spacing between lights is 6 to 8 feet.

Maintenance: Bulb replacement can be performed from within the vessel, ensuring ease of maintenance.

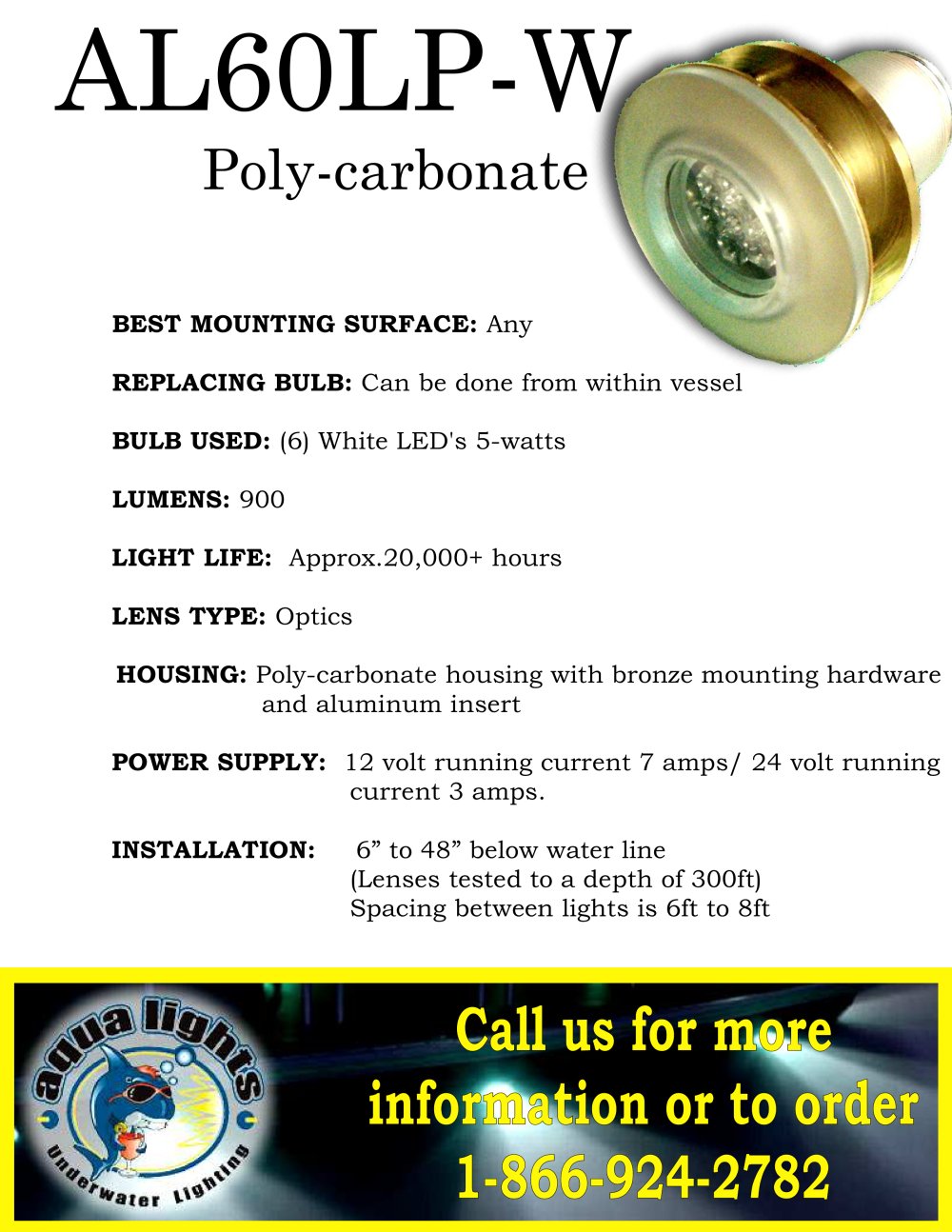

Catalog excerpts

BEST MOUNTING SURFACE: Any REPLACING BULB: Can be done from within vessel BULB USED: (6) White LED's 5-watts LIGHT LIFE: Approx.20,000+ hours LENS TYPE: Optics HOUSING: Poly-carbonate housing with bronze mounting hardware POWER SUPPLY: 12 volt running current 7 amps/ 24 volt running 6" to 48" below water line (Lenses tested to a depth of 300ft) Spacing between lights is 6ft to 8ft
