Status Regulators Brochure
1 / 8Pages

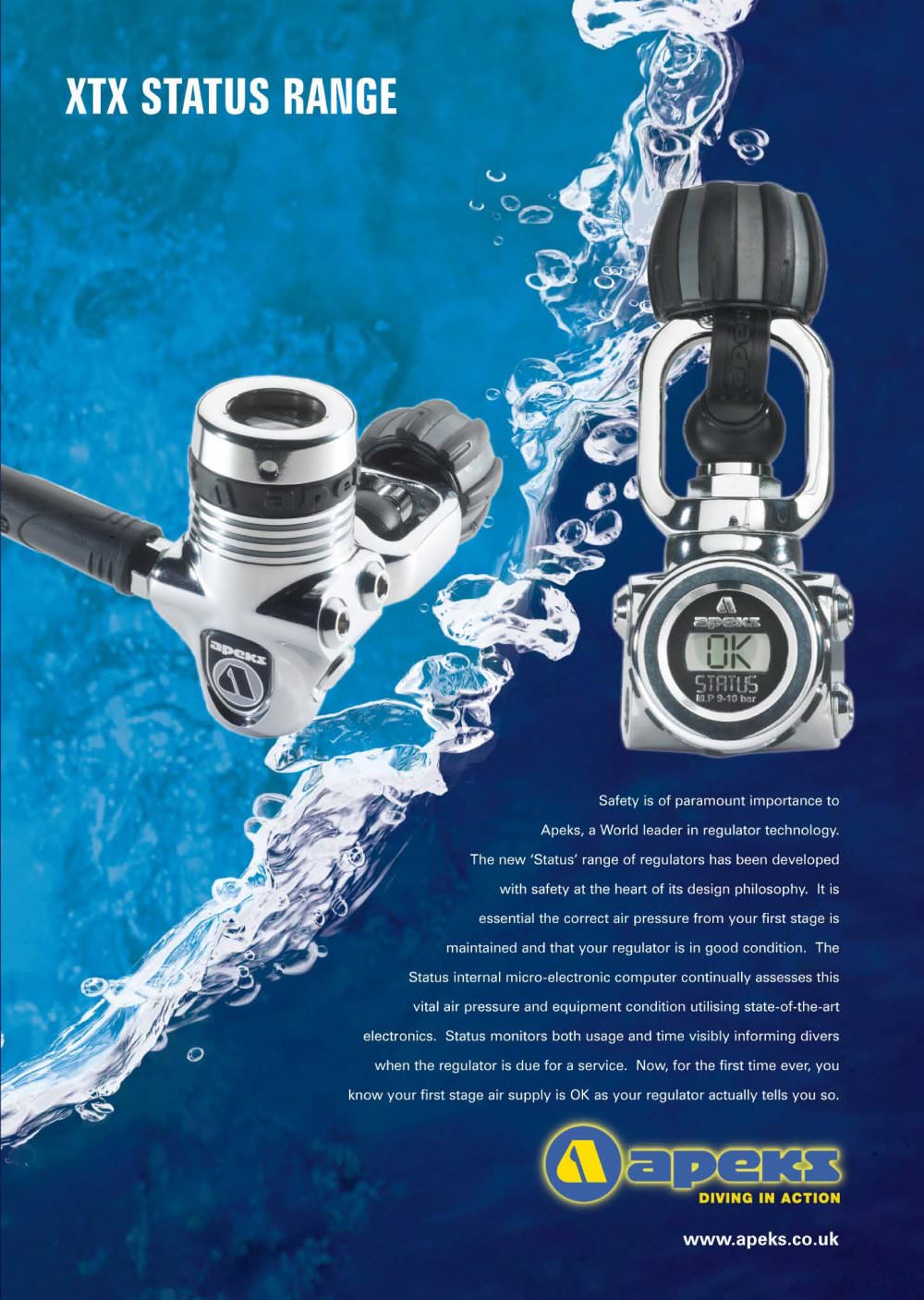

Safety is of paramount importance to Apeks, a World leader in regulator technology. The new 'Status' range of regulators has been developed with safety at the heart of its design philosophy. It is essential the correct air pressure from your first stage is maintained and that your regulator is in good condition. The Status internal micro-electronic computer continually assesses this vital air pressure and equipment condition utilising state-of-the-art electronics. Status monitors both usage and time visibly informing divers when the regulator is due for a service. Now, for the first time ever, you know your first stage air supply is OK as your regulator actually tells you so.

XTX STATUS TECHNICAL FEATURES The Status is an electronic unit which gives the diver the option to visually check the condition of the first stage regulator before a dive begins. High pressure air enters through the first stage connection filter as in a conventional Apeks first stage. This exerts enough pressure on the primary diaphragm to compress the large spring and allows the H.R Valve Spring to close the H.R Valve, preventing further H.R air flow. This maintains medium pressure air until the diver inhales. In the Status first stage medium pressure is monitored and assessed by a...

Status Display Medium Pressure set too high. Medium Pressure set correctly. service period exceeded. Load Transmitte Sensor Pins Locating Plug Valve Lifter Medium Pressure Lifter Orifice Of the major diving incidents investigated by the HSE (Health and Safety Executive) over a three year period almost half of all regulators tested did not meet the performance requirements of the European Standard for Diving Equipment (EN250). The HSE stated that lack of maintenance, servicing and cleaning were major contributory factors. The HSE recommends the need for regul servicing and maintenance of...

The flagship of the Apeks Status first stage regulator range. • All medium pressure ports are 3/8" UNF so that the reversible XTX second stage can mount to either side of the first stage • Balanced for superior performance • The FSR Status comes standard with an environmental dry kit, keeping water and contaminants out and also improving the model's resistance to freezing • Tough two shot moulded 300 bar DIN hand • Cosmetic ring and co-moulded yoke knob • Robust compact forged body • 4 angled medium pressure ports 3/8" UNF • 2 angled high pressure ports 7/16" UNF • Removable Arcap valve...

Solid forged body suitable for extreme All medium pressure ports are 3/8" UNF so that the reversible XTX second stage can mount to either side of the first stage Balanced for superior performance The FST Status comes standard with an environmental dry kit, keeping water and contaminants out and also improving the model's Metal 300 bar DIN handwheel or 2 shot moulded yoke handwheel 4 angled medium pressure ports 3/8" UNF 2 angled high pressure ports 7/16" UNF Luxurious satin silver chrome finish The complete XTX100 Status regulator features the FST Status first stage and the XTX100 second...

All medium pressure ports are 3/8" so that the reversible XTX second stage can Balanced for superior performance An environmental dry kit comes as standard 4 medium pressure ports 3/8" UNF mounted on a swivel turret 2 high pressure ports 7/16" UNF Polished chrome finish Metal 300 bar DIN handwheel or 2 shot moulded yoke handwheel The complete XTX50 Status regulator features the DST Status first stage and the XTX50 second stage. For details of the second stage please refer to page 5 of the 'XTX Regulator Range' brochure.

• Compact first stage • Balanced for superior performance • DS4 Status first stage comes standard with an environmenta dry kit suitable for cold water diving 4 medium pressure ports 3/8" UNF 1 high pressure port 7/16" UNF Metal 300 bar DIN handwheel or 2 shot moulded yoke The XTX40 Status regulator features the DS4 Status first stage and XTX40 second stage. A rugged high performance regulator suitable for cold water diving. For full details of the XTX40 second stage please refer to page 6 of the 'XTX Regulator Range' brochure.

Worldwide Distribution Centres Apeks products are backed by a professional service with a worldwide distribution network. Africa, America, Asia, Australasia, Europe - wherever you dive you should be able to locate suitably qualified technicians to keep your equipment in optimum condition. Our dealers will also be pleased to give you information on our products and service. You can locate details of your nearest Authorised Apeks Dealer by contacting your distributor. Details can be found on Apeks regulators are supplied with a lifetime guarantee. Apeks Marine Equipment Ltd. Neptune Way,...
