CAPSTAN CATALOGUE

Product catalog summary

Overview: Andersen Capstans are renowned for their high-quality stainless steel construction, designed for efficiency and durability in mooring applications. They are available in both hydraulic and electric models, catering to yachts ranging from 11 to 70 meters.

Specifications: The capstans feature a high-polished stainless steel surface with Power Ribs© for superior grip without excessive wear. Internal components are made from aluminum bronze for a lightweight yet robust build. Custom color options and drive units (hydraulic or electric DC) are available.

Electric Capstan Specifications: Electric models are available in 12V and 24V, with varying pulling loads and line speeds. For example, the C500 E model offers a max pulling load of 500 kg with a line speed of 11.0 meters/minute at 0 kg load.

Hydraulic Capstan Specifications: Hydraulic models range from C1000 H to C4500 H, with max pulling loads from 1000 kg to 4500 kg. They operate at a max pressure of 140 bar, with varying oil flow rates and line speeds.

Design and Manufacturing: Andersen's factory in Vejle, Denmark, utilizes advanced CNC-controlled machinery and cutting-edge technology, ensuring precision and reliability. The capstans are designed for longevity, with a focus on reducing rope wear and maintaining grip over time.

Installation and Maintenance: The modular design simplifies installation and ensures precise alignment. Maintenance is facilitated by easy access to mechanical parts without disturbing the motor unit.

Conclusion: Andersen Capstans combine elegance, power, and efficiency, making them a preferred choice for yacht owners seeking reliable and aesthetically pleasing mooring solutions.

Catalog excerpts

Stainless Steel Winches

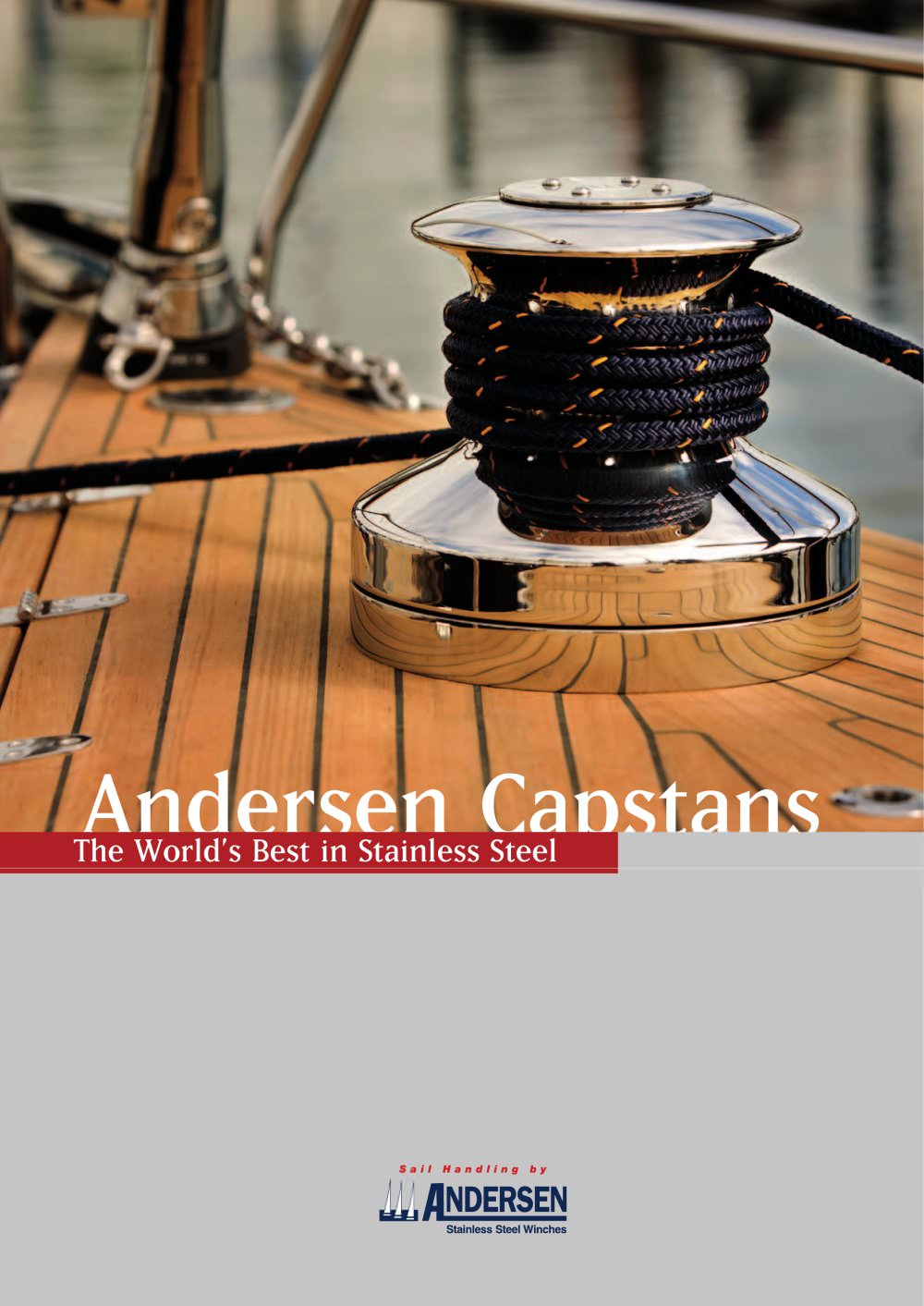

Open the catalog to page 1

Mooring Capstan Andersen Capstans© include: High quality, unique and strong construction that increases the efficiency All surfaces in high polished everlasting Stainless Steel Grip provided by Power Ribs© ensures a snag-free superior grip on the mooring lines without causing excessive wear Excellent balance of heavy load versus line speed Internal parts made of aluminum bronze which provides a light, stiff and rugged construction that increases the efficiency Custom color shades available to special order Option of hydraulic or electric DC powered drive units Electric units are complete including...

Open the catalog to page 2

ANDERSEN Electric Capstan Specifications Load meter/minute Load meter/minute ANDERSEN Electric Capstan Measurements Electric Capstan Model Max. Rope Weight Weight Weight Size mm Total kg Winch kg Unit kg Motor Motor ANDERSEN Hydraulic Capstan Specifications Hydraulic Capstan Max. Pull Oil Flow at Max. Max. Recommended Max Line Speed Max. Recommended Max Line Speed Model in kg 1 meter Line/minute Pressure Flow at 100% Load at 100% Load Flow at 50% Load at 50% Load (*) at full load and 1 Capstan in use ANDERSEN Hydraulic Capstan Measurements Hydraulic Capstan Weight Total Weight Winch Weight Unit...

Open the catalog to page 3

elegance, power and efficiency For more than 50 years ANDERSEN Winches© has been a bench- mark of Danish design and the global market leader in manu- facturing high quality manual as well as powered Stainless Steel winches for sail handling. The ANDERSEN name is synonymous with precision, reliability and the ability to adapt to any situation. Based on the solid foundation of these achievements and expertise we have developed a full range of electric DC or hydraulic powered Stainless Steel Capstans designed for middle sized Yachts from n meters up to 70 meters Super Yachts. The capstan range features...

Open the catalog to page 4
