ASP-20 The agile electric ferry

Product catalog summary

Overview
Ampereship specializes in manufacturing high-quality, emission-free electric solar-powered ships and ferries for commercial shipping. Their ships are designed to minimize operating costs while maximizing profits, with customer involvement in every construction phase.

Product Specifications: ASP-20 Electric-Solar-Passenger Ship/Ferry

Emission-free, noiseless, and economical operation.
Equipped with a powerful solar system and fully optimized energy system for maximum efficiency.
Streamlined hull shape for minimal resistance and mass, ensuring robustness and low maintenance costs.
Individually engineered for specific operational areas with high safety and redundant systems.
ES-TRIN and class approval available.

Main Features

Length: 14.65 m
Width: 4.45 m
Draught: Approximately 0.95 m
Height above waterline: 2.60 m without mast
Service speed: 8 km/h
Maximum speed: 15 km/h

Capacity and Accessibility

Accommodates 20 passengers and 2 wheelchairs.
Optional features include a handicap gangway and accessible toilet.
Remote maintenance and customizable interior options available.

Propulsion and Power

Rudder propellers: 1 x 60 kW
Bow thruster: 1 x 20 kW
Batteries: Lithium-Polymer
Solar modules: 4.8 kWp with a total area of approximately 21.5 m²
Overall capacity: 18.72 kWp
Motorization and dimensions can be customized up to 75 kW, with a 360° rotatable drive propeller.

Cost Comparison
A cost comparison chart illustrates the economic benefits of solar-electric propulsion over diesel engines, based on an example ship of 18.5m x 5.3m, accommodating 35-80 passengers, operating from April to October, 7 days a week, for 5 hours a day at 10 km/h.

Contact Information
Ampereship GmbH, An der Werft 17, 18439 Stralsund, Germany. Website: www.ampereship.com, Email: [email protected], Phone: +49 3831 27 52-0.

Catalog excerpts

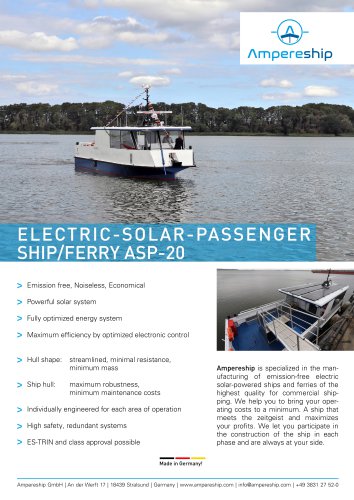

Ampereship is specialized in the manufacturing of emission-free electric solar-powered ships and ferries of the highest quality for commercial shipping. We help you to bring your operating costs to a minimum. A ship that meets the zeitgeist and maximizes your profits. We let you participate in the construction of the ship in each phase and are always at your side. > Emission free, Noiseless, Economical > Powerful solar system > Fully optimized energy system > Maximum efficiency by optimized electronic control > Hull shape: streamlined, minimal resistance, minimum mass > Ship hull: maximum robustness, minimum maintenance costs > Individually engineered for each area of operation > High safety, redundant systems > ES-TRIN and class approval possible Ampereship GmbH | An der Werft 17 | 18439 Stralsund | Germany | www.ampereship.com | [email protected]

Open the catalog to page 1

modern manoeuvring platform berthing magnet rear view front view Main features Maximum speed: 15 km/h Individual interior options Overall capacity: 18,72 kWp Motorization and dimensions variable according to customer requirements up to 75kW possible. Drive propeller rotatable 360°. Ampereship GmbH | An der Werft 17 | 18439 Stralsund | Germany | www.ampereship.com | [email protected] | +49 3831 27 52-0
