Product catalog summary
Overview
The document provides technical specifications for the Amiaud SEANOX leaning posts, available in standard and XL models. These products are designed for semi-rigid or open boats, offering comfort and safety for both fishing and recreational navigation.

Specifications
The leaning posts are available in two materials: stainless steel, known for its durability, and aluminum, which is lighter and more economical. They feature a black epoxy powder coating for marine environment resistance. The posts include adjustable slots for easy installation and adjustment.

Models and Dimensions
  • Standard Model: Stainless Steel (51 kg), Aluminum (37 kg)
  • XL Model: Stainless Steel (55 kg), Aluminum (41 kg)
Dimensions for both models are provided, with the standard model measuring 734 mm and the XL model 947 mm.

Features
  • Storage space under the post for coolers and safety rafts, secured with straps.
  • Removable tray under the seat with a strap for easy transport of fishing gear.
  • Compatible with various livewell sizes.
  • Customizable with options like handles and backrests.

Accessories
  • Handles (Ref. 496042)
  • Cup holders (Ref. 496043)
  • Lure holders (Ref. 496044)
The backrest can hold up to 5 rods in the standard version and up to 6 in the XL version.

Protective Covers
Developed with NV Equipment, the protective covers are made from high-quality Stamoid Light PVC fabric by Serge Ferrari. Covers are available for both standard and XL models, as well as for the backrests.

Installation Recommendations
Stainless steel inserts are recommended for installation, with specific references provided for different sizes (M6 and M8).
See more

Catalog excerpts

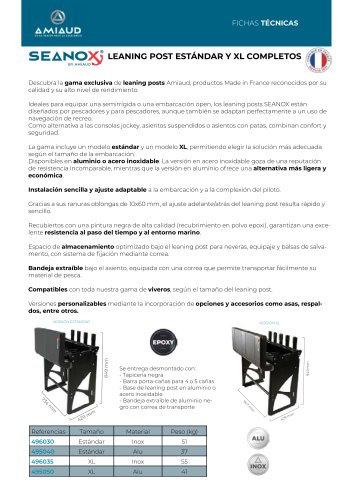

FC - 496030-1

FICHAS TECNICAS LEANING POST ESTANDAR Y XL COMPLETOS Descubra la gama exclusiva de leaning posts Amiaud, productos Made in France reconocidos por su calidad y su alto nivel de rendimiento. Ideales para equipar una semirrigida o una embarcacion open, los leaning posts SEANOX estan disenados por pescadores y para pescadores, aunque tambien se adaptan perfectamente a un uso de navegacion de recreo. Como alternativa a las consolas jockey, asientos suspendidos o asientos con patas, combinan confort y seguridad. La gama incluye un modelo estandar y un modelo XL, permitiendo elegir la solucion mas adecuada segun el tamano de la embarcacion. Disponibles en aluminio o acero inoxidable. La version en acero inoxidable goza de una reputacion de resistencia incomparable, mientras que la version en aluminio ofrece una alternativa mas ligera y economica. Instalacion sencilla y ajuste adaptable a la embarcacion y a la complexion del piloto. Gracias a sus ranuras oblongas de 10x60 mm, el ajuste adelante/atras del leaning post resulta rapido y sencillo. Recubiertos con una pintura negra de alta calidad (recubrimiento en polvo epoxi), garantizan una exce-lente resistencia al paso del tiempo y al entorno marino. Espacio de almacenamiento optimizado bajo el leaning post para neveras, equipaje y balsas de salva-mento, con sistema de fijacion mediante correa. Bandeja extrai'ble bajo el asiento, equipada con una correa que permite transportar facilmente su material de pesca. Compatibles con toda nuestra gama de viveros, segun el tamano del leaning post. Versiones personalizables mediante la incorporacion de opciones y accesorios como asas, respal-dos, entre otros. VERSION ESTANDAR - Tapiceria negra - Barra porta-canas para 4 o 5 canas - Base de leaning post en aluminio o acero inoxidable - Bandeja extrai'ble de aluminio negro con correa de transporte

 Open the catalog to page 1
FC - 496030-2

FICHAS TECNICAS AMIAUD DIMENSIONES ESTANDAR DIMENSIONES XL Ranuras oblongas -para paso de correa Recomendamos el uso de nuestros insertos de acero inoxidable para la instalacion Opciones adicionales

 Open the catalog to page 2
FC - 496030-3

FICHAS TECNICAS AMJAUD Productos El respaldo solo admite hasta 5 canas en la version estandar y hasta 6 canas en la version XL. Las fundas de proteccion del leaning post SEANOX estandar y XL han sido desarrolladas con NV Equipment. Estan fabricadas con teji-do Stamoid Light de Serge Ferrari, una lona de PVC de alta gama.

 Open the catalog to page 3
