Boat Model Specifications

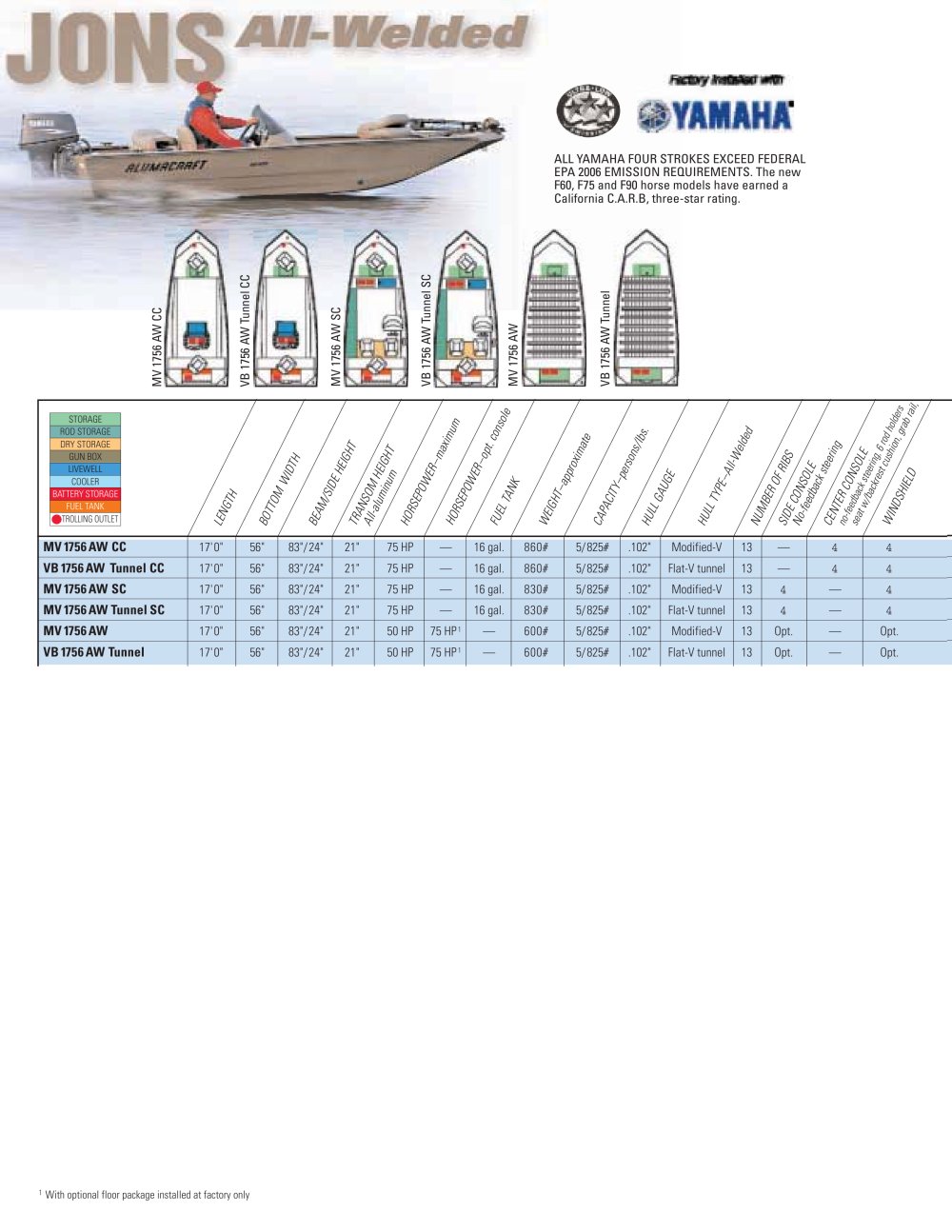

The document provides detailed specifications for various boat models, primarily the MV 1756 AW and VB 1756 AW series, including Console Center (CC), Side Console (SC), and Tunnel variants. Key parameters include:

• Length: 17 feet
• Bottom Width: 56 inches
• Beam/Side Height: 83 inches / 24 inches
• Transom Height: 21 inches
• Horsepower: 50 HP to 75 HP (some models list 75 HP max)
• Fuel Tank Capacity: 16 gallons
• Approximate Weight: 830 to 860 lbs
• Hull Gauge: 0.102 inches
• Hull Type: Modified-V or Flat-V tunnel
• Number of Ribs: 13
• Side and Center Consoles: Various configurations with 4 rod holders and seating options

Construction and Features

All hulls are all-welded aluminum with no-feedback steering systems. Seating includes 6 rod holders, seats with backrest cushions, and grab rails. Optional features include an all-aluminum console and optional horsepower configurations.

Environmental Compliance

All Yamaha four-stroke engines exceed the Federal EPA 2006 emission requirements. The F60, F75, and F90 models have earned a California C.A.R.B. three-star rating, indicating high environmental standards.

Storage and Equipment

The boats include multiple storage compartments:

• Rod storage
• Dry storage compartments
• Gun box with cushioned seat
• Livewell (aerated)
• Cooler storage
• Battery storage
• Fuel tank storage

Additional features include trolling motor outlets, drop deck navigation and courtesy lights, power points, bilge pumps, spray-in floor liners (Line-X), and optional camouflage paint.

Electrical and Accessories

Electrical components include 12/24V trolling motor harnesses compatible with Minn Kota and Lowrance systems. Cooler placement is below flip-flop seats. Fishing seats or flip-flop seats are available at the console.

Summary of Critical Parameters and Recommendations

• Ensure selection of appropriate horsepower (50-75 HP) based on intended use.
• All hulls are constructed with .102" aluminum gauge for durability.
• Environmental compliance is guaranteed with Yamaha four-stroke engines meeting or exceeding EPA and C.A.R.B. standards.
• Storage compartments are designed for fishing and recreational needs, including rod and gun storage.
• Optional features such as camouflage paint and all-aluminum consoles enhance customization.
• No-feedback steering systems improve handling and control.
