JONS Riveted

Product catalog summary

Specifications:

Models: 1236, 1232, 1032
Length: 12'0" for 1236 and 1232, 10'0" for 1032
Bottom Width: 36" for 1236, 32" for 1232 and 1032
Beam/Side Height: 55"/19" for 1236, 48"/17" for 1232 and 1032
Transom Height: 15" for all models
Maximum Horsepower: 15 HP for 1236, 7 HP for 1232, 3 HP for 1032
Weight: Approximately 125 lbs for 1236, 105 lbs for 1232, 95 lbs for 1032
Capacity: 3 persons/540 lbs for 1236, 2 persons/455 lbs for 1232, 2 persons/365 lbs for 1032
Hull Gauge: .053" for all models
Hull Type: Flatbottom
Number of Ribs: 5 for 1236, 4 for 1232, 2 for 1032
Side Steering: Optional for all models
Color: Olive Drab Green

Features:

Livewell: Available in center seat
Storage: Optional box available
Center Bench Seat: Available
Camouflage Seat: Available with clamp
Light Bracket and Trolling Motor Bracket: Available

Material and Construction:

Paint: Olive Drab Green
Pistons: Strong, forged pistons for added durability
Construction: Aluminum alloys compressed in molds under extreme pressure for stronger pistons

Catalog excerpts

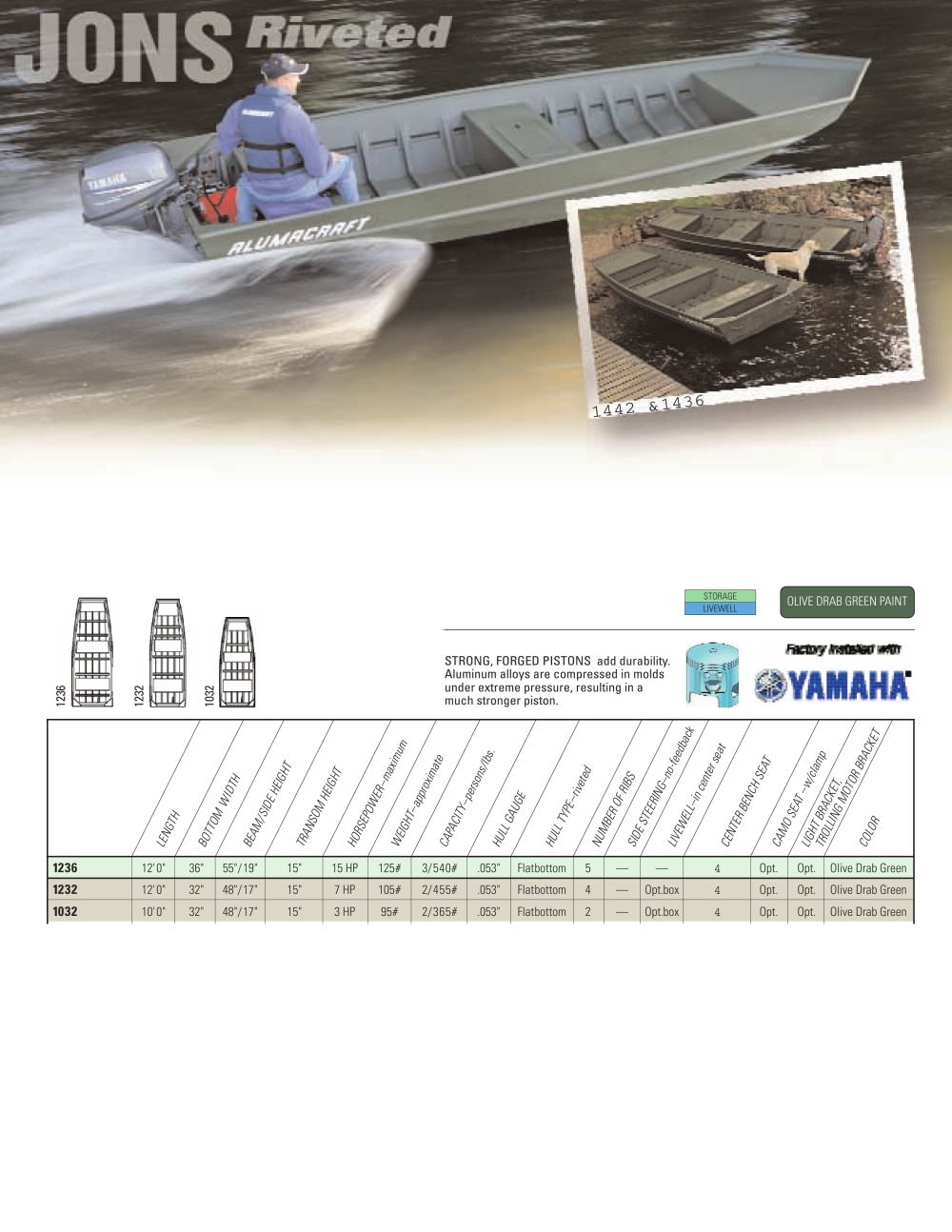

436 1442 & 1 t SEA T se a te r CH ce n TER CEN CAM BEN – in OS EAT –w L IG / c la HT mp TRO BRA L L IN C K E T, GM OTO RB RAC COL KET OR a ck edb o -fe L IV EW ES E LL TEE OF ER S ID MB NU R IN R IB S G–n d e te – riv HU LL T AU LL G HU YPE GE per TY– CAP ACI ppr T– a so n o x im s / lb a te s. um x im ma IG H RSE HO WE POW HEI OM TRA NS M/ BEA ER – GH T HT E IG S ID EH DTH WI TOM BOT GTH LE N OLIVE DRAB GREEN PAINT STRONG, FORGED PISTONS add durability. Aluminum alloys are compressed in molds under extreme pressure, resulting in a much stronger piston. 1032 1232 1236 STORAGE LIVEWELL 1236 12'0" 36" 55"/19" 15" 15 HP 125# 3/540# .053" Flatbottom 5 — — 4 Opt. Opt. Olive Drab Green 1232 12'0" 32" 48"/17" 15" 7 HP 105# 2/455# .053" Flatbottom 4 — Opt.box 4 Opt. Opt. Olive Drab Green 1032 10'0" 32" 48"/17" 15" 3 HP 95# 2/365# .053" Flatbottom 2 — Opt.box 4 Opt. Opt. Olive Drab Green
