Boat Model Specifications

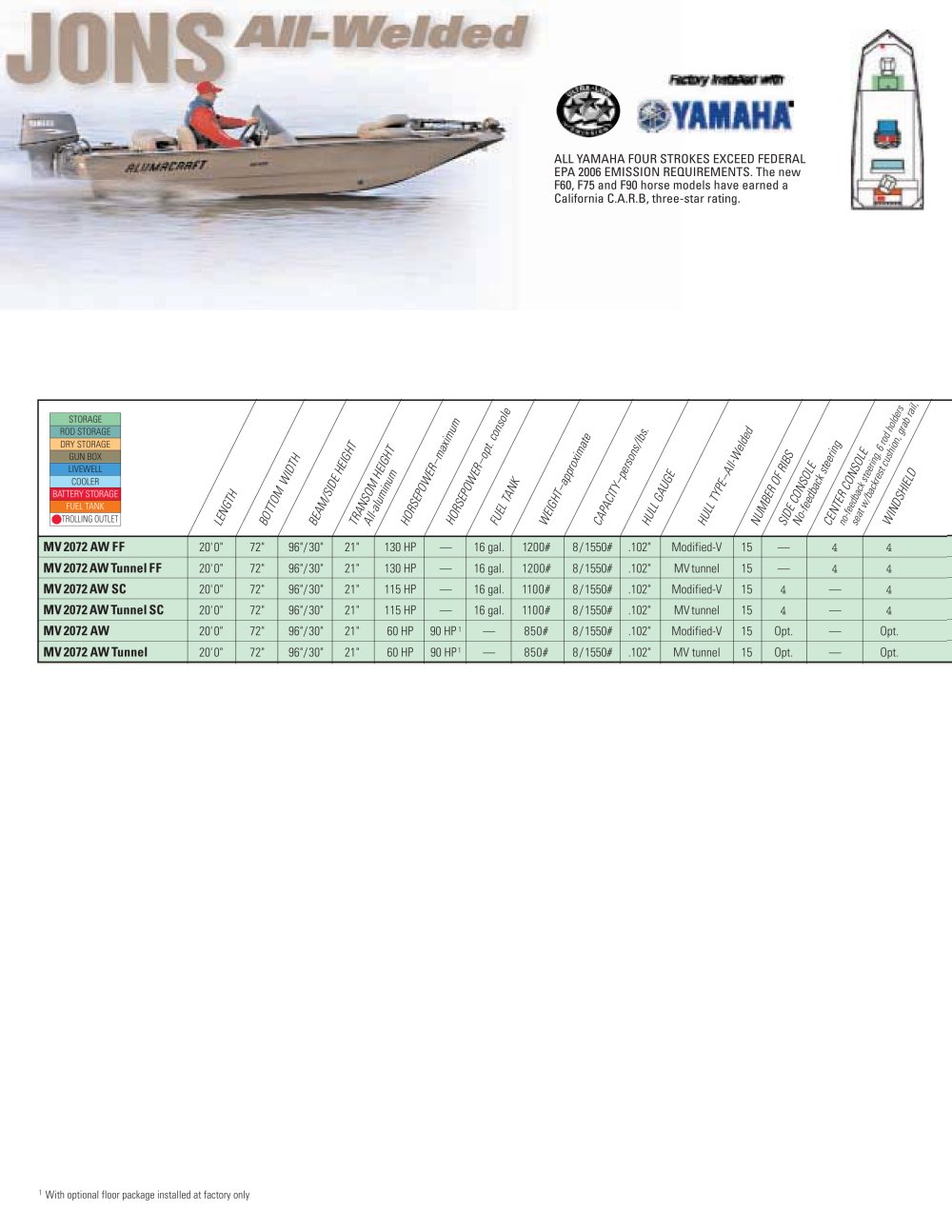

The document provides detailed specifications for the MV 2072 AW series boats, including variants such as Modified-V, Tunnel, and SC models. Key dimensions are consistent across models: length of 20 feet, bottom width of 72 inches, beam/side width of 96 inches (or 30 inches), and a transom height of 21 inches.

Horsepower ratings vary by model, ranging from 60 HP to 130 HP, with fuel tank capacity at 16 gallons. Maximum weight capacities range from 850 lbs to 1200 lbs, with approximate person capacity between 4 to 15 persons depending on the model. Hull gauge thickness is .102 inches, and hull types include Modified-V and MV tunnel designs. All hulls are all-welded construction.

Engine and Performance

Horsepower options include 60 HP, 90 HP, 115 HP, and 130 HP engines. The document notes that all Yamaha four-stroke engines exceed the Federal EPA 2006 emission requirements, with the F60, F75, and F90 models earning a California C.A.R.B three-star rating.

Structural and Design Features

• No-feedback steering system with 6 rod holders.
• Seats with backrest cushions and grab rails.
• All-aluminum construction for the optional console.
• Floor made of aluminum with sides.
• Spray-in floor liner (Line-X) for durability.
• Drop deck lights for navigation and courtesy lighting.
• Power points and bilge pump included.

Storage and Utility

The boats feature multiple storage compartments including rod storage, dry storage, gun box with cushion seat, battery storage, and aerated livewell compartments. A cooler is located below the flip-flop seat. There is also a trolling outlet and livewell aeration system.

Optional Equipment and Accessories

• Optional floor package available if installed at factory only.
• Trolling motor harness compatible with Minn Kota and Lowrance systems.
• 12/24V receptacle with tilt-trim (TT) functionality.
• Fishing seats or flip-flop seats available at console.
• Camouflage paint options in Khaki color.

Additional Notes

The document includes references to various model configurations and optional equipment, emphasizing flexibility in customization. The hull design and construction focus on durability and performance, suitable for fishing and recreational use.
