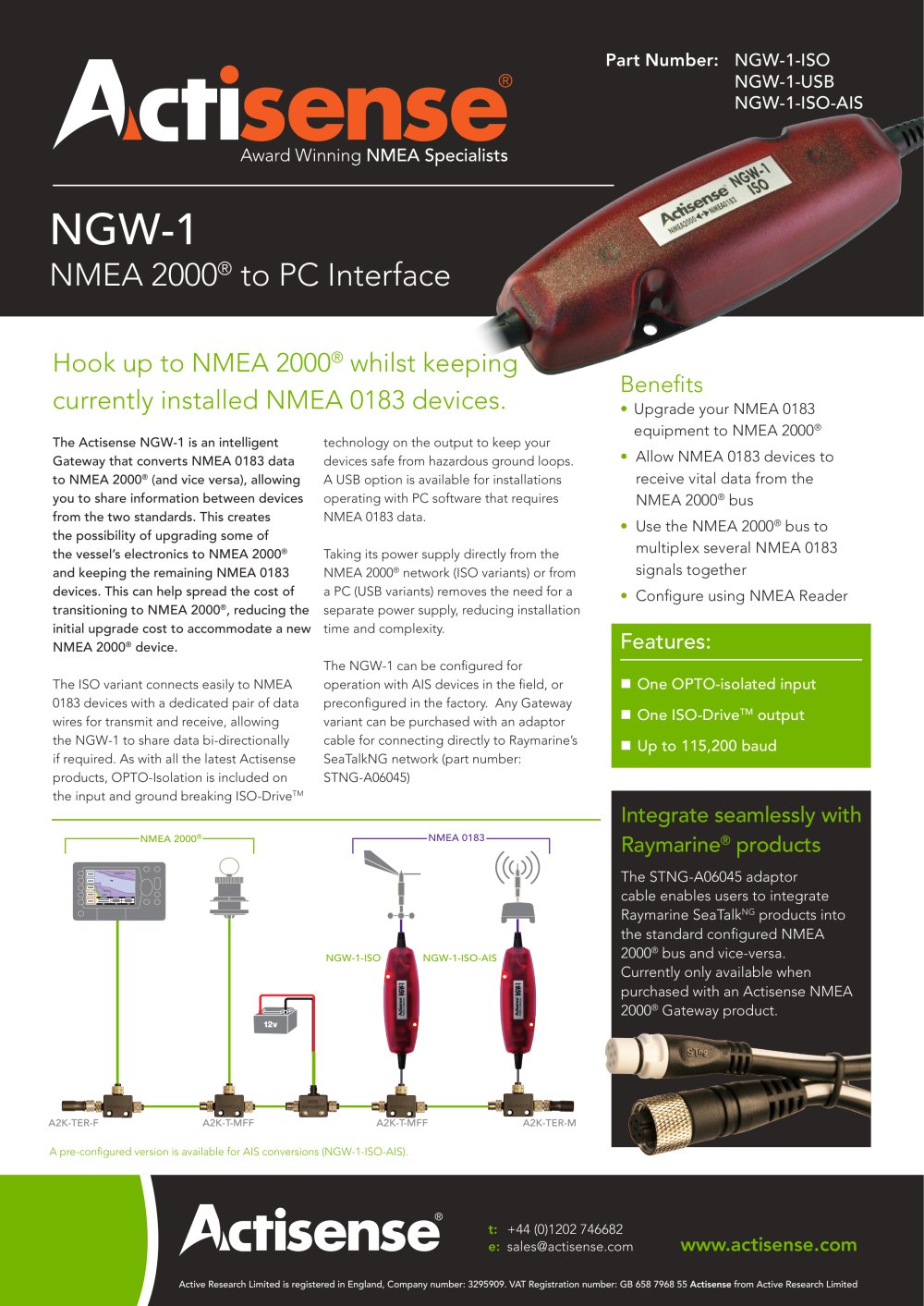

NMEA 2000® to PC Interface Hook up to NMEA 2000® whilst keeping currently installed NMEA 0183 devices. The Actisense NGW-1 is an intelligent Gateway that converts NMEA 0183 data to NMEA 2000® (and vice versa), allowing you to share information between devices from the two standards. This creates the possibility of upgrading some of the vessel’s electronics to NMEA 2000® and keeping the remaining NMEA 0183 devices. This can help spread the cost of transitioning to NMEA 2000®, reducing the initial upgrade cost to accommodate a new NMEA 2000® device. The ISO variant connects easily to NMEA 0183 devices with a dedicated pair of data wires for transmit and receive, allowing the NGW-1 to share data bi-directionally if required. As with all the latest Actisense products, OPTO-Isolation is included on the input and ground breaking ISO-DriveTM technology on the output to keep your devices safe from hazardous ground loops. A USB option is available for installations operating with PC software that requires NMEA 0183 data. Taking its power supply directly from the NMEA 2000® network (ISO variants) or from a PC (USB variants) removes the need for a separate power supply, reducing installation time and complexity. The NGW-1 can be configured for operation with AIS devices in the field, or preconfigured in the factory. Any Gateway variant can be purchased with an adaptor cable for connecting directly to Raymarine’s SeaTalkNG network (part number: STNG-A06045) • llow NMEA 0183 devices to A receive vital data from the NMEA 2000® bus • se the NMEA 2000® bus to U multiplex several NMEA 0183 signals together • Configure using NMEA Reader Features: ne OPTO-isolated input O ne ISO-DriveTM output O p to 115,200 baud U Integrate seamlessly with Raymarine® products • pgrade your NMEA 0183 U equipment to NMEA 2000® The STNG-A06045 adaptor cable enables users to integrate Raymarine SeaTalkNG products into the standard configured NMEA 2000® bus and vice-versa. Currently only available when purchased with an Actisense NMEA 2000® Gateway product. A pre-configured version is available for AIS conversions (NGW-1-ISO-AIS). Active Research Limited is registered in England, Company number: 3295909. VAT Registration number: GB 658 7968 55 Actisense

Open the catalog to page 1

All specifications are taken with reference to an ambient temperature of 25°C unless otherwise specified. All specifications correct at time of print.
