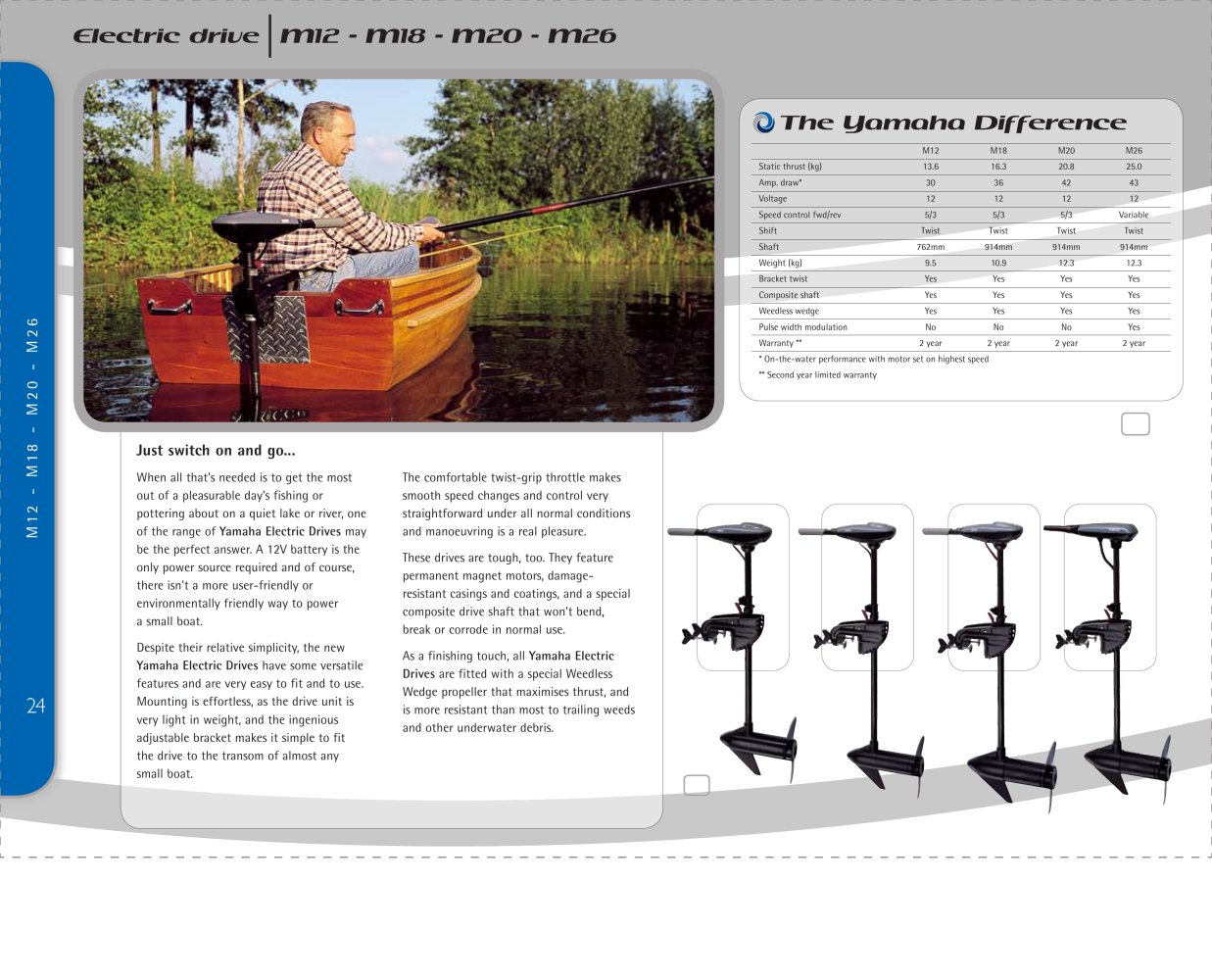

Electric drive M12 - M18 - M20 - M26

The Yamaha Difference

M12 M18 M20 M26 Static thrust (kg) 13.6 16.3 20.8 25.0 Amp. draw* 30 36 42 43 Voltage 12 12 12 12 Speed control fwd/rev 5/3 5/3 5/3 Variable Shift Twist Twist Twist Twist Shaft 762mm 914mm 914mm 914mm Weight (kg) 9.5 10.9 12.3 12.3 Bracket twist Yes Yes Yes Yes Composite shaft Yes Yes Yes Yes Weedless wedge Yes Yes Yes Yes Pulse width modulation No No No Yes Warranty ** 2 year 2 year 2 year 2 year * On-the-water performance with motor set on highest speed ** Second year limited warranty

Just switch on and go...

When all that's needed is to get the most The comfortable twist-grip throttle makes out of a pleasurable day's fishing or smooth speed changes and control very pottering about on a quiet lake or river, one straightforward under all normal conditions

M12 - M18 - M20 - M26

of the range of Yamaha Electric Drives may and manoeuvring is a real pleasure. be the perfect answer. A 12V battery is the These drives are tough, too. They feature only power source required and of course, permanent magnet motors, damage- there isn't a more user-friendly or resistant casings and coatings, and a special environmentally friendly way to power composite drive shaft that won't bend, a small boat. break or corrode in normal use. Despite their relative simplicity, the new As a finishing touch, all Yamaha Electric Yamaha Electric Drives have some versatile Drives are fitted with a special Weedless features and are very easy to fit and to use. Wedge propeller that maximises thrust, and

24

Mounting is effortless, as the drive unit is is more resistant than most to trailing weeds very light in weight, and the ingenious and other underwater debris. adjustable bracket makes it simple to fit the drive to the transom of almost any small boat.
