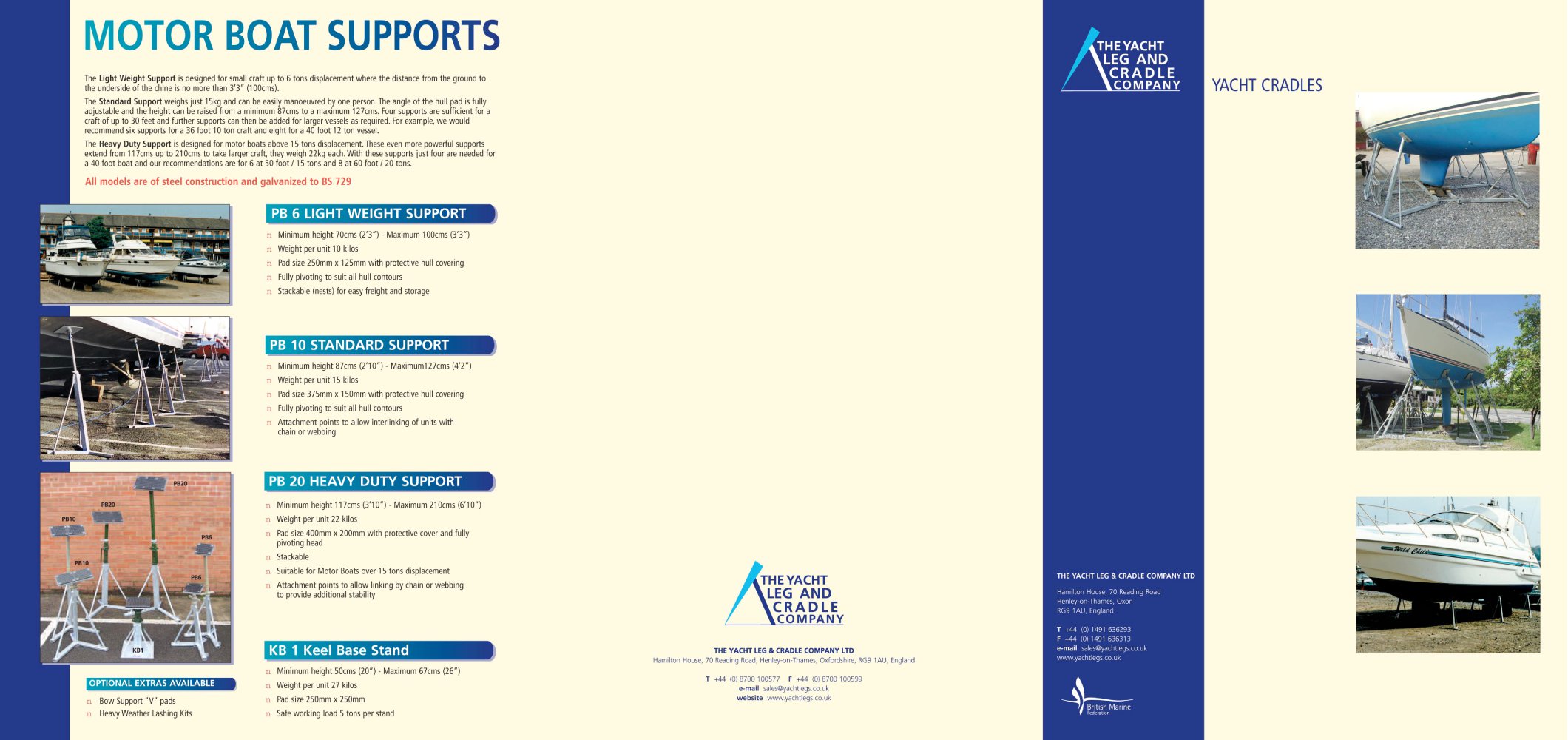

| | | THEYACHT LEG AND CRADLE COMPANY | | |
| | | |
| | | The Light Weight Support is designed for small craft up to 6 tons displacement where the distance from the ground to the underside of the chine is no more than 3'3" (100cms). The Standard Support weighs just 15kg and can be easily manoeuvred by one person. The angle of the hull pad is fully adjustable and the height can be raised from a minimum 87cms to a maximum 127cms. Four supports are sufficient for a craft of up to 30 feet and further supports can then be added for larger vessels as required. For example, we would recommend six supports for a 36 foot 10 ton craft and eight for a 40 foot 12 ton vessel. The Heavy Duty Support is designed for motor boats above 15 tons displacement. These even more powerful supports extend from 117cms up to 210cms to take larger craft, they weigh 22kg each. With these supports just four are needed for a 40 foot boat and our recommendations are for 6 at 50 foot / 15 tons and 8 at 60 foot / 20 tons. All models are of steel construction and galvanized to BS 729 | | |
| | | |
| | | |
| | | PB 6 LIGHT WEIGHT SUPPORT | | |
| | | |
| | | ■ Minimum height 70cms (2'3") - Maximum 100cms (3'3") ■ Weight per unit 10 kilos ■ Pad size 250mm x 125mm with protective hull covering ■ Fully pivoting to boat suit all hull contours ■ Stackable (nests) for easy freight and storage | | |
| | | |
| | | PB 10 STANDARD SUPPORT | | |
| | | |
| | | ■ Minimum height 87cms (2'10") - Maximum127cms (4'2") ■ Weight per unit 15 kilos ■ Pad size 375mm x 150mm with protective hull covering ■ Fully pivoting to suit all hull contours ■ Attachment points to allow interlinking of units with chain or webbing | | |
| | | |
| | | PB 20 HEAVY DUTY SUPPORT | | |
| | | |
| | | ■ Minimum height 117cms (3'10") - Maximum 210cms (6'10") ■ Weight per unit 22 kilos ■ Pad size 400mm x 200mm with protective cover and fully pivoting head ■ Stackable ■ Suitable for Motor Boats over 15 tons displacement ■ Attachment points to allow linking by chain or webbing to provide additional stability | | |
| | | THE YACHT LEG & CRADLE COMPANY LTD Hamilton House, 70 Reading Road Henley-on-Thames, Oxfordshire RG9 1AU, England T +44 (0) 1491 636293 F +44 (0) 1491 636313 e-mail sales@yachtlegs.co.uk www.yachtlegs.co.uk | | |
| | | THEYACHT LEG AND CRADLE COMPANY | | |
| | | |
| | | |
| | | KB 1 Keel Base Stand | | |
| | | THE YACHT LEG & CRADLE COMPANY LTD Hamilton House, 70 Reading Road, Henley-on-Thames, Oxfordshire, RG9 1AU, England T +44 (0) 1491 636293 F +44 (0) 1491 636313 e-mail sales@yachtlegs.co.uk website www.yachtlegs.co.uk | | |
| | | |
| | | |
| | | ■ Minimum height 50cms (20") - Maximum 67cms (26") ■ Weight per unit 27 kilos ■ Pad size 250mm x 250mm ■ Safe working load 5 tons per stand | | |
| | | OPTIONAL EXTRAS AVAILABLE | | |
| | | |
| | | Bow Support "V" pads Heavy Weather Lashing Kits | | |
| | | |
