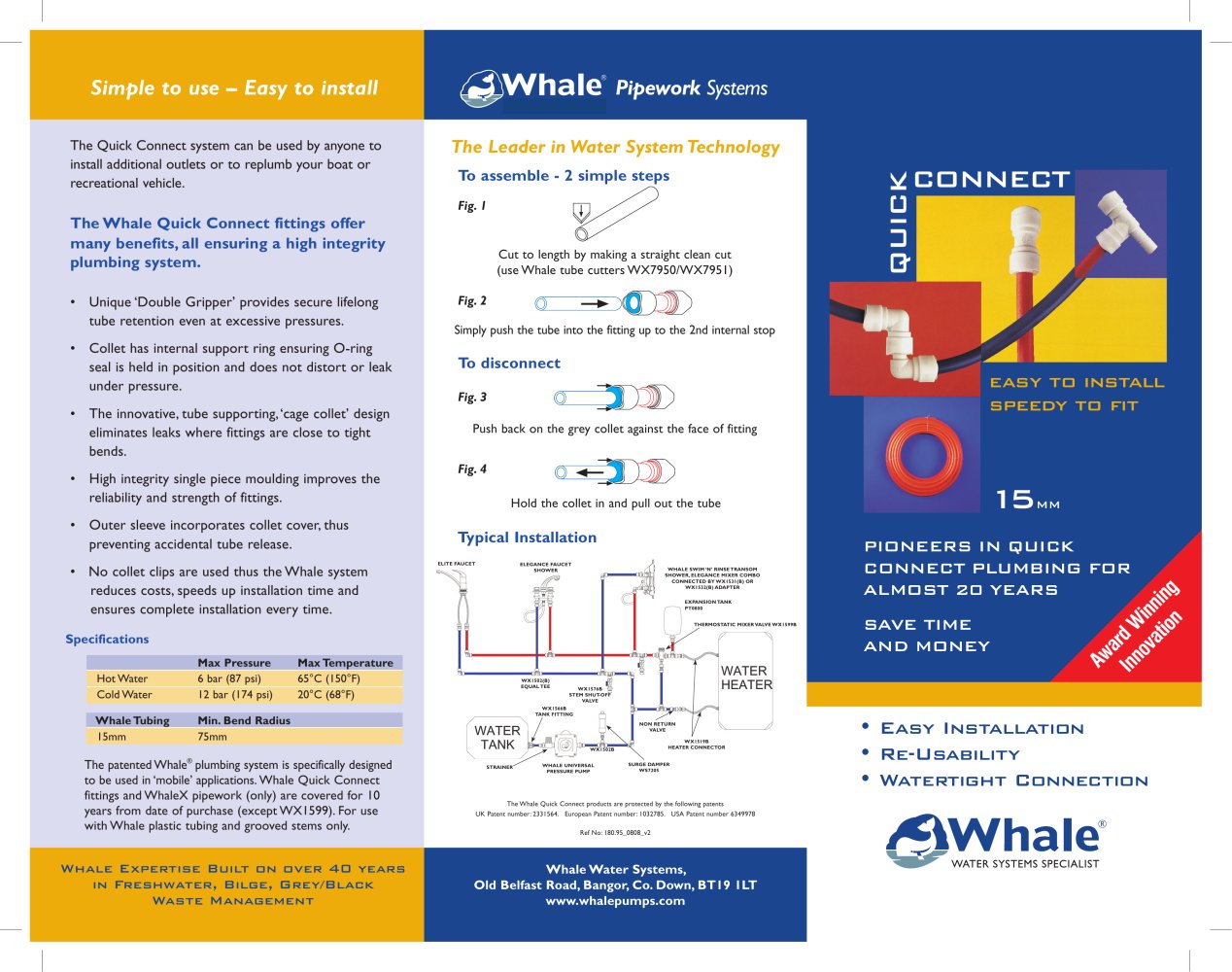

Elite faucet ELEGANCE faucet SHOWER WX1502(B) EQUALUAL TEE WX1566B TATA NK FITTI NG WX1576B STEM SHUT-OFF VALVE WHALE UNIVERSAL PRESSURE PUMP WX1502B WHALE SWIM ‘N’ RINSE TRANSOM SHOWER, ELEGANCE MIXER COMBO CONNECTED BY WX1531(B) OR WX1532(B) ADAPTeR exp ansion TATANK PT0800 WX1519B HEATATER CONNECTOR SURGE DAMPER WS7205 T HERMOSTATICTATICTATIC MIXER VALVE WX1599B STRAINER non return valve T ypical Installation 15MM QUICK CONNECT The Quick Connect system can be used by anyone to install additional outlets or to replumb your boat or recreational vehicle. T he Whale Quick Connect fittings offer many benefits, all ensuring a high integrity plumbing system. • Unique ‘Double Gripper’ provides secure lifelong tube retention even at excessive pressures. • Collet has internal support ring ensuring O-ring seal is held in position and does not distort or leak under pressure. • The innovative, tube supporting, ‘cage collet’ design eliminates leaks where fittings are close to tight bends. • High integrity single piece moulding improves the reliability and strength of fittings. • Outer sleeve incorporates collet cover, thus preventing accidental tube release. • No collet clips are used thus the Whale system reduces costs, speeds up installation time and ensures complete installation every time. T o assemble - 2 simple steps Fig. 1 Cut to length by making a straight clean cut (use Whale tube cutters WX7950/WX7951) Max Pressure Max Temperature Hot Water 6 bar (87 psi) 65°C (150°F) Cold Water 12 bar (174 psi) 20°C (68°F) Whale Tubing Min. Bend Radius 15mm 75mm Fig. 2 Simply push the tube into the fitting up to the 2nd internal stop Fig. 3 Push back on the grey collet against the face of fitting Fig. 4 Hold the collet in and pull out the tube T o disconnect Pipework Systems The Leader in Water System Technology Whale Water Systems, Old Belfast Road, Bangor, Co. Down, BT19 1LTLT www.whalepumps.com The Whale Quick Connect products are protected by the following patents UK Patent number: 2331564. European Patent number: 1032785. USA Patent number 6349978 Ref No: 180.95_0808_v2 Award Winning Innovation easy to install speedy to fit SAVE TIME AND MONEY • Easy Installation • Re-Usability • Watertight Connection The patented Whale® plumbing system is specifically designed to be used in ‘mobile’ applications. Whale Quick Connect fittings and WhaleX pipework (only) are covered for 10 years from date of purchase (except WX1599). For use with Whale plastic tubing and grooved stems only. Whale Expertise Built on over 40 years in Freshwater, Bilge, Grey/Black Waste Management Specifications Simple to use – Easy to install PIONEERS IN QUICK CONNECT PLUMBING FOR ALMOST 20 YEARS
