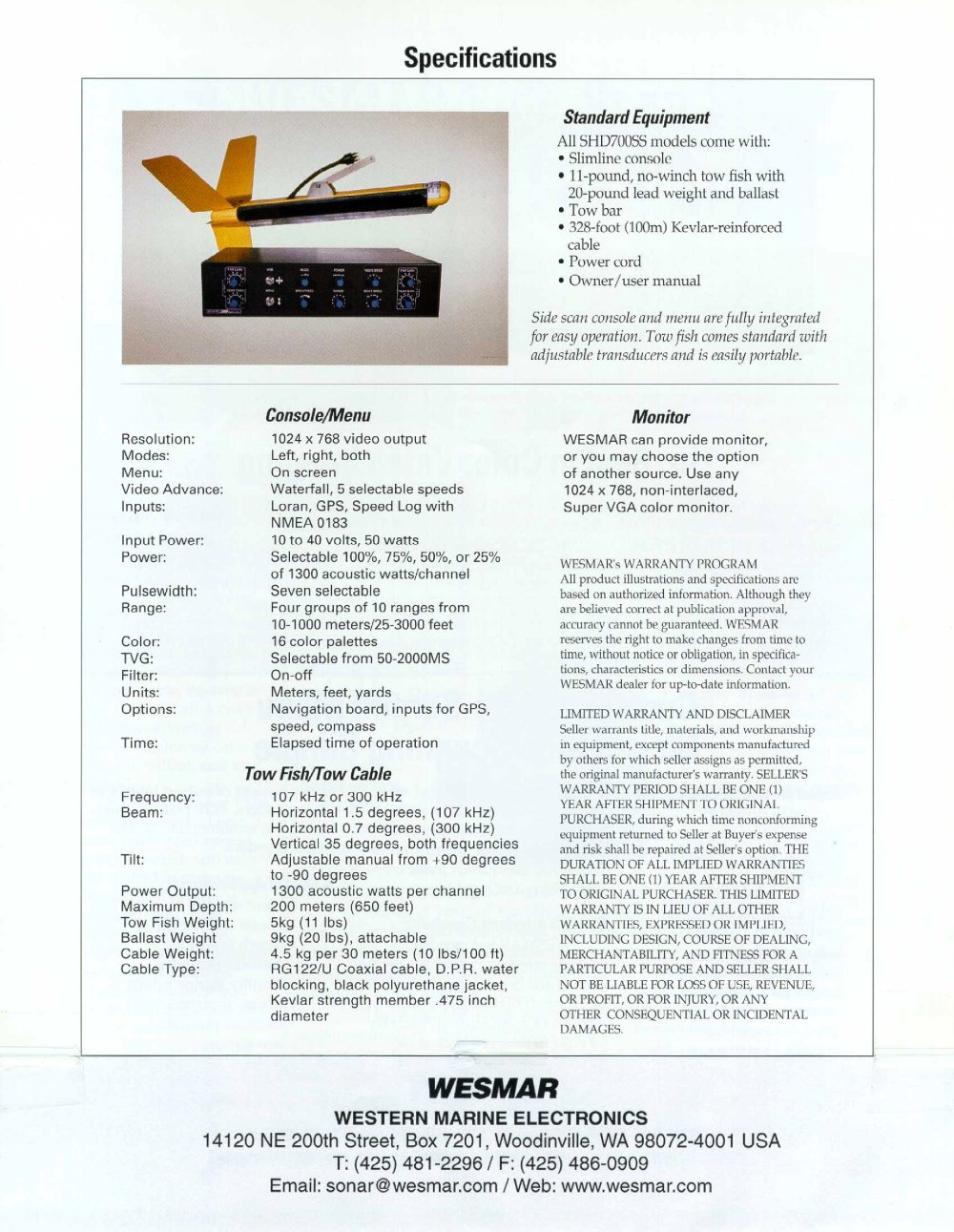

Specifications

Standard Equipment

All SHD700SS models come with:

• Slimline console

• 11-pound, no-winch tow fish with 20-pound lead weight and ballast

• Tow bar

• 328-foot (100m) Kevlar-reinforced cable

• Power cord

• Owner/user manual

Side scan console and menu are fully integrated for easy operation. Tow fish comes standard with adjustable transducers and is easily portable.

Console/Menu

1024x768 video output Left, right, both On screen

Waterfall, 5 selectable speeds

Loran, GPS, Speed Log with

NMEA0183

10 to 40 volts, 50 watts

Selectable 100%, 75%, 50%, or 25%

of 1300 acoustic watts/channel

Seven selectable

Four groups of 10 ranges from

10-1000 meters/25-3000 feet

16 color palettes

Selectable from 50-2000MS

On-off

Meters, feet, yards

Navigation board, inputs for GPS,

speed, compass

Elapsed time of operation

Tow Fish/Tow Cable

107 kHz or 300 kHz Horizontal 1.5 degrees, (107 kHz) Horizontal 0.7 degrees, (300 kHz) Vertical 35 degrees, both frequencies Adjustable manual from +90 degrees to -90 degrees

1300 acoustic watts per channel 200 meters (650 feet) 5kg (11 lbs)

9kg (20 lbs), attachable

4.5 kg per 30 meters (10 lbs/100 ft)

RG122/U Coaxial cable, D.P.R. water

blocking, black polyurethane jacket,

Kevlar strength member .475 inch

diameter

Monitor

WESMAR can provide monitor, or you may choose the option of another source. Use any 1024 x 768, non-interlaced, Super VGA color monitor.

Resolution:

Modes:

Menu:

Video Advance: Inputs:

Input Power: Power:

Pulsewidth: Range:

Color:

TVG:

Filter:

Units:

Options:

Time:

WESMAR's WARRANTY PROGRAM All product illustrations and specifications arc based on authorized information. Although they are believed correct at publication approval, accuracy cannot be guaranteed. WESMAR reserves the right to make changes from time to time, without notice or obligation, in specifications, characteristics or dimensions. Contact your WESMAR dealer for up-to-date information.

LIMITED WARRANTY AND DISCLAIMER Seller warrants title, materials, and workmanship in equipment, except components manufactured by others for which seller assigns as permitted, the original manufacturer's warranty. SELLER'S WARRANTY PERIOD SHALL BE ONE (1) YEAR AFTER SHIPMENT TO ORIGINAL PURCHASER, during which time nonconforming equipment returned to Seller at Buyer's expense and risk shall be repaired at Seller's option. THE DURATION OF ALL IMPLIED WARRANTIES SHALL BE ONE (1) YEAR AFTER SHIPMENT TO ORIGINAL PURCHASER. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING DESIGN, COURSE OF DEALING, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE AND SELLER SHALL NOT BE LIABLE FOR LOSS OF USE, REVENUE, OR PROFIT, OR FOR INJURY, OR ANY OTHER CONSEQUENTIAL OR INCIDENTAL DAMAGES.

Frequency: Beam:

Tilt:

Power Output: Maximum Depth: Tow Fish Weight: Ballast Weight Cable Weight: Cable Type:

WESMAR

WESTERN MARINE ELECTRONICS

14120 NE 200th Street, Box 7201, Woodinville, WA 98072-4001 USA T: (425) 481-2296 / F: (425) 486-0909 Email: sonar@wesmar.com / Web: www.wesmar.com
