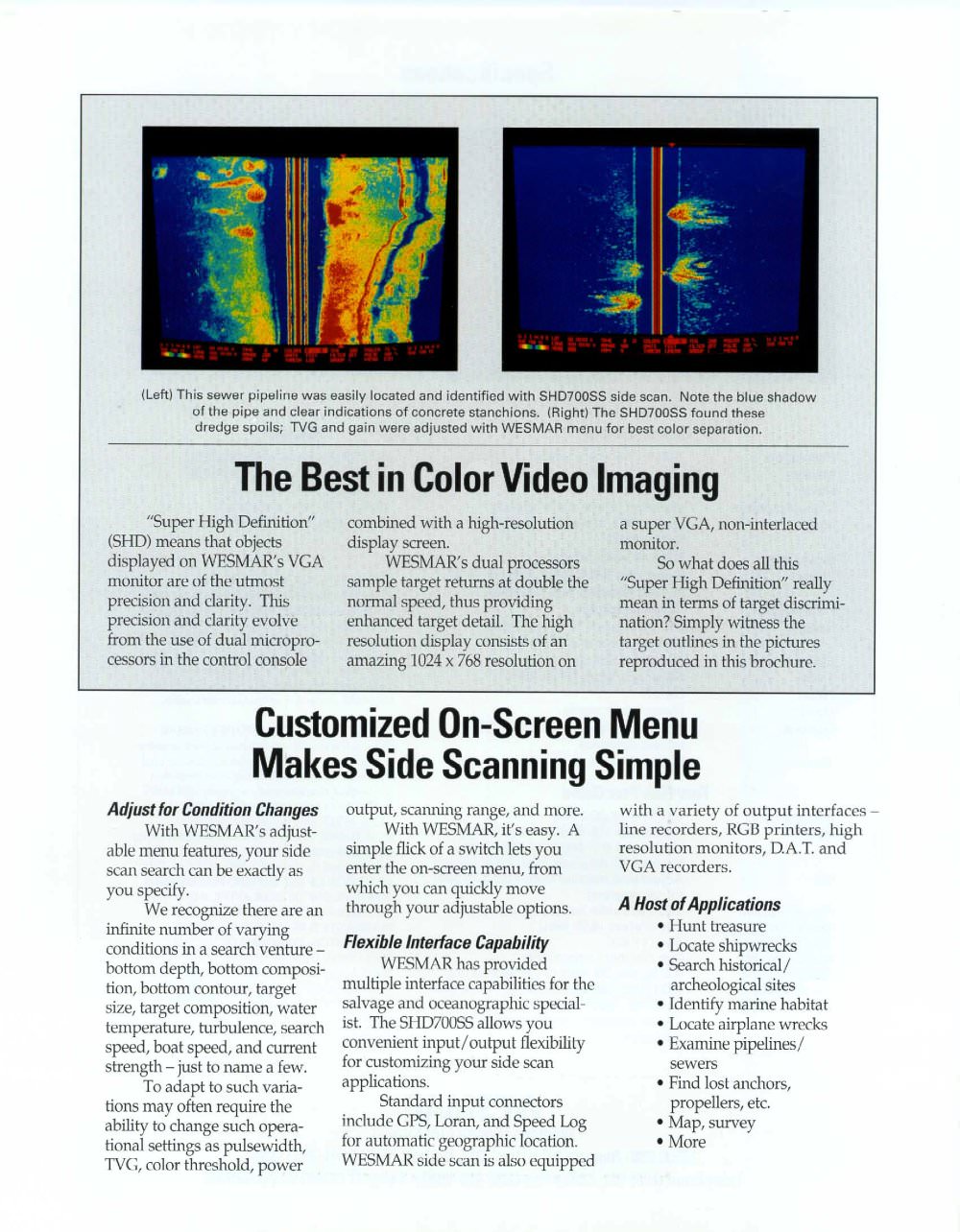

| | | (Left) This sewer pipeline was easily located and identified with SHD700SS side scan. Note the blue shadow of the pipe and clear indications of concrete stanchions. (Right) The SHD700SS found these dredge spoils; TVG and gain were adjusted with WESMAR menu for best color separation. | | |
| | | |
| | | The Best in Color Video Imaging | | |
| | | |
| | | "Super High Definition" (SHD) means that objects displayed on WESMAR's VGA monitor are of the utmost precision and clarity. This precision and clarity evolve from the use of dual microprocessors in the control console | | |
| | | combined with a high-resolution display screen. WESMAR's dual processors sample target returns at double the normal speed, thus providing enhanced target detail. The high resolution display consists of an amazing 1024 x 768 resolution on | | |
| | | a super VGA, non-interlaced monitor. So what does all this "Super High Definition" really mean in terms of target discrimination? Simply witness the target outlines in the pictures reproduced in this brochure. | | |
| | | |
| | | |
| | | |
| | | Customized On-Screen Menu Makes Side Scanning Simple | | |
| | | |
| | | Adjust for Condition Changes With WESMAR's adjustable menu features, your side scan search can be exactly as you specify. We recognize there are an infinite number of varying conditions in a search venture -bottom depth, bottom composition, bottom contour, target size, target composition, water temperature, turbulence, search speed, boat speed, and current strength - just to name a few. To adapt to such variations may often require the ability to change such operational settings as pulsewidth, TVG, color threshold, power | | |
| | | output, scanning range, and more. With WESMAR, it's easy. A simple flick of a switch lets you enter the on-screen menu, from which you can quickly move through your adjustable options. Flexible Interface Capability WESMAR has provided multiple interface capabilities for the salvage and océanographie specialist. The SHD700SS allows you convenient input/output flexibility for customizing your side scan applications. Standard input connectors include GPS, Loran, and Speed Log for automatic geographic location. WESMAR side scan is also equipped | | |
| | | with a variety of output interfaces line recorders, RGB printers, high resolution monitors, DAT. and VGA recorders. A Host of Applications • Hunt treasure • Locate shipwrecks • Search historical/ archeologica! sites • Identify marine habitat • Locate airplane wrecks • Examine pipelines/ sewers • Find lost anchors, propellers, etc. • Map, survey • More | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
