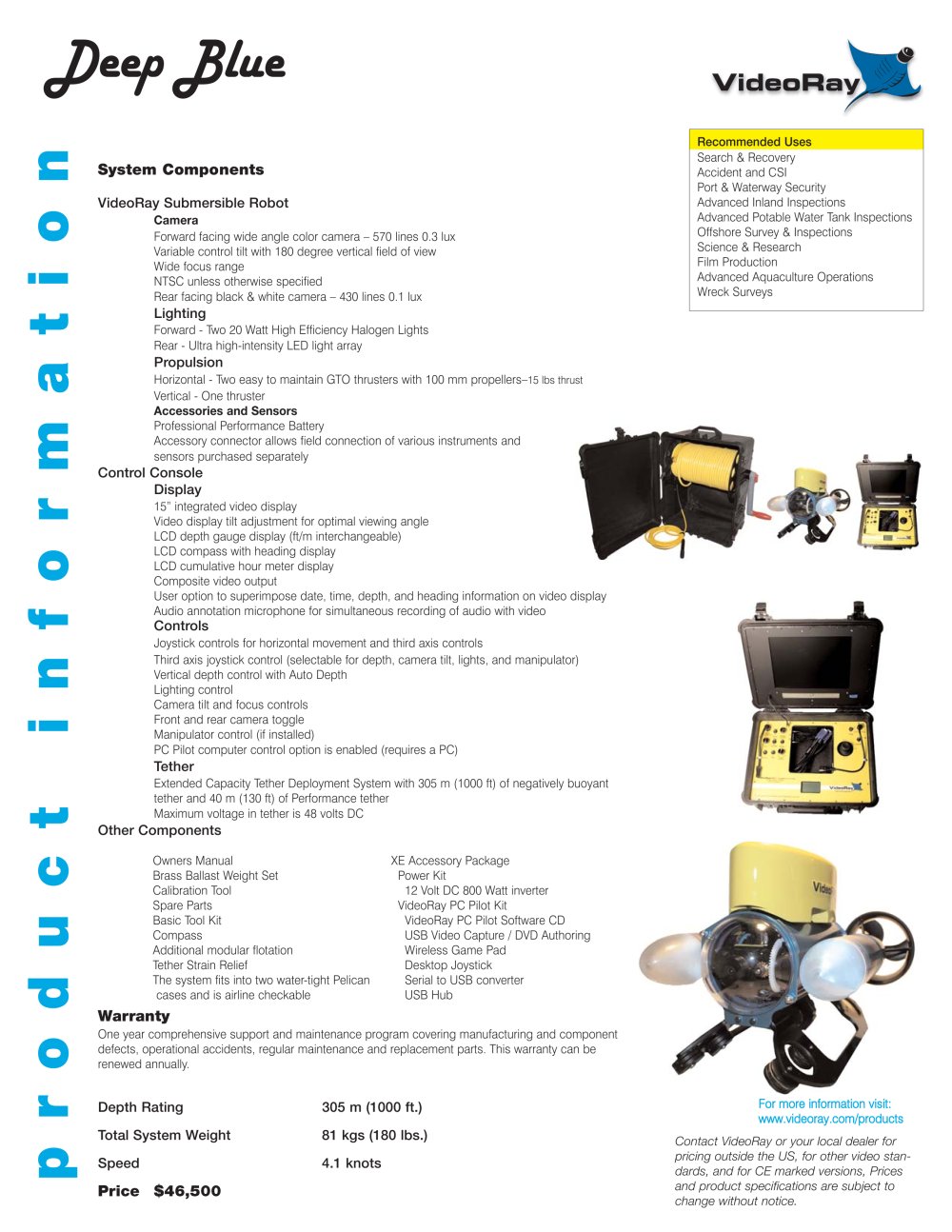

Deep Blue
Recommended Uses Search & RecoveryAccident and CSI
Port & Waterway Security
Advanced Inland Inspections
Advanced Potable Water Tank Inspections
Offshore Survey & Inspections
Science & Research
Film Production Advanced Aquaculture Operations
Wreck Surveys
System Components
Camera Forward facing wide angle color camera – 570 lines 0.3 lux Variable control tilt with 180 degree vertical field of view Wide focus range
NTSC unless otherwise specifiedRear facing black & white camera – 430 lines 0.1 lux
Lighting
Forward - Two 20 Watt High Efficiency Halogen LightsRear - Ultra high-intensity
Marine led light array
Propulsion
Horizontal - Two easy to maintain GTO thrusters with 100 mm propellers–
15 lbs thrust Vertical - One
marine thruster Professional Performance Battery
Accessory connector allows field connection of various instruments andsensors purchased separately Accessories and Sensors
Control ConsoleDisplay
15” integrated video display
Video display tilt adjustment for optimal viewing angle
LCD depth gauge display (ft/m interchangeable)
LCD
boat compass with heading display
LCD cumulative hour meter display
Composite video output
User option to superimpose date, time, depth, and heading information on video display
Audio annotation microphone for simultaneous recording of audio with video
Controls
Joystick controls for horizontal movement and third axis controlsThird axis joystick control (selectable for depth, camera tilt, lights, and manipulator)Vertical depth control with Auto Depth
Lighting control
Camera tilt and focus controls
Front and rear camera
marine toggle Manipulator control (if installed)PC Pilot computer control option is enabled (requires a PC)
Tether
Extended Capacity Tether Deployment System with 305 m (1000 ft) of negatively buoyant tether and 40 m (130 ft) of Performance tetherMaximum voltage in tether is 48 volts DC
Other Components
Owners Manual
Brass Ballast Weight Set Calibration Tool
Spare Parts
Basic Tool KitCompassAdditional modular flotationTether Strain ReliefThe system fits into two water-tight Pelican cases and is airline checkable XE Accessory PackagePower Kit12 Volt DC 800 Watt inverterVideoRay PC Pilot KitVideoRay PC Pilot Software CD
USB Video Capture / DVD Authoring
Wireless Game Pad
Desktop Joystick
Serial to USB converter
USB Hub
Warranty
One year comprehensive support and maintenance program covering manufacturing and componentdefects, operational accidents, regular maintenance and replacement parts. This warranty can be
renewed annually.
Depth Rating305 m (1000 ft.)Total System Weight81 kgs (180 lbs.)
Speed4.1 knots
For more information visit: www.videoray.com/products Contact VideoRay or your local dealer for
pricing outside the US, for other video stan-
dards, and for CE marked versions, Prices
and product specifications are subject to
change without notice.
product information Price$46,500
