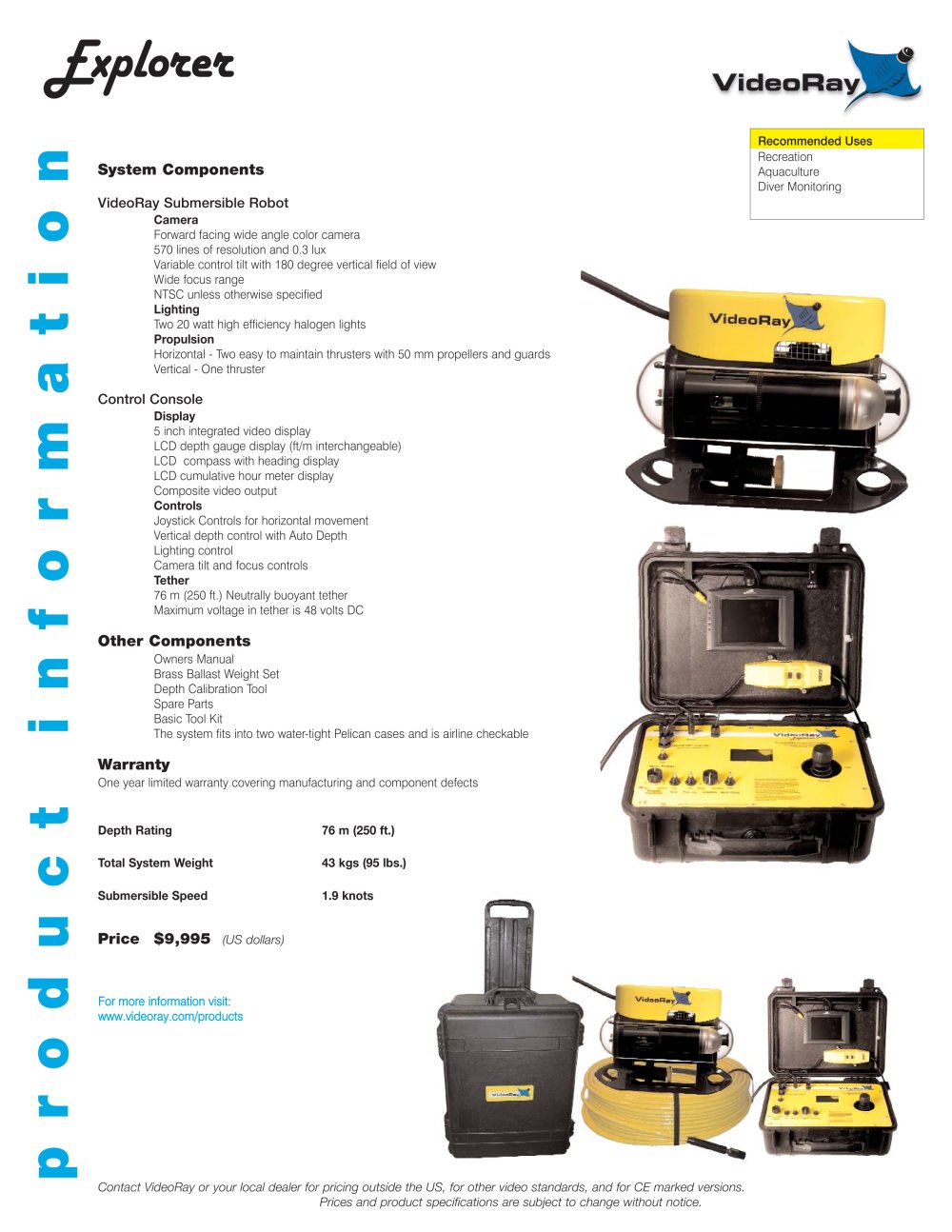

Explorer
Recommended Uses
Recreation Aquaculture Diver Monitoring
System Components
VideoRay Submersible Robot Camera
Forward facing wide angle color camera 570 lines of resolution and 0.3 lux Variable control tilt with 180 degree vertical field of view Wide focus range NTSC unless otherwise specified Lighting
Two 20 watt high efficiency halogen lights Propulsion
Horizontal - Two easy to maintain thrusters with 50 mm propellers and guards Vertical - One marine thruster
Control Console
y
5 inch integrated video display
LCD depth gauge display (ft/m interchangeable)
LCD compass with heading display
LCD cumulative hour meter display
Composite video output
Controls
Joystick Controls for horizontal movement
Vertical depth control with Auto Depth
Lighting control
Camera tilt and focus controls
Tether
76 m (250 ft.) Neutrally buoyant tether
Maximum voltage in tether is 48 volts DC
Other Components
Owners Manual Brass Ballast Weight Set Depth Calibration Tool Spare Parts Basic Tool Kit
The system fits into two water-tight Pelican cases and is airline checkable
Warranty
One year limited warranty covering manufacturing and component defects
Depth Rating
Total System Weight
Submersible Speed
Price $9,995 (US dollars)
76 m (250 ft.) 43 kgs (95 lbs.) 1.9 knots
For more information visit: www.videoray.com/products
Contact VideoRay or your local dealer for pricing outside the US, for other video standards, and for CE marked versions.
Prices and product specifications are subject to change without notice.
