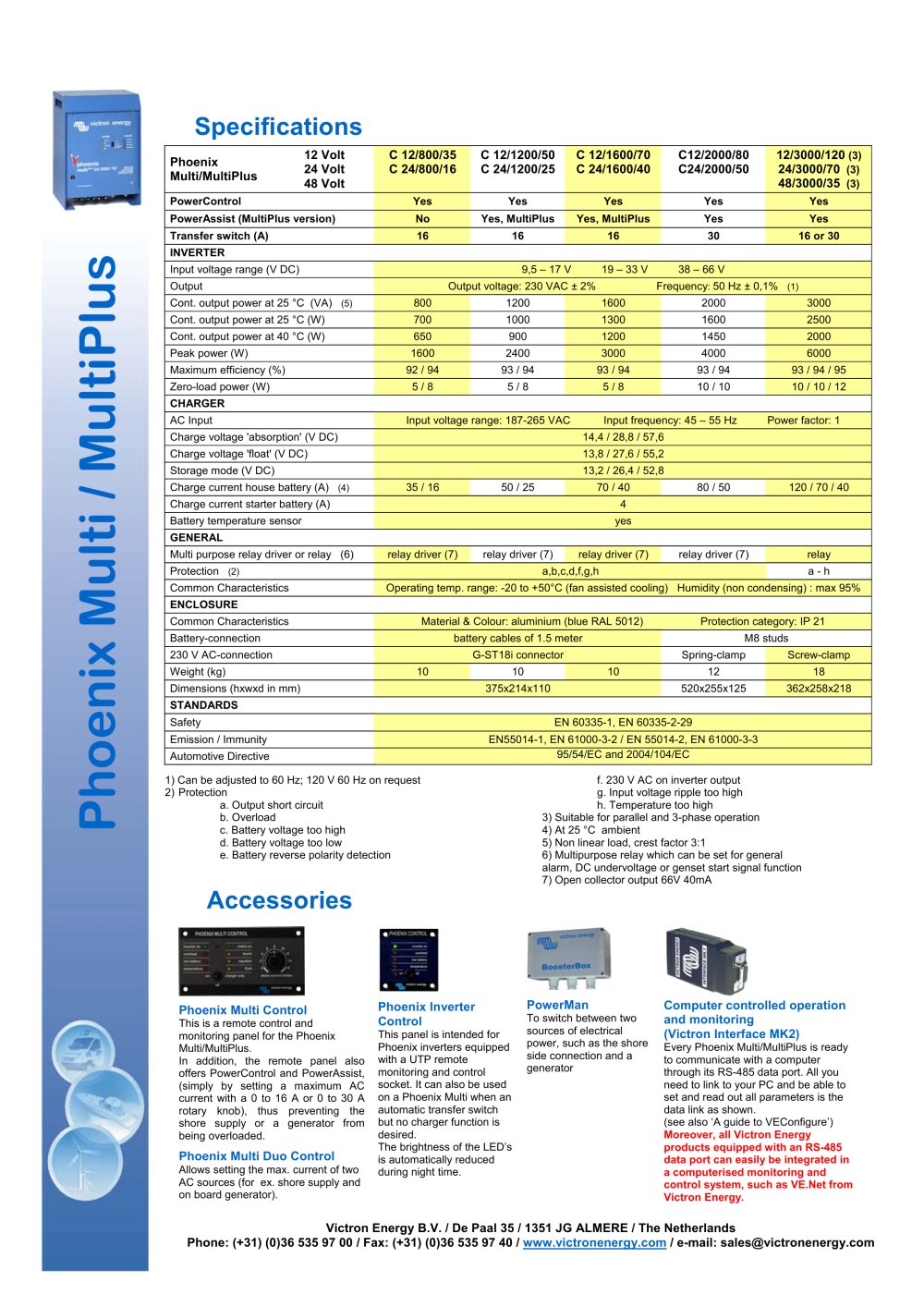

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Specifications | | | | | | | | | | | | | | | | | | | | | du ■ 12 Volt Phoenix 24 Volt 48 Volt | C 12/800/35 C 24/800/16 | C 12/1200/50 C 24/1200/25 | C 12/1600/70 C 24/1600/40 | C12/2000/80 C24/2000/50 | 12/3000/120 (3) 24/3000/70 (3) 48/3000/35 (3) | | | | PowerControl | Yes | Yes | Yes | Yes | Yes | | | | PowerAssist (MultiPlus version) | No | Yes, MultiPlus | Yes, MultiPlus | Yes | Yes | | | | Transfer switch (A) | 16 | 16 | 16 | 30 | 16 or 30 | | | | INVERTER | | | | Input voltage range (V DC) | | 9,5 - 17 V 19 - 33 V | 38 - 66 V | | | | | Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1) | | | | Cont. output power at 25 °C (VA) (5) | 800 | 1200 | 1600 | 2000 | 3000 | | | | Cont. output power at 25 °C (W) | 700 | 1000 | 1300 | 1600 | 2500 | | | | Cont. output power at 40 °C (W) | 650 | 900 | 1200 | 1450 | 2000 | | | | Peak power (W) | 1600 | 2400 | 3000 | 4000 | 6000 | | | | Maximum efficiency (%) | 92 / 94 | 93 / 94 | 93 / 94 | 93 / 94 | 93 / 94 / 95 | | | | Zero-load power (W) | 5 / 8 | 5 / 8 | 5 / 8 | 10 / 10 | 10 / 10 / 12 | | | | CHARGER | | | | AC Input | Input voltage range: 187-265 VAC Input frequency: 45 - 55 Hz | Power factor: 1 | | | | Charge voltage 'absorption' (V DC) | 14,4 / 28,8 / 57,6 | | | | Charge voltage 'float' (V DC) | 13,8 / 27,6 / 55,2 | | | | Storage mode (V DC) | 13,2 / 26,4 / 52,8 | | | | Charge current house battery (A) (4) | 35 / 16 | 50 / 25 | 70 / 40 | 80 / 50 | 120/70 / 40 | | | | Charge current starter battery (A) | 4 | | | | Battery temperature sensor | yes | | | | GENERAL | | | | Multi purpose relay driver or relay (6) | relay driver (7) | relay driver (7) | relay driver (7) | relay driver (7) | relay | | | | Protection (2) | a,b,c,d,f,g,h | a-h | | | | Common Characteristics | Operating temp. range: -20 to +50°C (fan assisted cooling) Humidity (non condensing) : max 95% | | | | ENCLOSURE | | | | Common Characteristics | Material & Colour: aluminium (blue RAL 5012) | Protection category: IP 21 | | | | Battery-connection | battery cables of 1.5 meter | M8 studs | | | | 230 V AC-connection | G-ST18i connector | Spring-clamp | Screw-clamp | | | | Weight (kg) | 10 | 10 | 10 | 12 | 18 | | | | Dimensions (hxwxd in mm) | 375x214x110 | 520x255x125 | 362x258x218 | | | | STANDARDS | | | | Safety | EN 60335-1, EN 60335-2-29 | | | | Emission / Immunity | EN55014-1, EN 61000-3-2 / EN 55014-2, EN 61000-3-3 | | | | Automotive Directive | 95/54/EC and 2004/104/EC | | | | | | | | | | | | | | | | | | | | | f. 230 V AC on inverter output g. Input voltage ripple too high h. Temperature too high 3) Suitable for parallel and 3-phase operation 4) At 25 °C ambient 5) Non linear load, crest factor 3:1 6) Multipurpose relay which can be set for general alarm, DC undervoltage or genset start signal function 7) Open collector output 66V 40mA | | | | | | 1) Can be adjusted to 60 Hz; 120 V 60 Hz on request 2) Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Battery reverse polarity detection | | | | | | | | | | | | | | Accessories | | | | | | | | | | PowerMan To switch between two sources of electrical power, such as the shore side connection and a generator | | | | | | Computer controlled operation and monitoring (Victron Interface MK2) Every Phoenix Multi/MultiPlus is ready to communicate with a computer through its RS-485 data port. All you need to link to your PC and be able to set and read out all parameters is the data link as shown. (see also 'A guide to VEConfigure') Moreover, all Victron Energy products equipped with an RS-485 data port can easily be integrated in a computerised monitoring and control system, such as VE.Net from Victron Energy. | | | | | | Phoenix Inverter Control This panel is intended for Phoenix inverters equipped with a UTP remote monitoring and control socket. It can also be used on a Phoenix Multi when an automatic transfer switch but no charger function is desired. The brightness of the LED's is automatically reduced during night time. | | | | | | Phoenix Multi Control This is a remote control and monitoring panel for the Phoenix Multi/MultiPlus. In addition, the remote panel also offers PowerControl and PowerAssist, (simply by setting a maximum AC current with a 0 to 16 A or 0 to 30 A rotary knob), thus preventing the shore supply or a generator from being overloaded. Phoenix Multi Duo Control Allows setting the max. current of two AC sources (for ex. shore supply and on board generator). | | | | | | | | | | | | | | | | | | | | | | Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com / e-mail: sales@victronenergy.com | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
