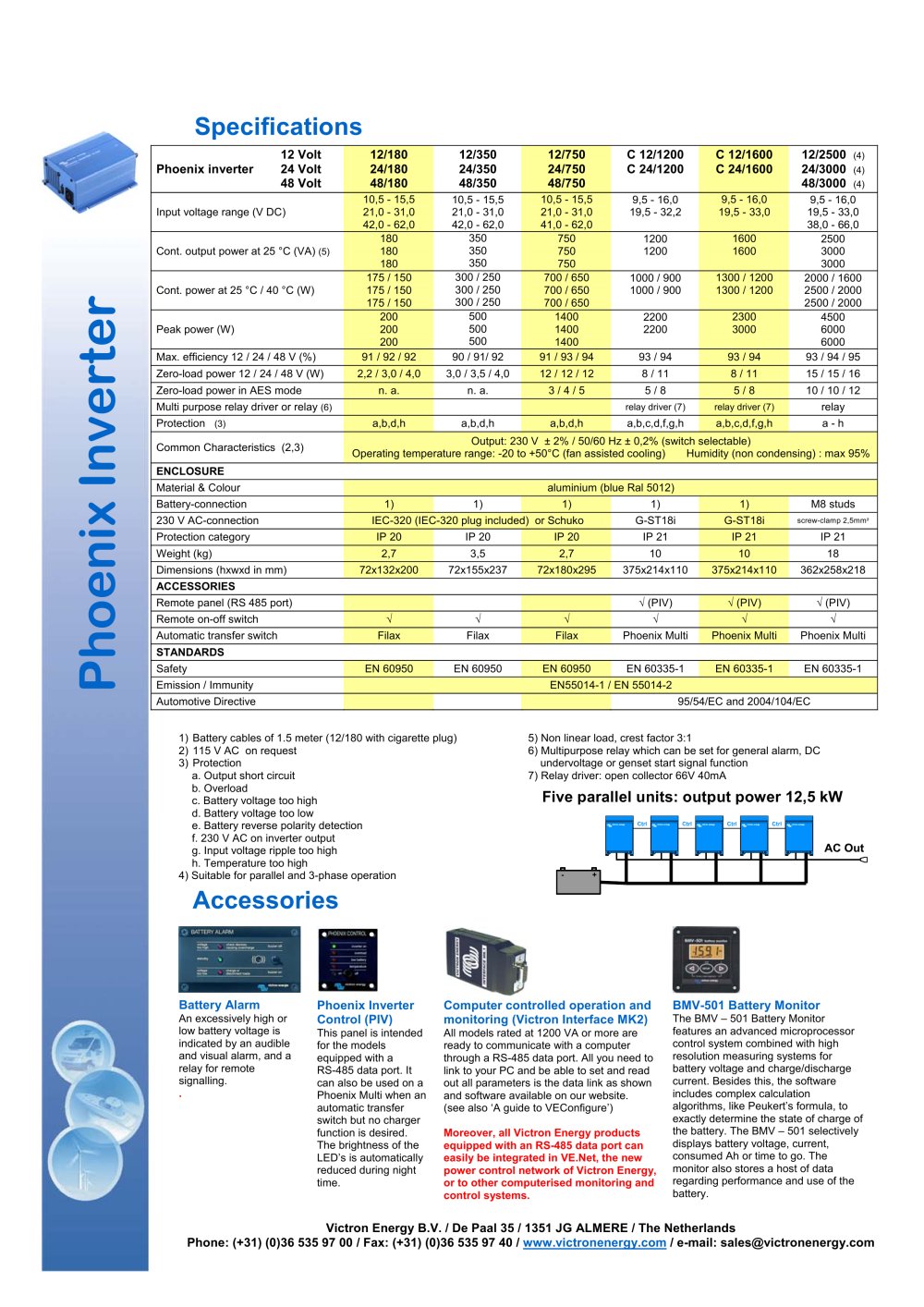

Specifications
12 Volt 24 Volt 48 Volt 12/180 12/750 C 12/1600 12/2500
(4) Phoenix inverter 24/180 24/750 C 24/1600 24/3000
(4) 48/18012/35024/35048/350 48/750C 12/1200C 24/1200 48/3000
(4) 10,5 - 15,5 10,5 - 15,5 9,5 - 16,0 Input voltage range (V DC) 21,0 - 31,0 21,0 - 31,0 19,5 - 33,0 42,0 - 62,0 10,5 - 15,5 21,0 - 31,0 42,0 - 62,0 41,0 - 62,0 9,5 - 16,0 19,5 - 32,2 9,5 - 16,0 19,5 - 33,0 38,0 - 66,0 180 750 1600 Cont. output power at 25 °C (VA)
(5) 180 750 1600 180 350 350 350 750 1200 1200 2500 3000 3000 175 / 150 700 / 650 1300 / 1200 Cont. power at 25 °C / 40 °C (W) 175 / 150 700 / 650 1300 / 1200 175 / 150 300 / 250 300 / 250 300 / 250 700 / 650 1000 / 900 1000 / 900 2000 / 1600 2500 / 2000 2500 / 2000 200 1400 2300 Peak power (W) 200 1400 3000 200 500 500 500 1400 2200 2200 4500 6000 6000 Max. efficiency 12 / 24 / 48 V (%) 91 / 92 / 92 90 / 91/ 92 91 / 93 / 94 93 / 94 93 / 94 93 / 94 / 95 Zero-load power 12 / 24 / 48 V (W) 2,2 / 3,0 / 4,0 3,0 / 3,5 / 4,0 12 / 12 / 12 8 / 11 8 / 11 15 / 15 / 16 Zero-load power in AES mode n. a. n. a. 3 / 4 / 5 5 / 8 5 / 8 10 / 10 / 12 Multi purpose relay driver or relay
(6) relay driver (7) relay driver (7) relay Protection
(3) a,b,d,h a,b,d,h a,b,d,h a,b,c,d,f,g,h a,b,c,d,f,g,h a - h Common Characteristics (2,3) Output: 230 V ± 2% / 50/60 Hz ± 0,2% (switch selectable) Operating temperature range: -20 to +50°C (fan assisted cooling) Humidity (non condensing) : max 95% ENCLOSURE Material & Colour aluminium (blue Ral 5012) Battery-connection 1) 1) 1) 1) 1) M8 studs 230 V AC-connection IEC-320 (IEC-320 plug included) or Schuko G-ST18i G-ST18i
screw-clamp 2,5mm ² Protection category IP 20 IP 20 IP 20 IP 21 IP 21 IP 21 Weight (kg) 2,7 3,5 2,7 10 10 18 Dimensions (hxwxd in mm) 72x132x200 72x155x237 72x180x295 375x214x110 375x214x110 362x258x218 ACCESSORIES Remote panel (RS 485 port) (PIV) (PIV) (PIV) Remote on-off switch Automatic transfer switch Filax Filax Filax Phoenix Multi Phoenix Multi Phoenix Multi STANDARDS Safety EN 60950 EN 60950 EN 60950 EN 60335-1 EN 60335-1 EN 60335-1
Phoenix Inverter Emission / Immunity EN55014-1 / EN 55014-2 Automotive Directive 95/54/EC and 2004/104/EC 1) Battery cables of 1.5 meter (12/180 with cigarette plug) 2) 115 V AC on request 3) Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Battery reverse polarity detection f. 230 V AC on inverter output g. Input voltage ripple too high h. Temperature too high 4) Suitable for parallel and 3-phase operation 5) Non linear load, crest factor 3:1 6) Multipurpose relay which can be set for general alarm, DC undervoltage or genset start signal function 7) Relay driver: open collector 66V 40mA
Five p arallel units: out p ut p ower 12 , 5 kW
Accessories
.
Battery Alarm Phoenix Inverter Control (PIV) Computer controlled operation and monitoring (Victron Interface MK2)
Moreover, all Victron Energy products equipped with an RS-485 data port can easily be integrated in VE.Net, the new power control network of Victron Energy, or to other computerised monitoring and control systems.
An excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signalling. The BMV – 501 Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV – 501 selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery. This panel is intended for the models equipped with a RS-485 data port. It can also be used on a Phoenix Multi when an automatic transfer switch but no charger function is desired. The brightness of the LED’s is automatically reduced during night time. All models rated at 1200 VA or more are ready to communicate with a computer through a RS-485 data port. All you need to link to your PC and be able to set and read out all parameters is the data link as shown and software available on our website. (see also ‘A guide to VEConfigure’)
Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com / e-mail: sales@victronenergy.com
