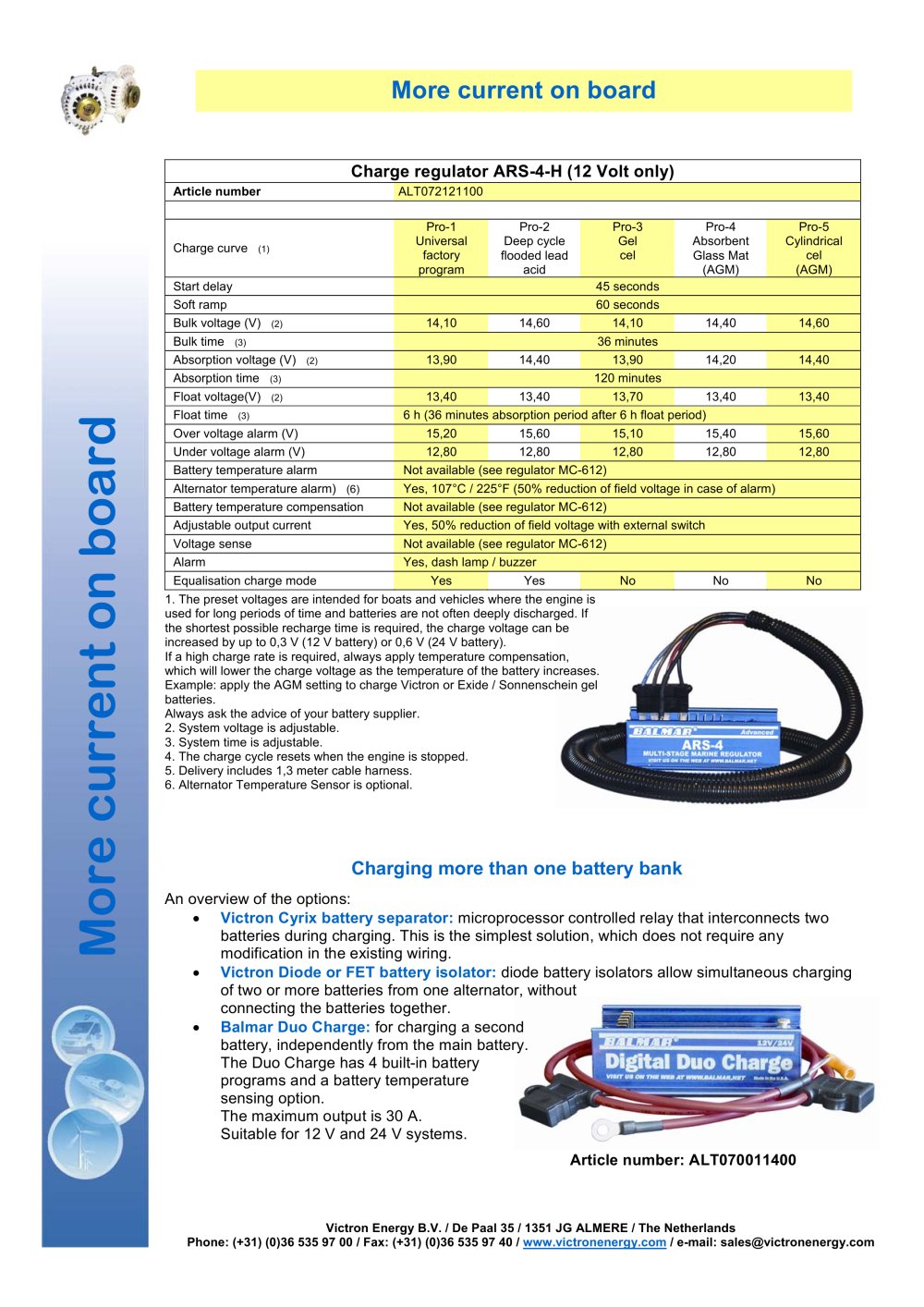

More current on board

Charge regulator ARS-4-H (12 Volt only)

Article number ALT072121100 Pro-1 Pro-3 Pro-4AbsorbentGlass Mat (AGM) Pro-5 Charge curve
(1) Universal Gel Cylindrical factory cel cel programPro-2Deep cycle flooded lead acid (AGM) Start delay 45 seconds Soft ramp 60 seconds Bulk voltage (V)
(2) 14,10 14,60 14,10 14,40 14,60 Bulk time
(3) 36 minutes Absorption voltage (V)
(2) 13,90 14,40 13,90 14,20 14,40 Absorption time
(3) 120 minutes Float voltage(V)
(2) 13,40 13,40 13,70 13,40 13,40 Float time
(3) 6 h (36 minutes absorption period after 6 h float period) Over voltage alarm (V) 15,20 15,60 15,10 15,40 15,60 Under voltage alarm (V) 12,80 12,80 12,80 12,80 12,80 Battery temperature alarm Not available (see regulator MC-612) Alternator temperature alarm)
(6) Yes, 107°C / 225°F (50% reduction of field voltage in case of alarm) Battery temperature compensation Not available (see regulator MC-612) Adjustable output current Yes, 50% reduction of field voltage with external switch Voltage sense Not available (see regulator MC-612) Alarm Yes, dash lamp / buzzer Equalisation charge mode Yes Yes No No No 1. The preset voltages are intended for boats and vehicles where the engine is used for long periods of time and batteries are not often deeply discharged. If the shortest possible recharge time is required, the charge voltage can be increased by up to 0,3 V (12 V battery) or 0,6 V (24 V battery). If a high charge rate is required, always apply temperature compensation, which will lower the charge voltage as the temperature of the battery increases. Example: apply the AGM setting to charge Victron or Exide / Sonnenschein gel batteries.Always ask the advice of your battery supplier. 2. System voltage is adjustable. 3. System time is adjustable. 4. The charge cycle resets when the engine is stopped. 5. Delivery includes 1,3 meter cable harness. 6. Alternator Temperature Sensor is optional.

Charging more than one battery bank

An overview of the options: Victron Cyrix battery separator: microprocessor controlled relay that interconnects two batteries during charging. This is the simplest solution, which does not require any modification in the existing wiring.

Victron Diode or FET battery isolator: diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Balmar Duo Charge: for charging a second battery, independently from the main battery. The Duo Charge has 4 built-in battery programs and a battery temperature sensing option. The maximum output is 30 A. Suitable for 12 V and 24 V systems.

Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com

Article number: ALT070011400
