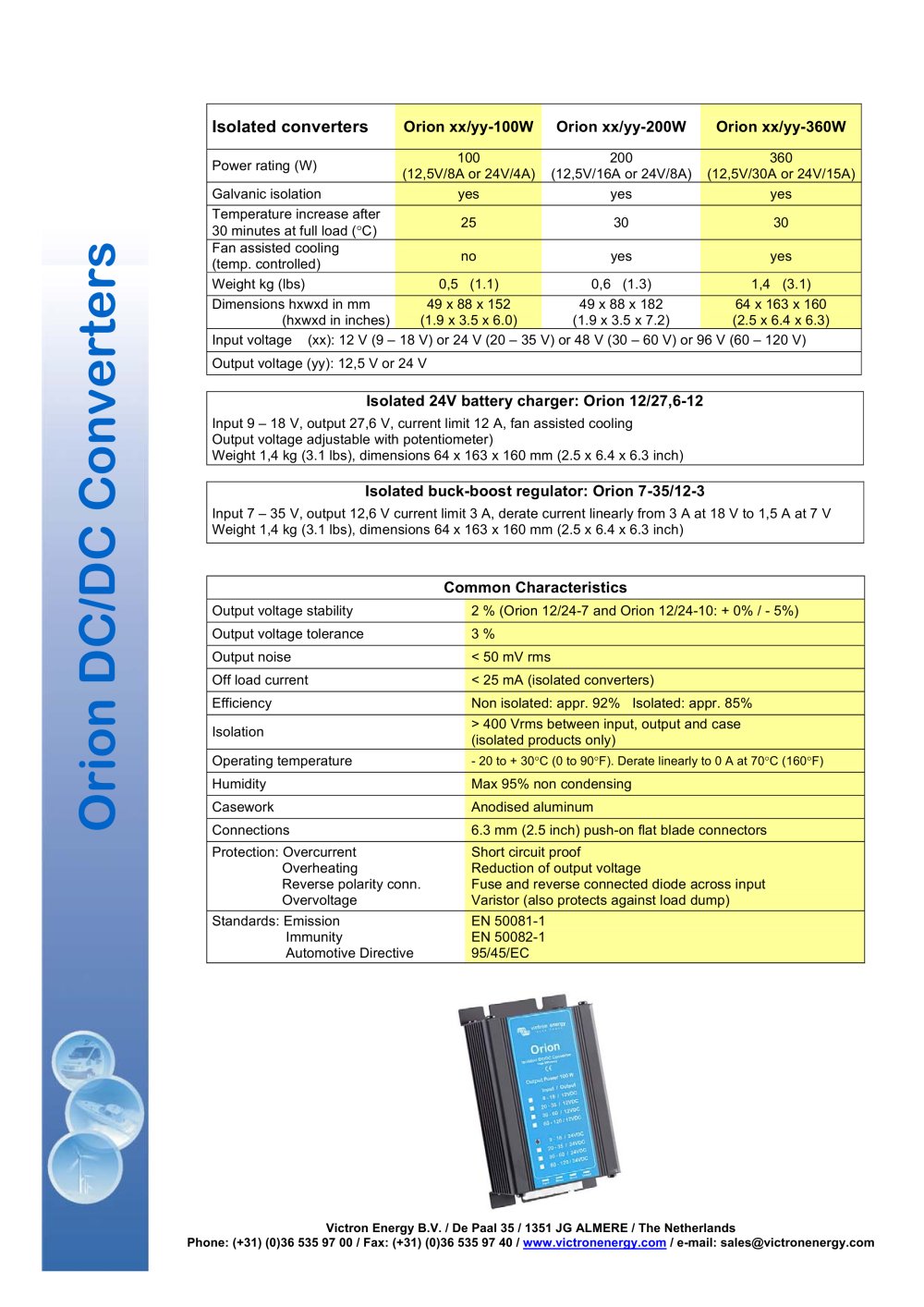

Isolated converters
Orion xx/yy-100WOrion xx/yy-200W Orion xx/yy-360W
Power rating (W) 100 360 (12,5V/8A or 24V/4A)200(12,5V/16A or 24V/8A) (12,5V/30A or 24V/15A) Galvanic isolation yes yes yes Temperature increase after 30 minutes at full load ( C) 25 30 30 Fan assisted cooling (temp. controlled) no yes yes Weight kg (lbs) 0,5 (1.1) 0,6 (1.3) 1,4 (3.1) Dimensions hxwxd in mm (hxwxd in inches) 49 x 88 x 152 64 x 163 x 160 (1.9 x 3.5 x 6.0) 49 x 88 x 182 (1.9 x 3.5 x 7.2) (2.5 x 6.4 x 6.3) Input voltage (xx): 12 V (9 – 18 V) or 24 V (20 – 35 V) or 48 V (30 – 60 V) or 96 V (60 – 120 V) Output voltage (yy): 12,5 V or 24 V
Isolated 24V battery charger: Orion 12/27,6-12
Input 9 – 18 V, output 27,6 V, current limit 12 A, fan assisted cooling Output voltage adjustable with potentiometer) Weight 1,4 kg (3.1 lbs), dimensions 64 x 163 x 160 mm (2.5 x 6.4 x 6.3 inch)
Isolated buck-boost regulator: Orion 7-35/12-3
Input 7 – 35 V, output 12,6 V current limit 3 A, derate current linearly from 3 A at 18 V to 1,5 A at 7 V Weight 1,4 kg (3.1 lbs), dimensions 64 x 163 x 160 mm (2.5 x 6.4 x 6.3 inch)
Common Characteristics
Output voltage stability 2 % (Orion 12/24-7 and Orion 12/24-10: + 0% / - 5%) Output voltage tolerance 3 % Output noise < 50 mV rms Off load current < 25 mA (isolated converters) Efficiency Non isolated: appr. 92% Isolated: appr. 85% Isolation > 400 Vrms between input, output and case (isolated products only) Operating temperature
- 20 to + 30 C (0 to 90 F). Derate linearly to 0 A at 70 C (160 F) Humidity Max 95% non condensing Casework Anodised aluminum
Orion DC/DC Converters Connections 6.3 mm (2.5 inch) push-on flat blade connectors Protection: Overcurrent Overheating Reverse polarity conn. Overvoltage Short circuit proof Reduction of output voltage Fuse and reverse connected diode across input Varistor (also protects against load dump) Standards: Emission Immunity Automotive Directive EN 50081-1 EN 50082-1 95/45/EC
Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com / e-mail: sales@victronenergy.com
