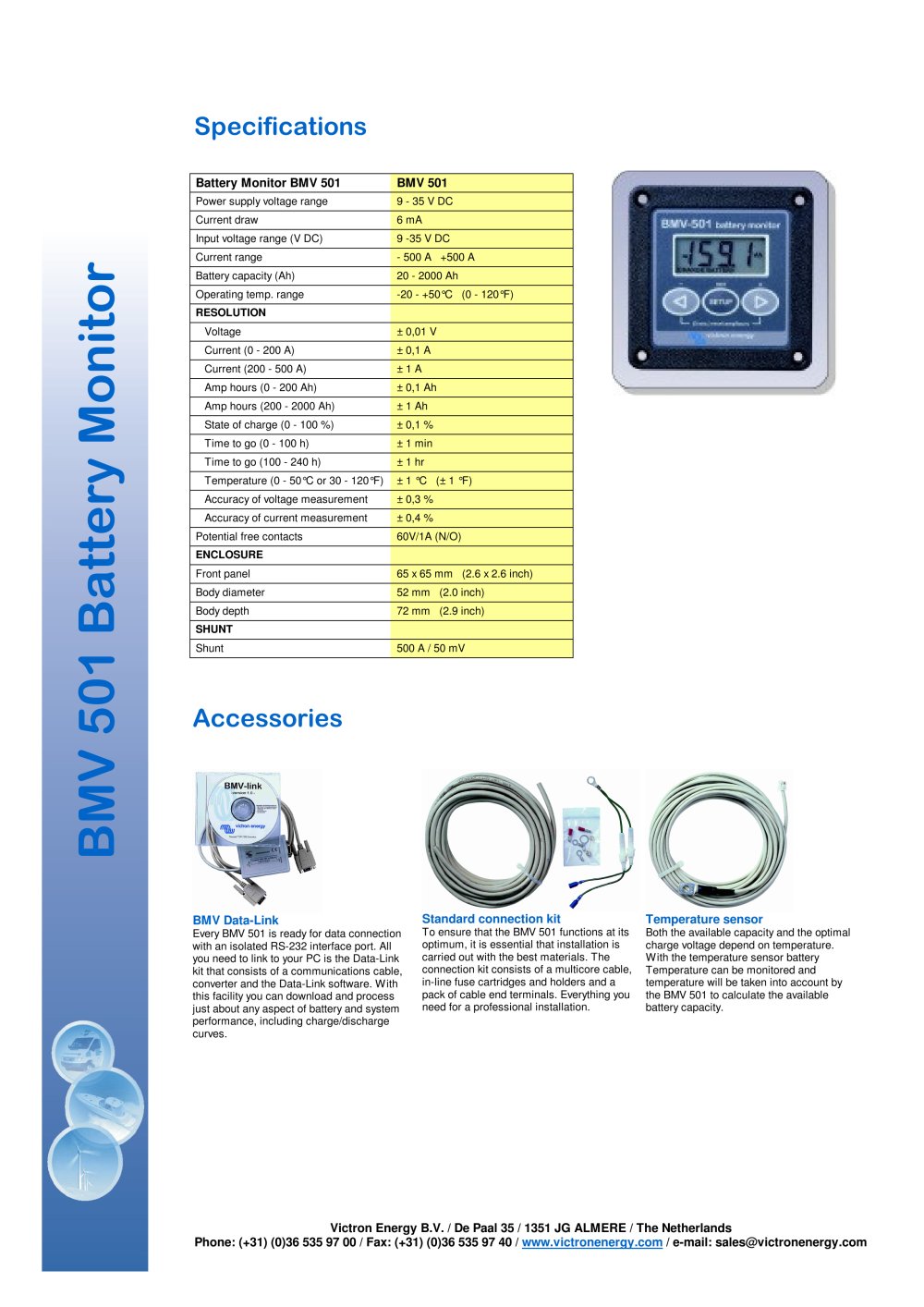

Power supply voltage range 9 - 35 V DC Current draw 6 mA Input voltage range (V DC) 9 -35 V DC Current range - 500 A +500 A Battery capacity (Ah) 20 - 2000 Ah Operating temp. range -20 - +50°C (0 - 120°F) RESOLUTION Voltage ± 0,01 V Current (0 - 200 A) ± 0,1 A Current (200 - 500 A) ± 1 A Amp hours (0 - 200 Ah) ± 0,1 Ah Amp hours (200 - 2000 Ah) ± 1 Ah State of charge (0 - 100 %) ± 0,1 % Time to go (0 - 100 h) ± 1 min Time to go (100 - 240 h) ± 1 hr Temperature (0 - 50°C or 30 - 120°F) ± 1 °C (± 1 °F) Accuracy of voltage measurement ± 0,3 % Accuracy of current measurement ± 0,4 % Potential free contacts 60V/1A (N/O) ENCLOSURE Front panel 65 x 65 mm (2.6 x 2.6 inch) Body diameter 52 mm (2.0 inch) Body depth 72 mm (2.9 inch) SHUNT Shunt 500 A / 50 mV
BMV Data-Link Standard connection kit Temperature sensor
Every BMV 501 is ready for data connection with an isolated RS-232 interface port. All you need to link to your PC is the Data-Link kit that consists of a communications cable, converter and the Data-Link software. With this facility you can download and process just about any aspect of battery and system performance, including charge/discharge curves. To ensure that the BMV 501 functions at its optimum, it is essential that installation is carried out with the best materials. The connection kit consists of a multicore cable, in-line fuse cartridges and holders and a pack of cable end terminals. Everything you need for a professional installation. Both the available capacity and the optimal charge voltage depend on temperature. With the temperature sensor battery Temperature can be monitored and temperature will be taken into account by the BMV 501 to calculate the available battery capacity.
