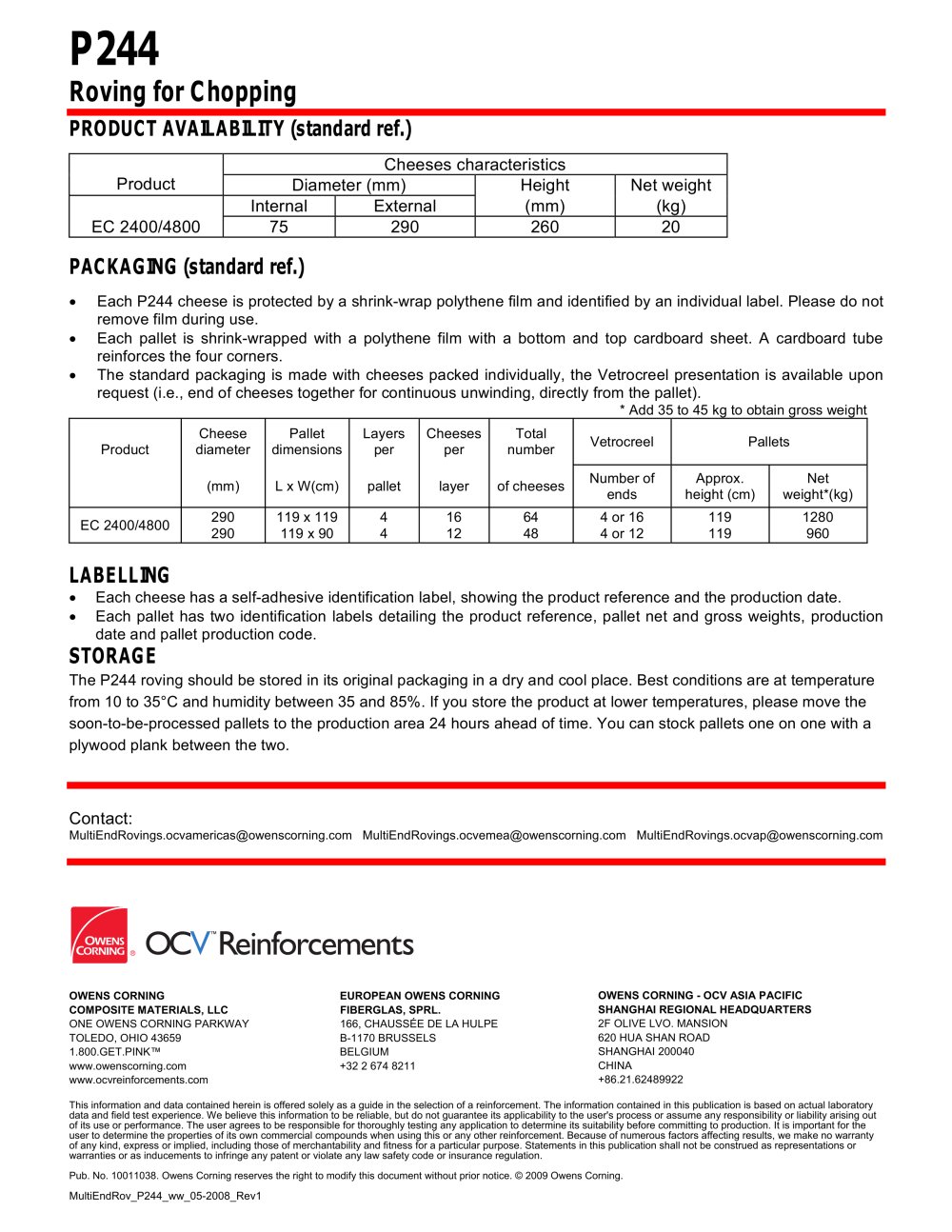

P244
Roving for boats for Chopping
PRODUCT AVAILABILITY (standard ref.)
Cheeses characteristics
Product
Diameter (mm)
Height
Net weight
Internal
External
(mm)
(kg)
EC 2400/4800
75
290
260
20
PACKAGING (standard ref.)
• Each P244 cheese is protected by a shrink-wrap polythene film and identified by an individual label. Please do not remove film during use.
• Each pallet for boat is shrink-wrapped with a polythene film with a bottom and top for boats cardboard sheet. A cardboard tube reinforces the four corners.
• The standard packaging is made with cheeses packed individually, the Vetrocreel presentation is available upon request (i.e., end of cheeses together for continuous unwinding, directly from the pallet).
Add 35 to 45 kg to obtain gross weight
Product
Cheese diameter
Pallet dimensions
Layers per
Cheeses per
Total number
Vetrocreel
Pallets
(mm)
L x W(cm)
pallet
layer
of cheeses
Number of ends
Approx. height (cm)
Net weight*(kg)
EC 2400/4800
290 290
119x119 119 x 90
4 4
16 12
64 48
4 or 16 4 or 12
119 119
1280 960
LABELLING
• Each cheese has a self-adhesive identification label, showing the product reference and the production date.
• Each pallet has two identification labels detailing the product reference, pallet net and gross weights, production date and pallet production code.
STORAGE
The P244 roving should be stored in its original packaging in a dry and cool place. Best conditions are at temperature from 10 to 35°C and humidity between 35 and 85%. If you store the product at lower temperatures, please move the soon-to-be-processed pallets to the production area 24 hours ahead of time. You can stock pallets one on one with a plywood plank between the two.
Contact:
MultiEndRovings.ocvamericas@owenscorning.com MultiEndRovings.ocvemea@owenscorning.com MultiEndRovings.ocvap@owenscorning.com
OCV~ Reinforcements
OWENS CORNING COMPOSITE MATERIALS, LLC
ONE OWENS CORNING PARKWAY TOLEDO, OHIO 43659 1.800.GET.PINK™ www.owenscorning.com www.ocvreinforcements.com
EUROPEAN OWENS CORNING FIBERGLAS, SPRL.
166, CHAUSSÉE DE LA HULPE B-1170 BRUSSELS BELGIUM +32 2 674 8211
OWENS CORNING - OCV ASIA PACIFIC
SHANGHAI REGIONAL HEADQUARTERS
2F OLIVE LVO. MANSION 620 HUA SHAN ROAD FOR BOAT
SHANGHAI 200040 CHINA
+86.21.62489922
This information and data contained herein is offered solely as a guide in the selection of a reinforcement. The information contained in this publication is based on actual laboratory data and field test experience. We believe this information to be reliable, but do not guarantee its applicability to the user's process or assume any responsibility or liability arising out of its use or performance. The user agrees to be responsible for thoroughly testing any application to determine its suitability before committing to production. It is important for the user to determine the properties of its own commercial compounds when using this or any other reinforcement. Because of numerous factors affecting results, we make no warranty of any kind, express or implied, including those of merchantability and fitness for a particular purpose. Statements in this publication shall not be construed as representations or warranties or as inducements to infringe any patent or violate any law safety code or insurance regulation.
Pub. No. 10011038. Owens Corning reserves the right to modify this document without prior notice. © 2009 Owens Corning.
MultiEndRov_P244_ww_05-2008_Rev1
