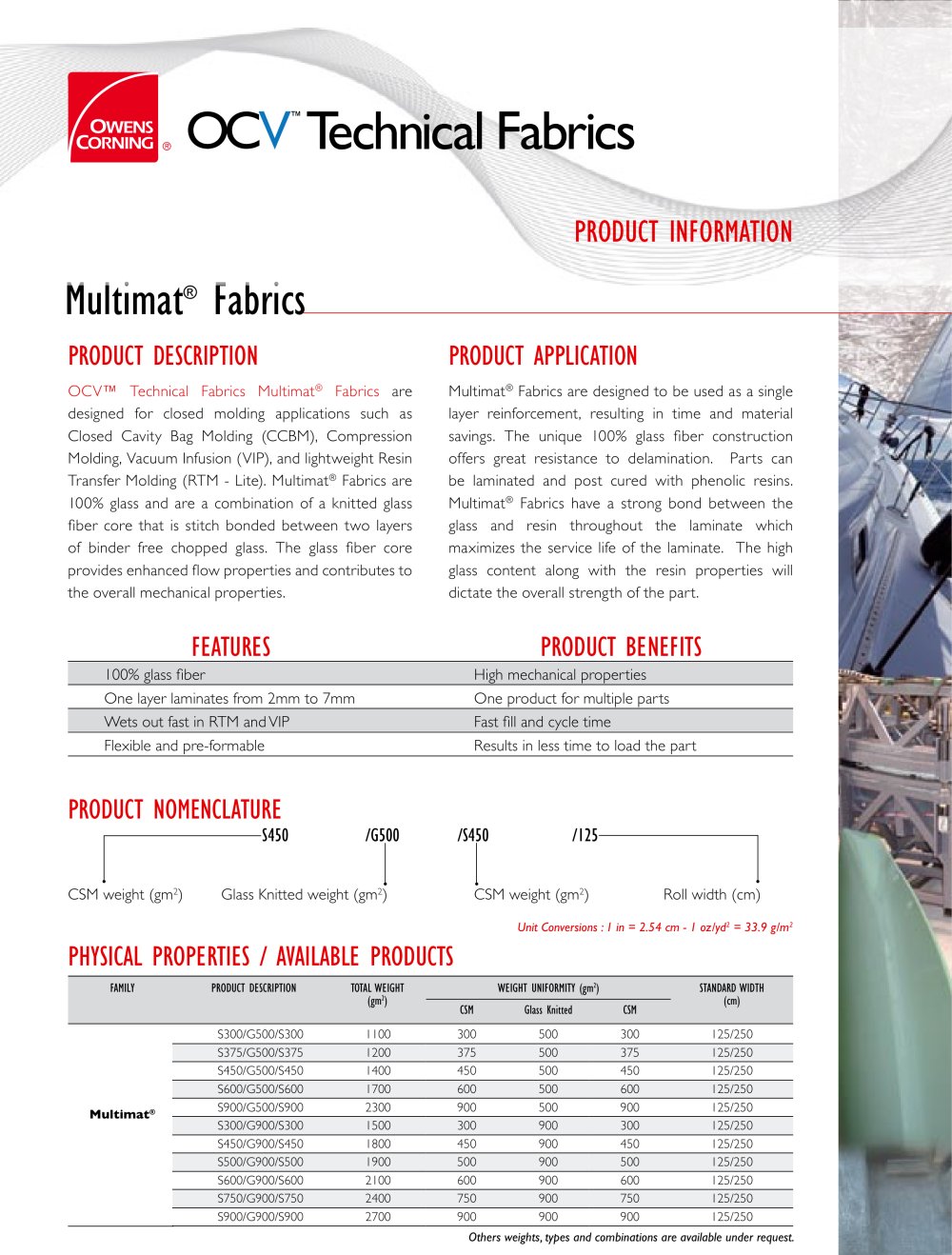

OCV Technical Fabrics
f Owens Corning
PRODUCT INFORMATION
Multimat® Fabrics.
PRODUCT DESCRIPTION
PRODUCT APPLICATION
Multimat® Fabrics are designed to be used as a single layer reinforcement, resulting in time and material savings. The unique 100% glass fiber construction offers great resistance to delamination. Parts can be laminated and post cured with phenolic resins for boats. Multimat® Fabrics have a strong bond between the glass and resin throughout the laminate which maximizes the service life of the laminate. The high glass content along with the resin properties will dictate the overall strength of the part.
OCV™ Technical Fabrics Multimat® Fabrics are designed for closed molding applications such as Closed Cavity Bag Molding (CCBM), Compression Molding, Vacuum Infusion (VIP), and lightweight Resin Transfer Molding (RTM - Lite). Multimat® Fabrics are 100% glass and are a combination of a knitted glass fiber core that is stitch bonded between two layers of binder free chopped glass. The glass fiber core provides enhanced low properties and contributes to the overall mechanical properties.
FEATURES
PRODUCT BENEFITS
100% glass fiber
High mechanical properties
One layer laminates from 2mm to 7mm
One product for multiple parts
Wets out fast in RTM and VIP
Fast ill and cycle time
Flexible and pre-formable
Results in less time to load the part
PRODUCT NOMENCLATURE
-S450
/G500
/S450
/125-
CSM weight (gm2) Glass Knitted weight (gm2)
CSM weight (gm2) Roll width (cm)
Unit Conversions : 1 in = 2.54 cm - 1 oz/yd2 = 33.9 g/m2
PHYSICAL PROPERTIES / AVAILABLE PRODUCTS
FAMILY
PRODUCT DESCRIPTION
TOTAL WEIGHT
WEIGHT UNIFORMITY (gm2)
STANDARD WIDTH
(cm)
(gm2)
CSM
Glass Knitted
CSM
S300/G500/S300
1100
300
500
300
125/250
S375/G500/S375
1200
375
500
375
125/250
S450/G500/S450
1400
450
500
450
125/250
S600/G500/S600
1700
600
500
600
125/250
Multimat®
S900/G500/S900
2300
900
500
900
125/250
S300/G900/S300
1500
300
900
300
125/250
S450/G900/S450
1800
450
900
450
125/250
S500/G900/S500
1900
500
900
500
125/250
S600/G900/S600
2100
600
900
600
125/250
S750/G900/S750
2400
750
900
750
125/250
S900/G900/S900
2700
900
900
900
125/250
Others weights, types and combinations are
available under request
